HCD-GRX80/RXD8/RXD8S
7-7.
SCHEMA
TIC DIA

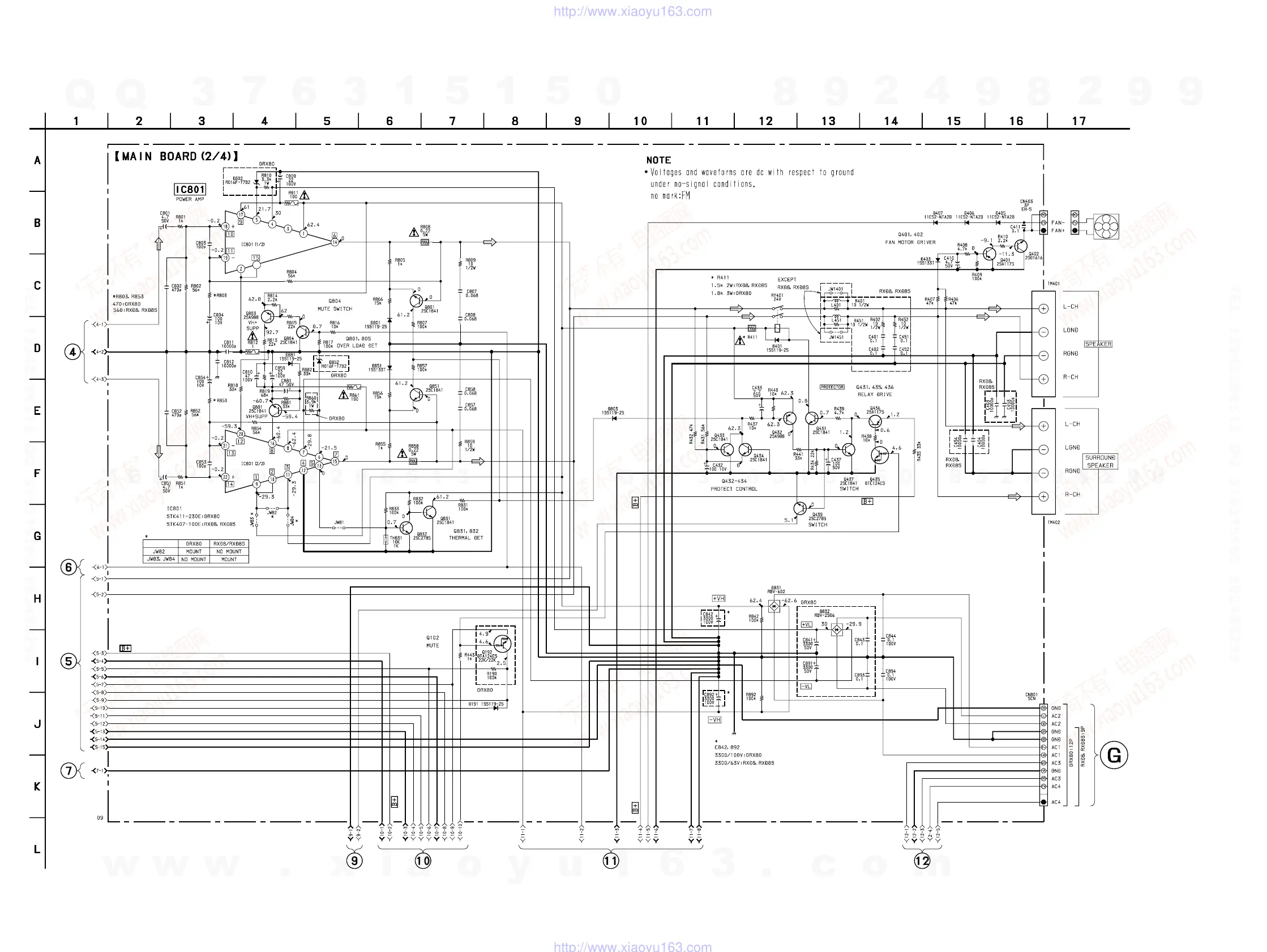

GRAM – MAIN (2/4) SECTION –
• See page 35 for Printed
Wiring Board.
– 39 –
– 40 –
(Page
38)
(Page
42)
(Page
38)
(Page
42)
(Page 43)
(Page 43)
(Page 44)
(Page 44)
(Page 63)
