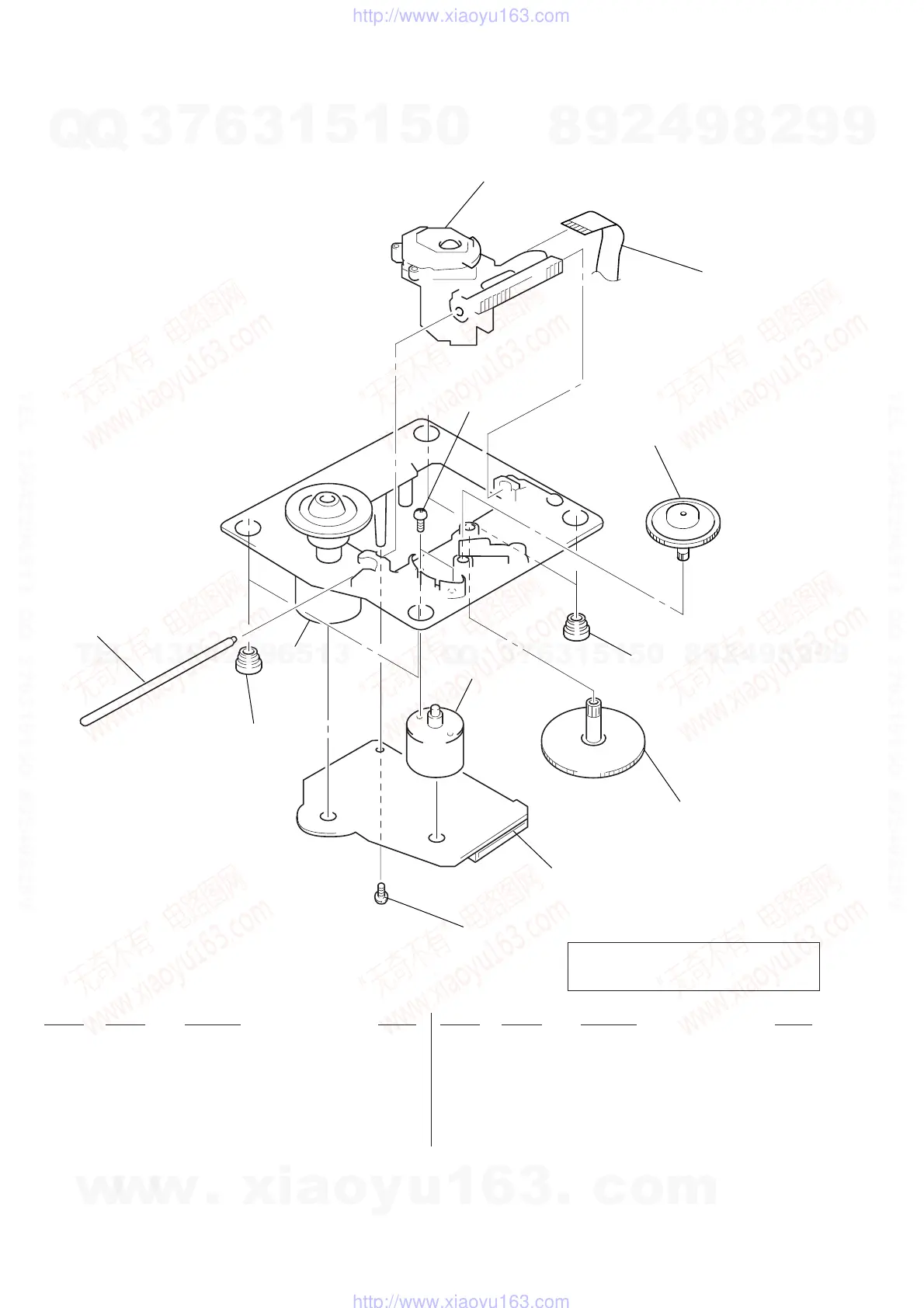

8-6. BASE UNIT SECTION (BU-5BD32L)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP
302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
303 4-917-567-01 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4724-486-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6X8), +BVTP
309 3-713-786-51 SCREW +P 2X3
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
