– 75 –

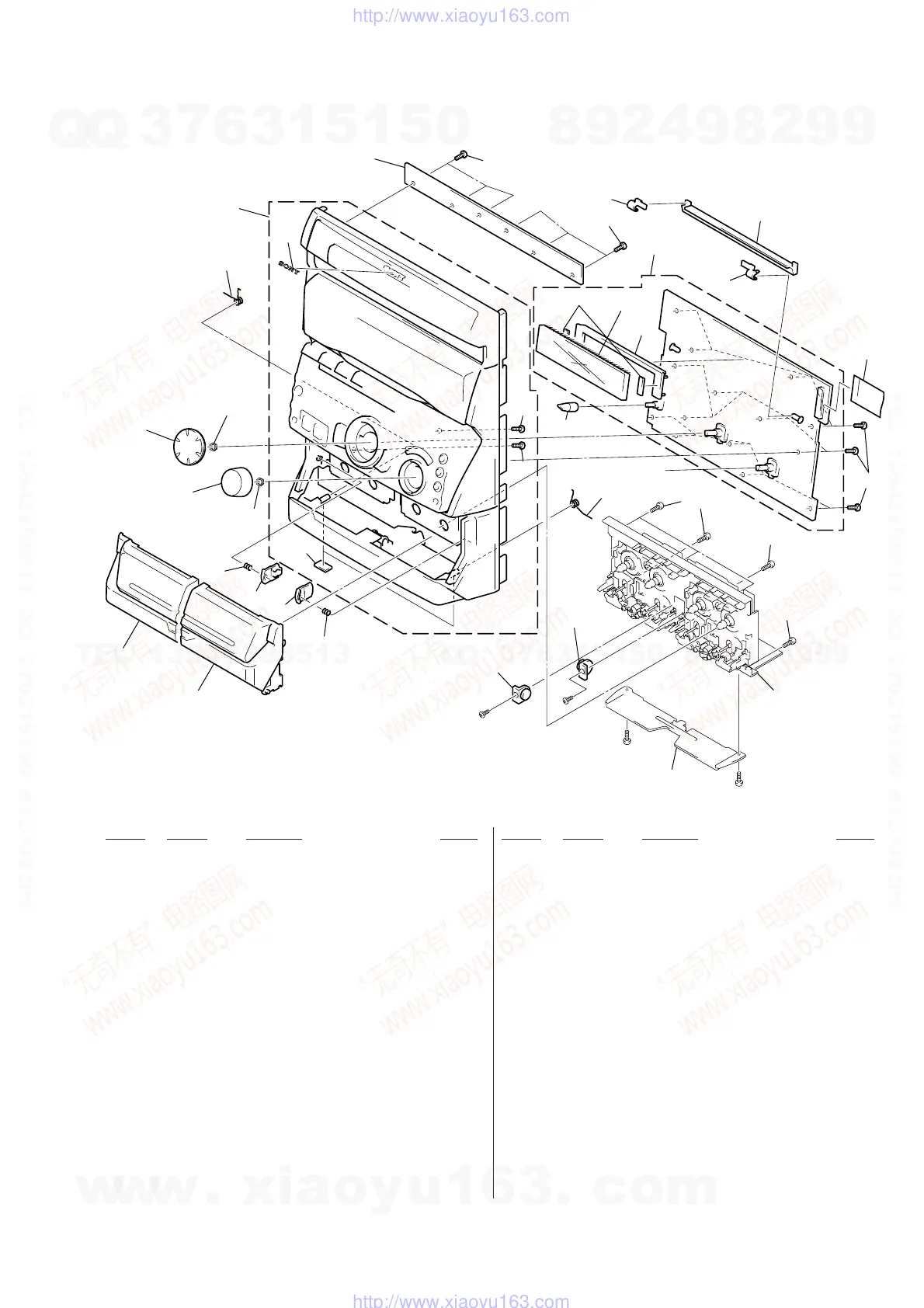

8-3. FRONT PANEL SECTION
109
109
109
123
115
FL601
not supplied
not supplied
109
109
109
110
110
#5
Supplied with
S601
Supplied with
S602
#5
#11
#11
TCM230AWR1
TCM230PWR1
105
105
106
108
112
113
107
101
103
104
111
102
114
118
121
116
117
119
109
109
120
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-4950-697-1 HOLDER (L) ASSY, CASSETTE (SILVER)
101 X-4950-976-1 HOLDER (L) ASSY, CASSETTE (GRAY)
102 X-4950-698-1 HOLDER (R) ASSY, CASSETTE (SILVER)
102 X-4950-977-1 HOLDER (R) ASSY, CASSETTE (GRAY)
103 4-214-760-11 CATCHER (A), PUSH
104 4-214-761-11 CATCHER (B), PUSH
105 4-214-775-11 SPRING, PUSH CATCHER RETURN
106 4-214-383-11 KNOB (JOG)(SILVER)
106 4-214-383-51 KNOB (JOG)(GRAY)
107 4-214-384-11 KNOB (VOL)(SILVER)
107 4-214-384-51 KNOB (VOL)(GRAY)
1084-214-447-11SPRING, TENSION
109 4-951-620-01 SCREW (2.6X8), +BVTP
110 4-210-045-02 DAMPER
111 4-988-663-01 FOOT (FELT)
112 4-962-708-71 EMBLEM (4-A), SONY
113 X-4950-696-1 PANEL ASSY, FRONT
(GRX80:E2,SP,AR,TW,MX,AUS,EA4,TH)(SILVER)
113 X-4950-701-1 PANEL ASSY, FRONT (GRX80:EA3)(GRAY)
113 X-4950-706-1 PANEL ASSY, FRONT (RXD8/RXD8S)
113 X-4950-980-1 PANEL ASSY, FRONT (GRX80:E3)(GRAY)
* 114 A-4417-663-A CD SW BOARD, COMPLETE
115 4-214-385-11 KNOB (MIC)(SILVER)
115 4-214-385-51 KNOB (MIC)(GRAY)
116 1-773-223-11 WIRE (FLAT TYPE)(25 CORE)
* 117 4-214-439-11 HOLDER, FL TUBE
* 118 A-4417-643-A PANEL BOARD, COMPLETE (RXD8/RXD8S)
* 118 A-4417-650-A PANEL BOARD, COMPLETE (GRX80:EA3)
* 118 A-4417-660-A PANEL BOARD, COMPLETE
(EXCEPT GRX80:EA3/RXD8/RXD8S)
* 119 4-214-736-11 HOLDER (L)(LED)
* 120 4-214-737-11 HOLDER (R)(LED)
* 121 4-214-738-11 INDICATOR (ILLUMINATION 1)
122 4-951-620-01 SCREW (2.6X8), +BVTP
123 4-214-446-11 SPRING, TENTION
FL601 1-517-831-11 INDICATOR TUBE, FLUORESCENT
Ver 1.1 2001.06
