– 73 –
SECTION 8

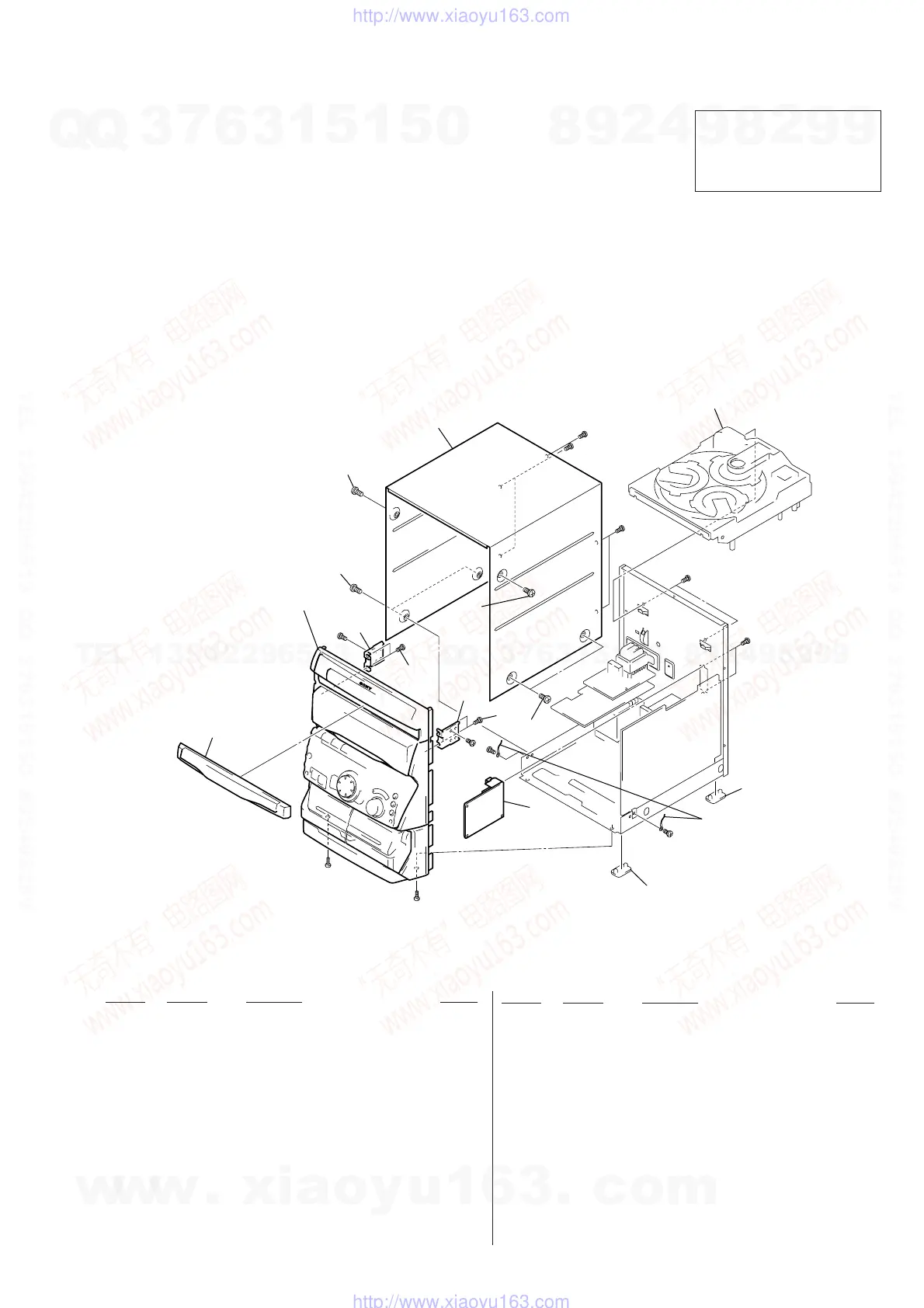

EXPLODED VIEWS
8-1. CASE SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
• Abbreviation
G : German model
EA3 : Saudi Arabia model
EA4 : Israel model
MX : Mexican model
E2 : Without SW tuner model
E3 : With SW tuner model
SP : Singapore model
TW : Taiwan model
AUS : Australian model
AR : Argentine model
TH : Thailand model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 1 4-996-716-01 HOLDER (CDM)
2 3-363-099-41 SCREW (CASE 3 TP2)(GRAY)
2 3-363-099-71 SCREW (CASE 3 TP2)(SILVER)
3 3-363-099-01 SCREW (CASE 3 TP2)(GRAY)
3 3-363-099-11 SCREW (CASE 3 TP2)(SILVER)
* 4 4-214-452-01 CASE (SILVER)
* 4 4-215-753-01 CASE (GRAY)
5 1-233-545-11 TUNER UNIT (EA4,TH)
5 1-233-545-14 ENCAPSULATED COMPONENT (E2,AR,MX,AUS)
4
2
2
3
1
7
6
6
1
3
5
#1
#2
#2
#2
#2
#1
CDM38LH-5BD32L
Front panel
#1
#1
#1
#1
#1
Including Panel board
(Ref No. 118)
not supplied
not supplied
5 1-233-546-13 ENCAPSULATED COMPONENT (E3,EA3,SP,TW)
5 1-693-443-11 TUNER UNIT (AEP,UK,G,CIS)
6 4-951-620-01 SCREW (2.6x8), +BVTP
7 X-4950-953-1 PANEL ASSY, LOADING (RXD8S)
7 X-4950-978-1 PANEL ASSY, LOADING (GRX80)(SILVER)
7 X-4950-979-1 PANEL ASSY, LOADING (GRX80)(GRAY)
7 X-4950-981-1 PANEL ASSY, LOADING (RXD8)
