HCD-GRX80/RXD8/RXD8S
– 67 – – 68 –

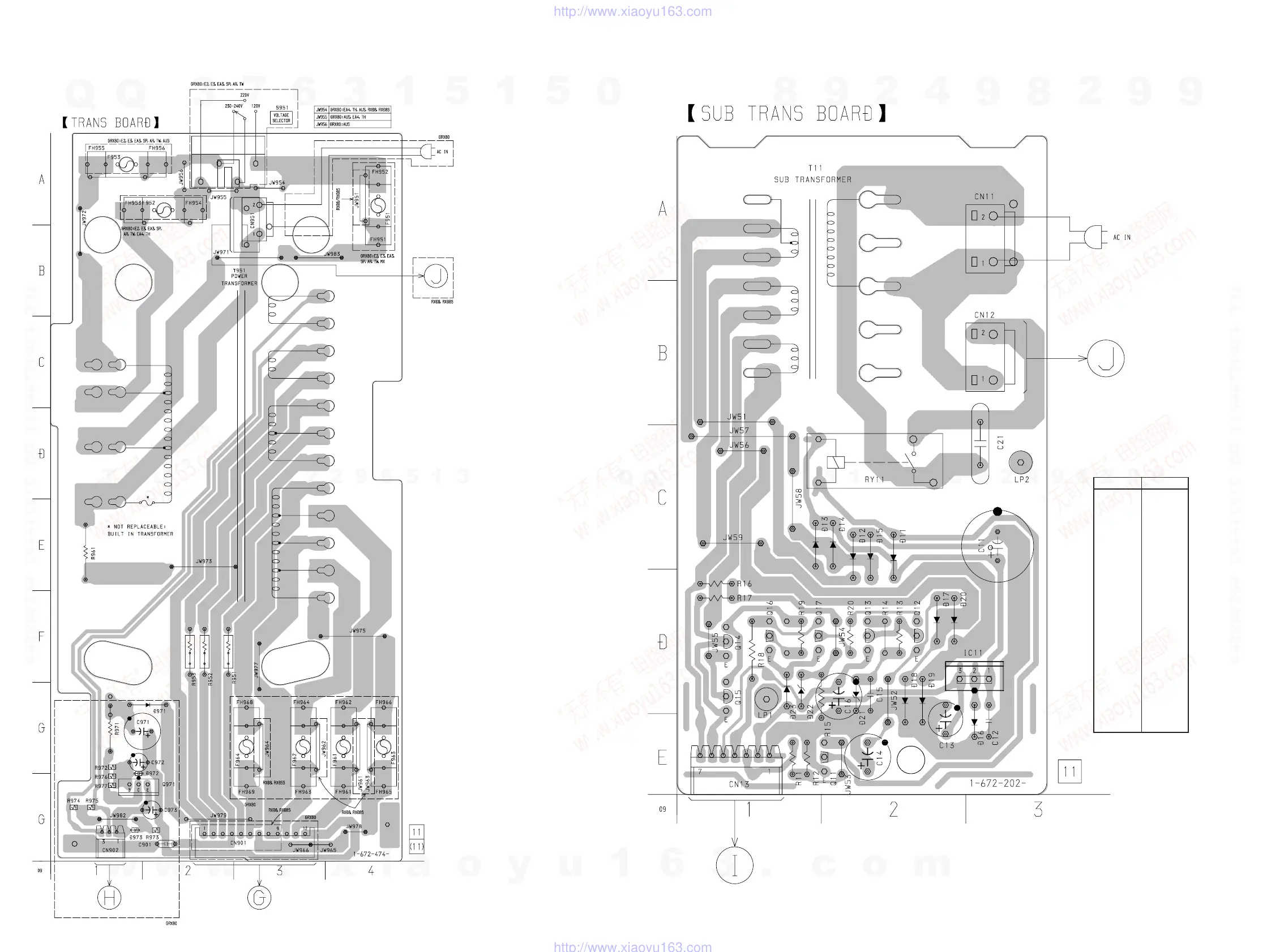

7-22. PRINTED WIRING BOARD – TRANS SECTION –
• See page 18 for Circuit Boards Location.
7-23. PRINTED WIRING BOARD – SUB TRANS SECTION – (RXD8/RXD8S ONLY)
• See page 18 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D11 C-2
D12 C-2
D13 C-2
D14 C-2
D15 C-2
D16 E-3
D17 D-2
D18 D-2
D19 D-2
D20 D-2
D21 D-2
D22 D-1
D23 D-1
IC11 D-3
Q11 D-2
Q12 D-2
Q13 D-2
Q14 D-1
Q15 D-1
Q16 D-1
Q17 D-1
(Page 35)
(Page 67)
(Page 68)
(Page 35)
(Page 35)
