Sony HCD-S550 - 8 Exploded Views; General Section

102
HCD-S550/S880

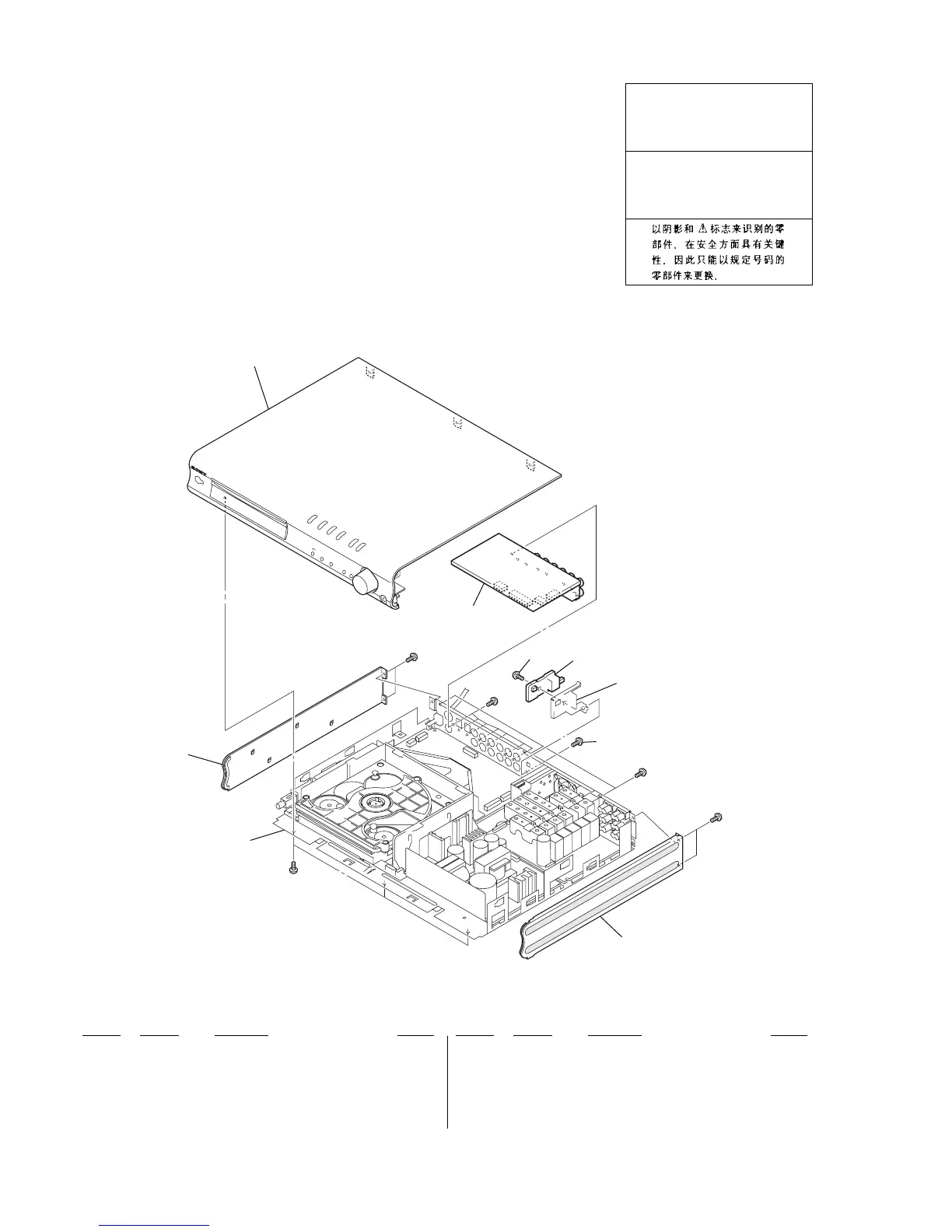

8-1. GENERAL SECTION
SECTION 8
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
AUS: Australian model
CH : Chinese model
CIS : Russian model
EA : Soudi Arabia model
HK : Hong Kong model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-240-394-01 SIDE PANEL (L)
2 4-240-395-01 SIDE PANEL (R)
3 A-4676-939-A I/O BOARD, COMPLETE (S550: AEP, UK, CIS)
3 A-4729-045-A I/O BOARD, COMPLETE (S880: AEP, UK, CIS)
3 A-4729-906-A I/O BOARD, COMPLETE
(E32, AUS, EA, HK, MX, SP, MY, TW)
3 A-4730-166-A I/O BOARD, COMPLETE (KR)
3 A-4731-092-A I/O BOARD, COMPLETE (CH)
4 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
1
2
4
4
3
#1
#1
#1
#1
front panel section-1
chassis section-1
not supplied
(SEL board)
not supplied
#1
KR : Korean model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
TW : Taiwan model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
