Sony HCD-S550 - Mechanism Deck Section-3 (CDM72 A-DVBU12)

111
HCD-S550/S880

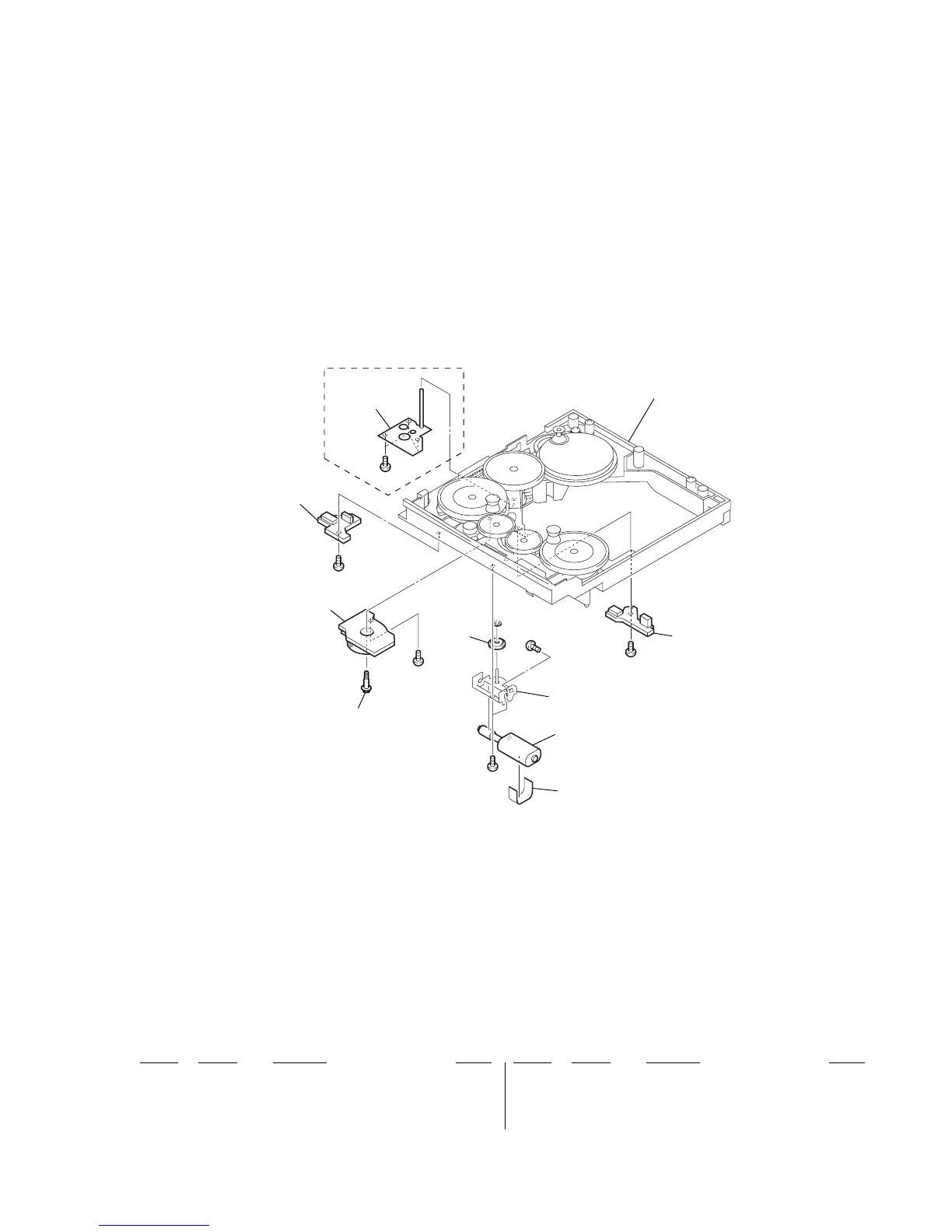

8-10. MECHANISM DECK SECTION-3
(CDM72A-DVBU12)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
451 4-239-618-01 SCREW (+PWH,2X6), STEP TAPPING
452 4-240-200-01 GEAR (L1)
* 453 3-344-749-01 RETAINER (B)
M711 A-4746-746-A MOTOR (LD) ASSY (LOADING)
#4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
#6 7-623-921-01 RING, RETAINING, CAPSTAN
#7 7-627-853-28 SCREW, PRECISION +P 2X3 TYPE3
#8 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
451
452
453
not supplied
not supplied
M711
#4
#4
#4
#4
#8
#6
#7
not supplied
(encoder board)
not supplied
(SW board)
not supplied
(D sensor board
)
mechanism deck section-4
S880
