Sony HCD-S550 - Pulley (RTR) Assy; Belt (CK)

HCD-S550/S880
16

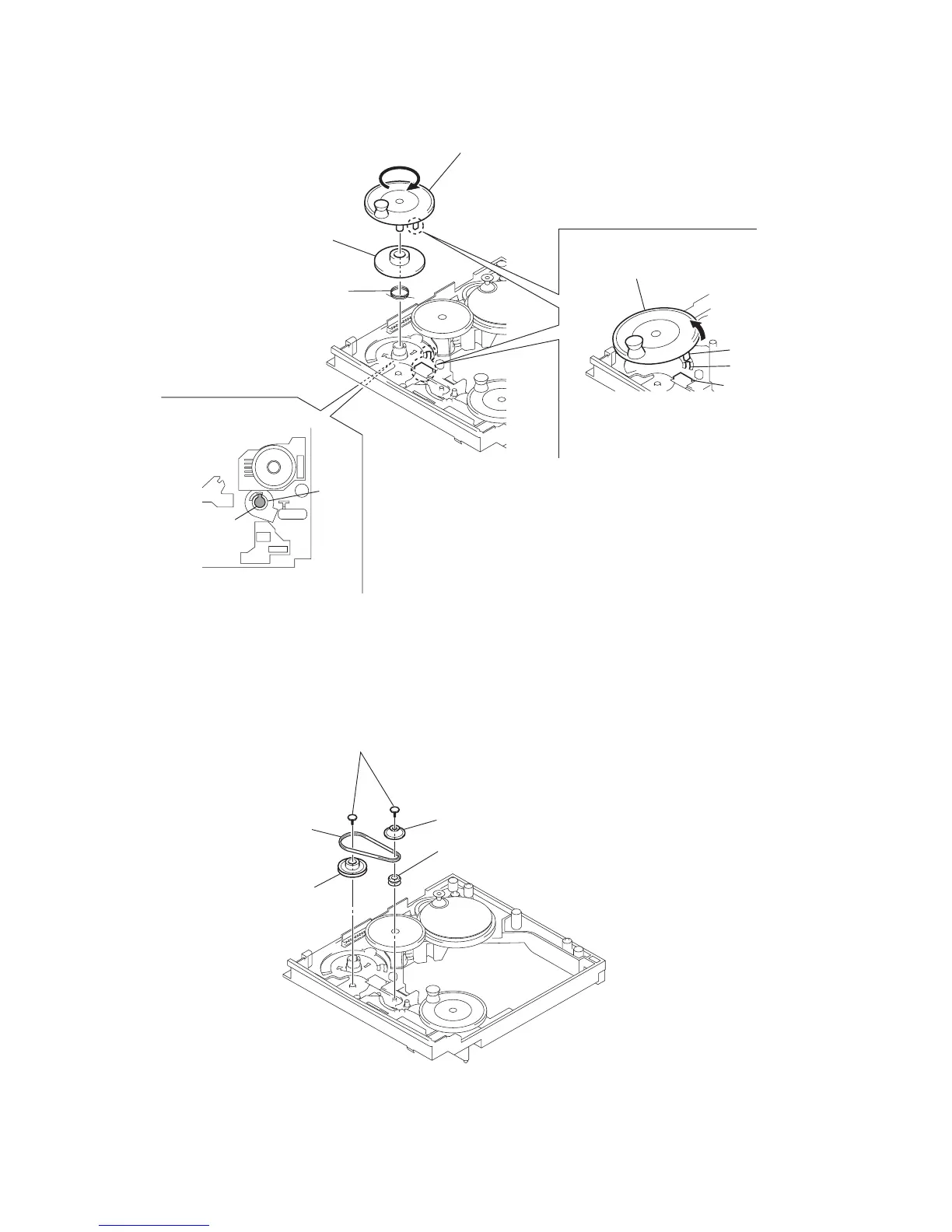

3-14. PULLEY (RTR) ASSY
3-15. BELT (CK)
3 belt (CK)
1 two bushings
(CDM72)
2 gear (L5)
4 pulley (L5)
5 pulley (LCG)
2 gear (L4)
A
B
1 Rotate the pulley (RTR) assy in the direction of arrow A
to disengage the shaft of the pulley (RTR) assy from
the hole of the chassis (refer to fig. 1), and remove it.
pulley (RTR) assy
boss
claw
connector
Tilting the pulley (RTR) assy in the direction
of arrow B , move it over the claw and
the connector of the chassis.
3 torsion spring
(L)
hole
shaft
(pulley (RTR) assy)
front
– bottom view –
fig. 1
