Sony HCD-V515 - Printed Wiring Board - POWER AMP Section

HCD-V515
– 24 –

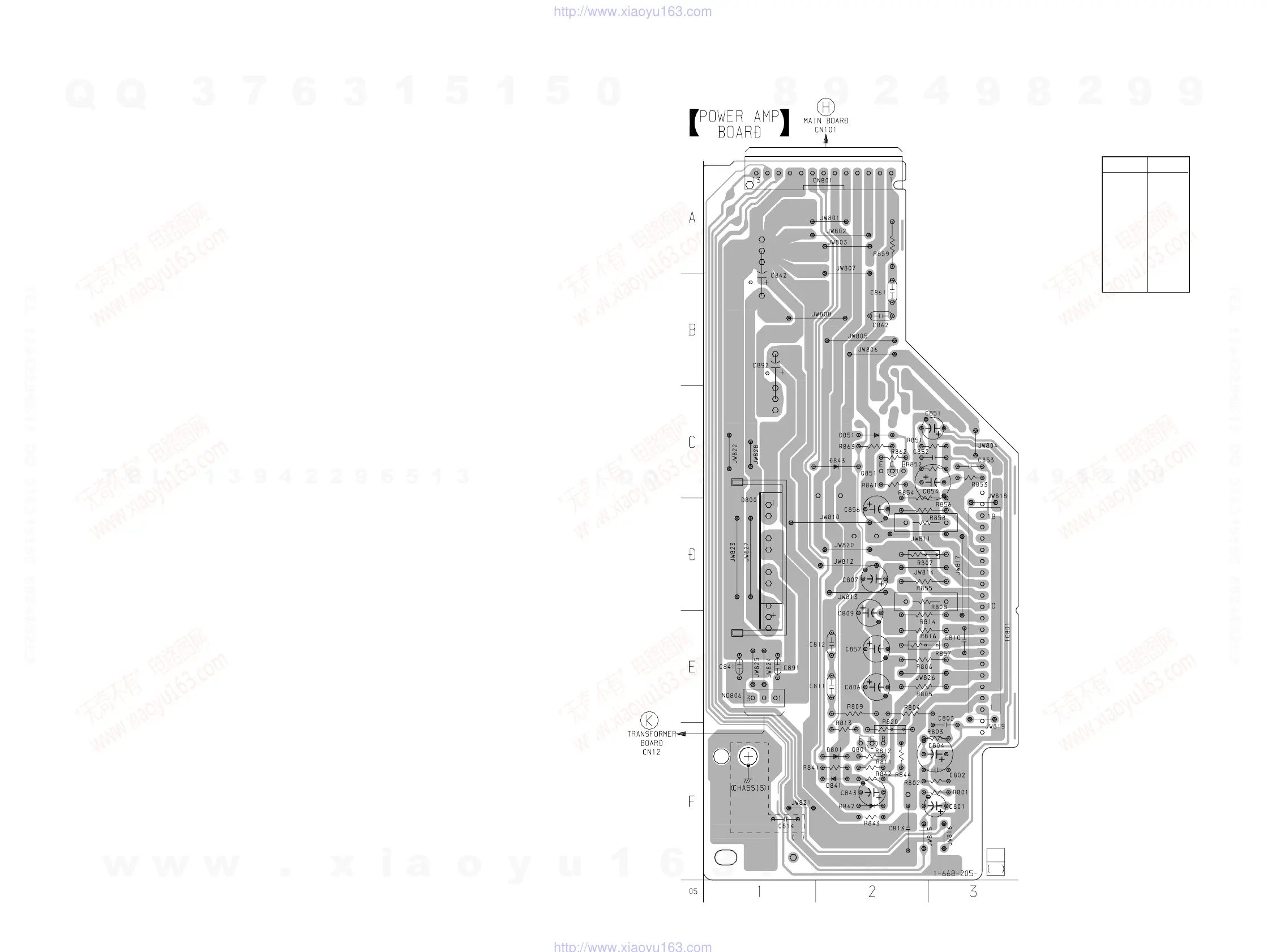

3-9. PRINTED WIRING BOARD – POWER AMP Section –
• Semiconductor
Location
Ref. No. Location
D800 D-1
D801 F-2
D841 F-2
D842 F-2
D843 C-2
D851 C-2
IC801 E-3
Q801 F-2
Q851 C-2
HCD-V515
13
CH
11
(Page 27)
(Page 10)
