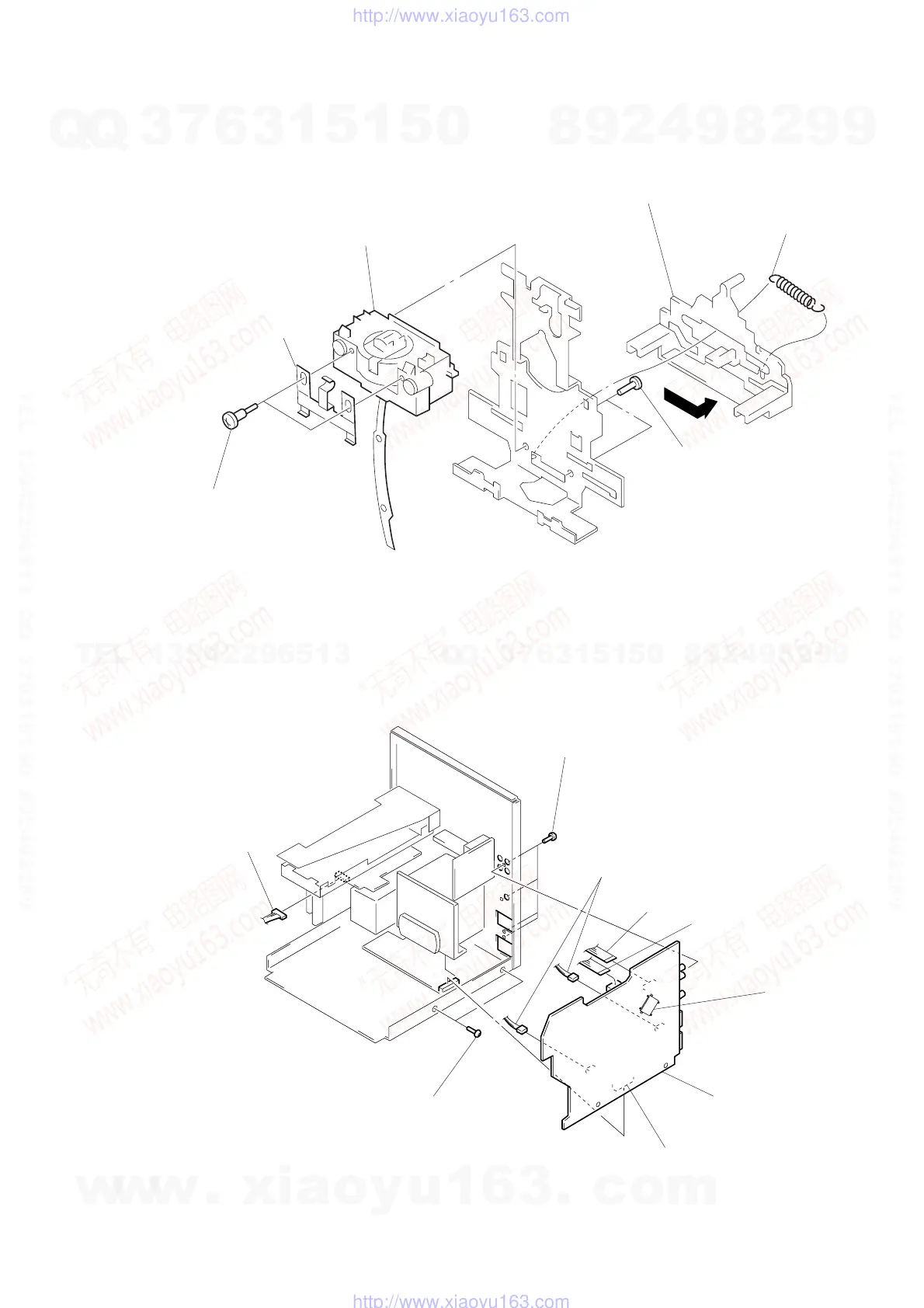

Sony HCD-V808 - MAGNETIC HEAD Assembly; MAIN BOARD Layout

– 15 –
1 connector
(CN901)
3 two screws
(BVTP 3
× 8)
4 connector
(CN101)
IC201
2 flat wire (15 core)
(CN201)
1 two connectors
(CN105, 106)
MAIN BOARD
3 four screws
(BVTP 3
× 8)
5 MAIN board
MAGNETIC HEAD
1 tension spring (1)
2 Removal the slider (REV slider)
to direction of the arrow.
3 two screws
(P 2
× 6)
4 magnetic head
5 two azimuth adjustment screws
6 azimuth adjustment spring
2 flat wire (13 core)
(CN202)
