Sony HCD-V808 - BELT Components; SLIDER (HEAD) ASSY Components

– 14 –

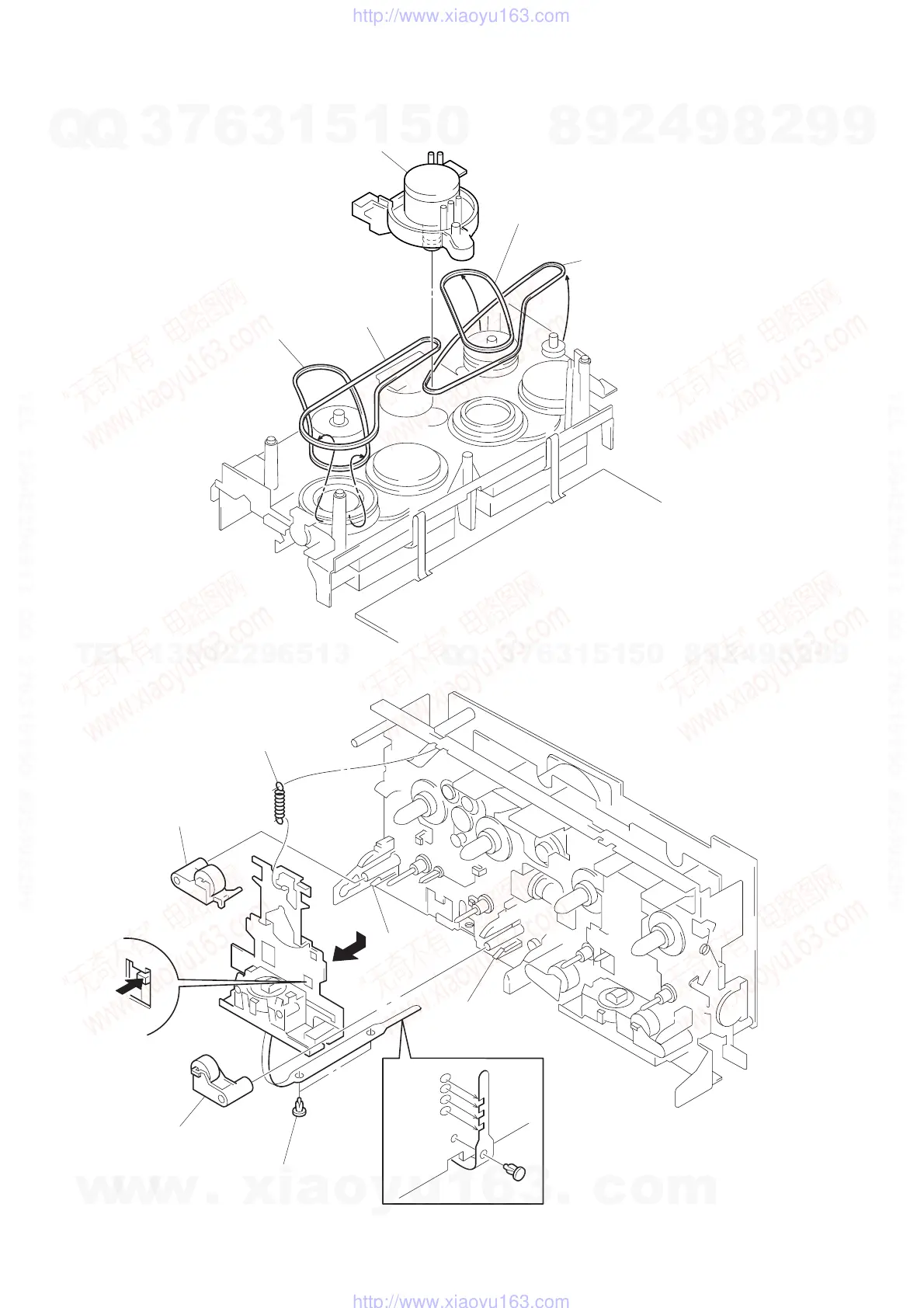

BELT
1 belt (FR)
2 belt A
3 belt B
4 belt (FR)
capstan motor
SLIDER (HEAD) ASS’Y
1 claw
2 pinch lever (REV) ass’y
3 tension spring
4 two clips
1 claw
A
2
pinch lever (FWD) ass’y
5 Break the soldering of
flexible flat cables.
