Sony HCD-V808 - CAPSTAN MOTOR (M1) Assembly

– 13 –

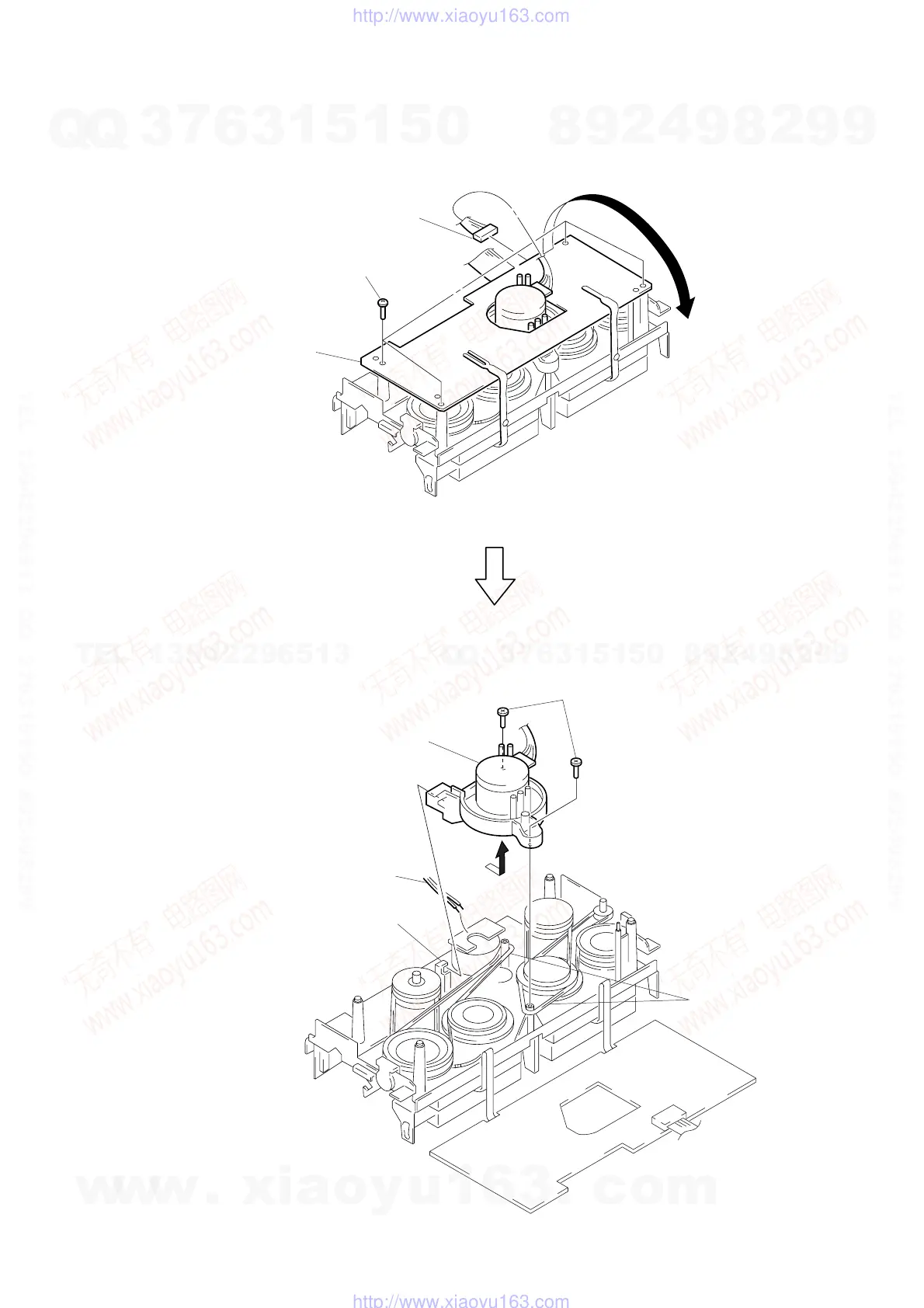

CAPSTAN MOTOR (M1)
1 connector
(CN651)
2 four screws
(BTP 2.6
× 4)
A
3
Removal the AUDIO board
to direction of the arrow
A .
4 Break the soldering
of motor lead.
5 two screws
(BTP 2.6
× 8)
6 claw
8 Hang the two belts.
7 Removal the capstan motor (M1)
to direction of the arrow
B .
B
