Sony HCD-V808 - FRONT PANEL SECTION Assembly; TAPE MECHANISM DECK SECTION (TCM-220 WR2) Assembly

– 12 –

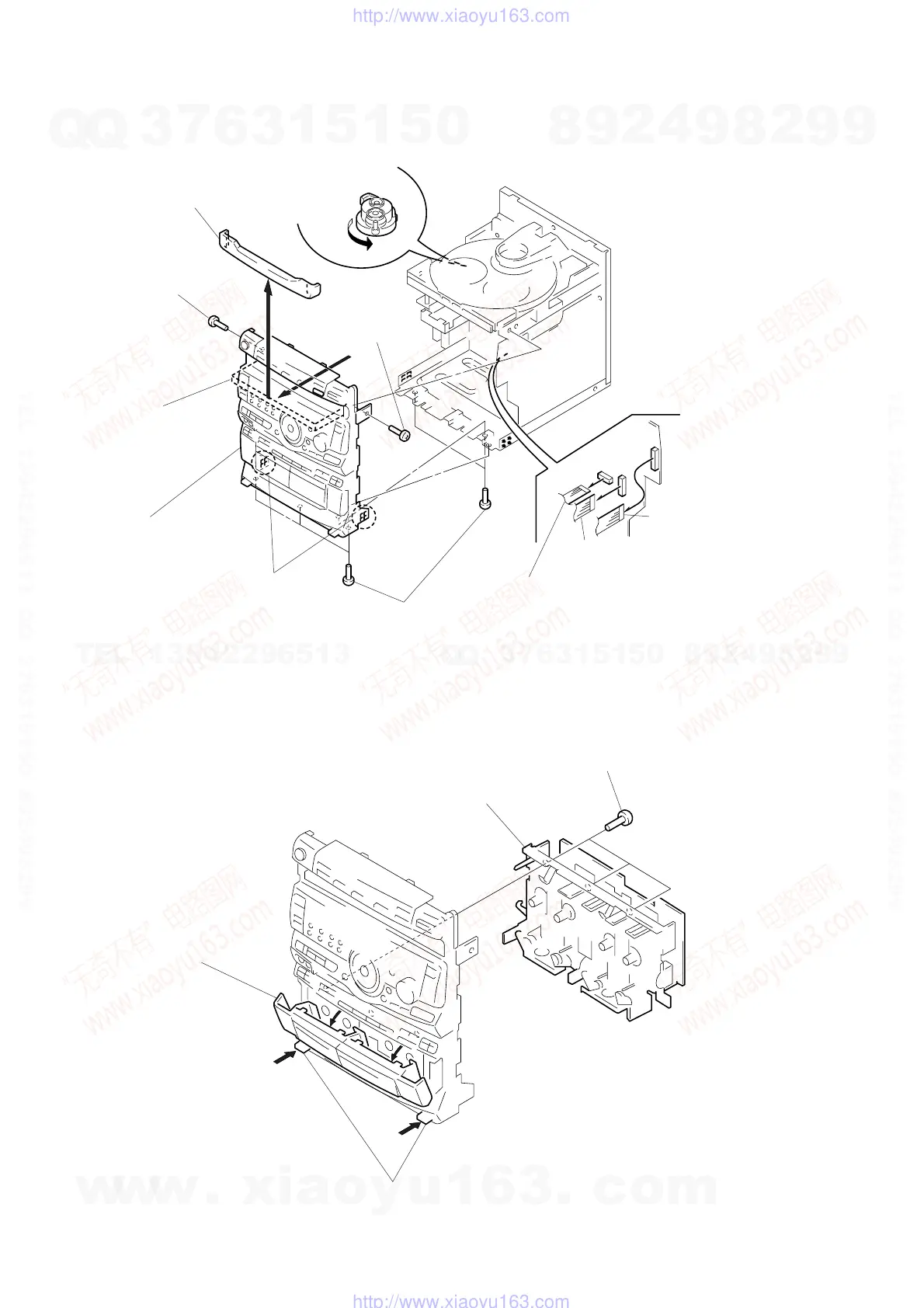

FRONT PANEL SECTION
3 loading panel
5 screw
(BVTP 3
× 10)
6 five screws
(BVTT 3
× 6)
7 two claws
8 front panel section
2 Pull the tray
1 Turn the cam to
direction of the
arrow
A .
A
5
screw
(BVTP 3
× 10)
TAPE MECHANISM DECK SECTION (TCM-220WR2)
2 Open the
cassette lids.
3 three screws
(BVTP 2.6
× 8)
4 tape mechanism deck
section
(TCM-220WR2)
1 Push the two buttons.
4 flat wire (21 core)
(CN205)
4 flat wire (17 core)
(CN102)
4 flat wire (11 core)
(CN206)
