4
SECTION 2
GENERAL

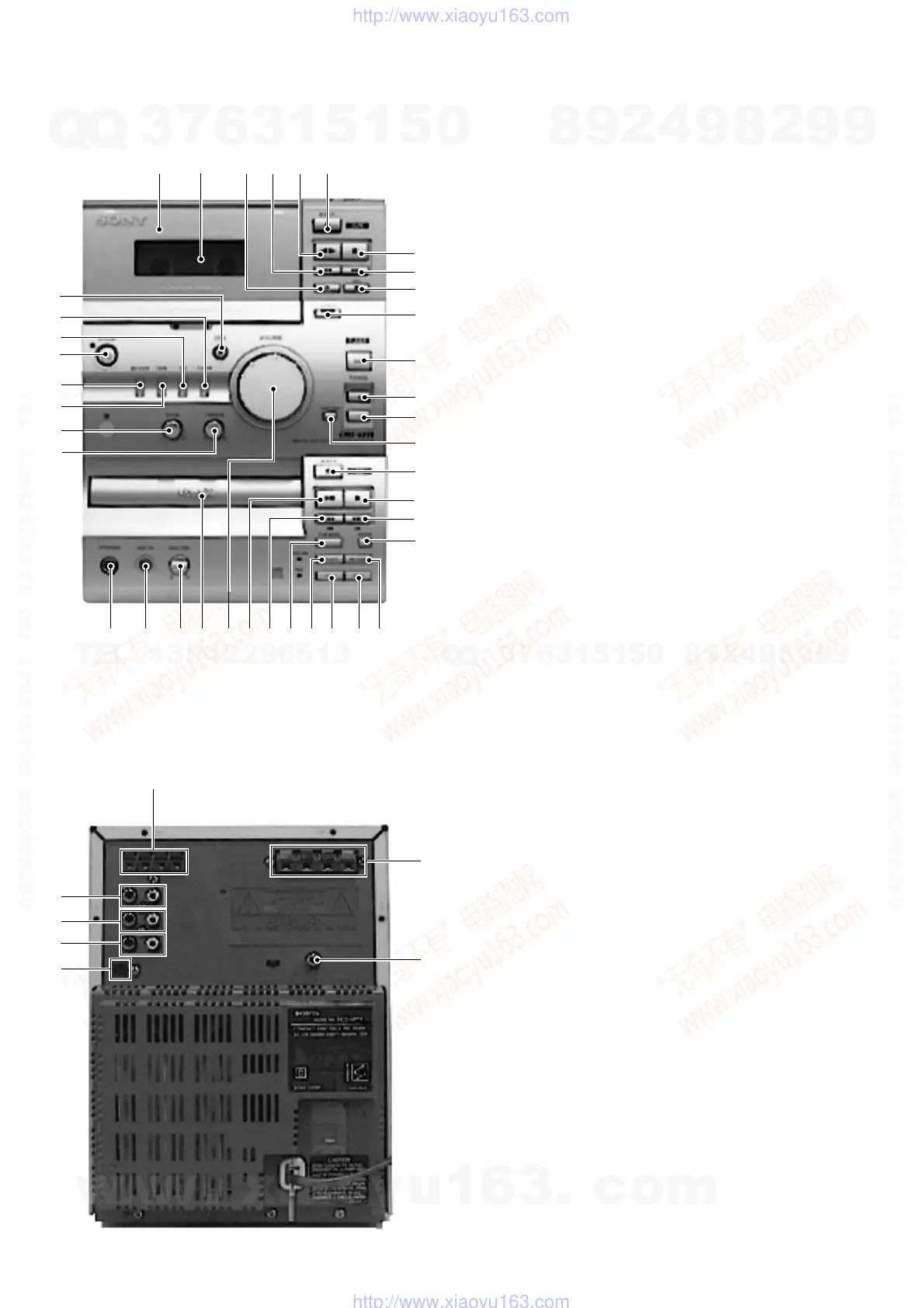

LOCATION OF CONTROLS
• Front View
1
2
6543
7
8
9
0
qa
qs
qd
qf
qg
qh
qj
qk
edese;wj
wh
wg
ws
wa
w;
ql
wd
wf
wk wl eh ej
ef eg
ea
ek
1 TAPE deck
2 Liquid crystal display
3 TAPE X button
4 TAPE m button
5 TAPE Y button
6 TAPE Z button
7 TAPE x button
8 TAPE M button
9 TAPE REC z button
0 CD SYNC button and indicator
qa BAND button
qs TUNING + button
qd TUNING – button
qf TUNING MODE button
qg CD EJECT Z button
qh CD x button
qj CD > button
qk CD REPEAT button
ql DSG button and indicator
w; TUNER button and indicator
wa CD button and indicator
ws STANDBY ?/1 button and indicator
wd MD/VIDEO button and indicator
wf TAPE button and indicator
wg BASS knob
wh TREBLE knob
wj PHONES jack
wk MIC IN jack
wl MIC VOL knob
e; CD disc tray
ea VOLUME knob
es CD u button
ed CD . button
ef CD PLAY MODE button
eg SELECT button
eh PREV button
ej RETURN button
ek NEXT button
1
2
3
5
4
6
7
1 ANTENNA terminals
2 SPEAKER terminals
3 VIDEO OUT jack
4 LINE OUT jacks
5 MD IN jacks
6 VIDEO IN jacks
7 CD DIGITAL OUT OPTICAL connector
• Rear View
