Sony HCD-VP11 - Cover; 3 Disassembly; Tape Mechanism Deck

6

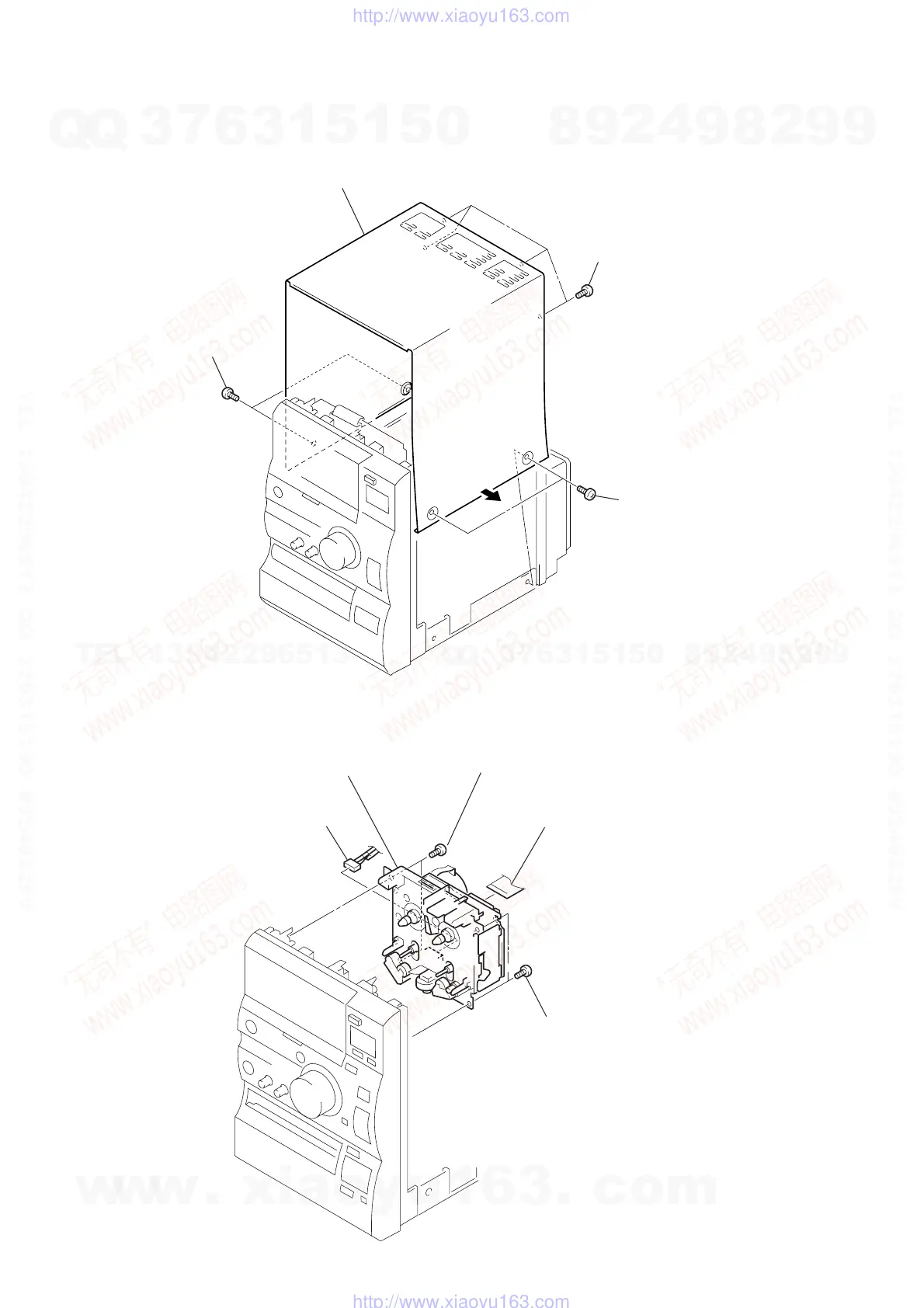

3-1. COVER (UPPER)
3-2. TAPE MECHANISM DECK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 Two screws
(case3 TP2)
4 Cover (upper)
2 Four screws
(BTP3
× 8)
3 Two screws
(case3 TP2
)
2 Connector
5 Tape
mechanism deck
1 Flat wire (12 core)
3 Two screws
(BTP3
× 8)
4 Two screw
s
(BTP3 × 8)
