Sony HCD-VP11 - Page 9

9

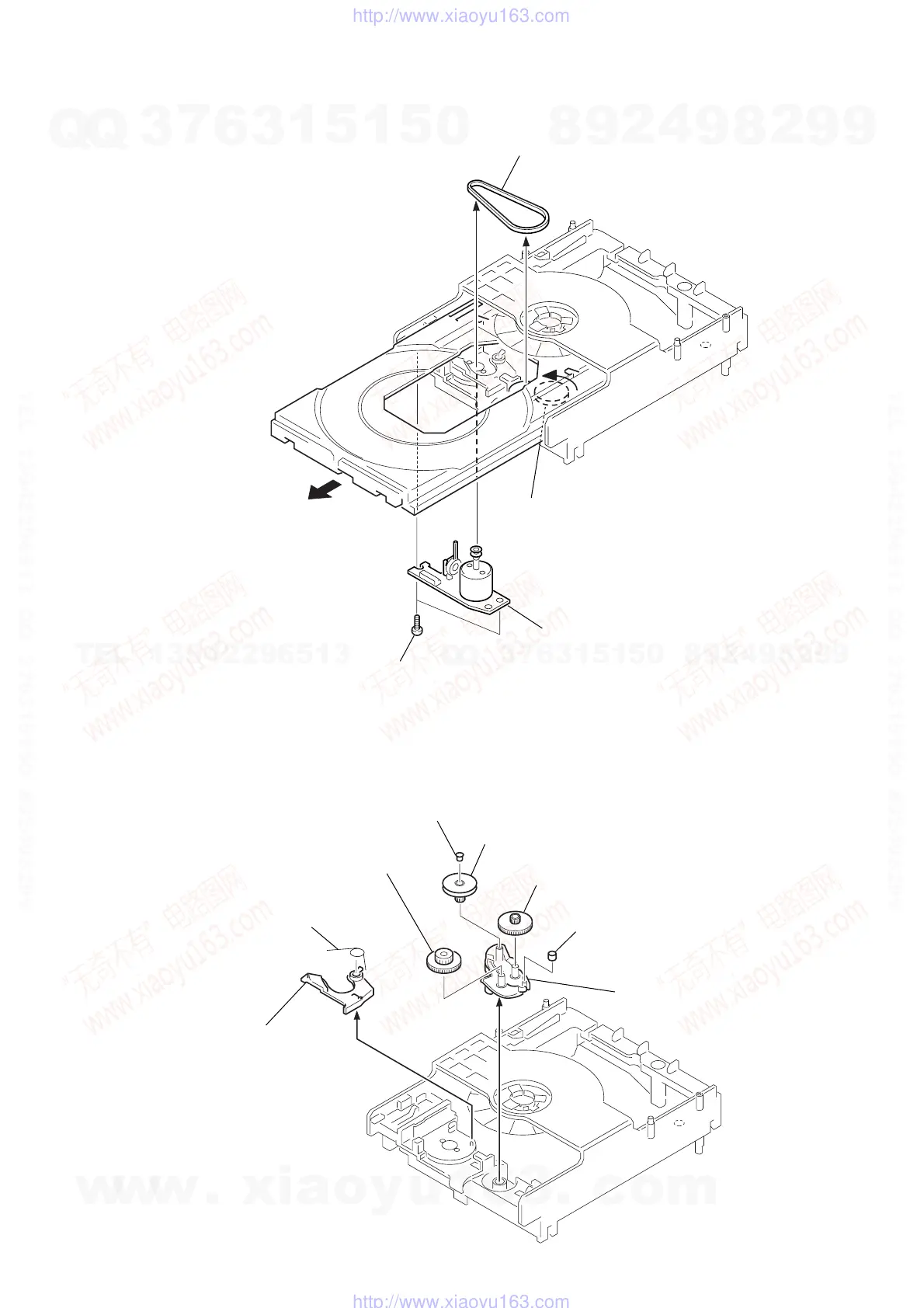

3-6. TRAY
4 Motor board
3 Two screws
2 Belt
1 Rotate the control cam in
the direction of arrow
A
5
Pull the tray
A
3-7. CAM
1 Torsion spring
2 SW lever
4 Pulley
5 Gear
6 Gear
7 Roller
8 Cam
3 Spacer (55)
