Sony HDC1550 - Page 17

1-9
HDC1000/V2 (J, E)

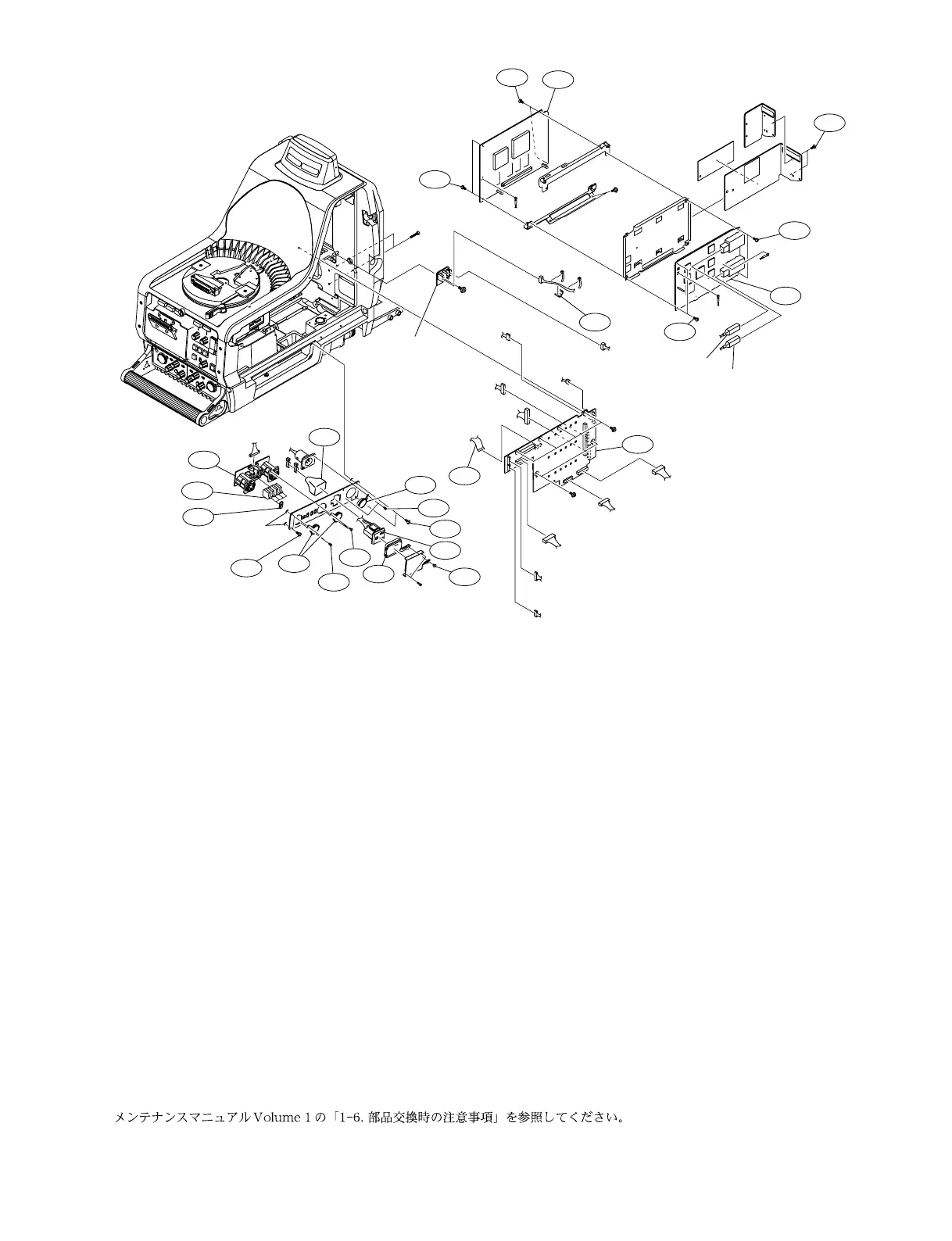

SDI Unit and Mother Board (HDC1000/1100)
No. Part No. SP Description
501 ! A-1099-252-B s MOUNTED CIRCUIT BOARD, SDI-84
502 ! A-1101-927-A s MOUNTED CIRCUIT BOARD, DPR-265
503 ! A-1124-078-A s MOUNTED CIRCUIT BOARD, CN-2606
504 ! * A-1166-187-A s MOUNTED CIRCUIT BOARD, MB-1060G (GOLD)
! * A-1124-080-A s MOUNTED CIRCUIT BOARD, MB-1060 (SILVER)
505 1-500-051-21 s BEAD, FERRITE (WITH CASE)
506 * 1-831-118-11 s CABLE, FLEXIBLE FLAT (30 CORE) (GOLD)
* 1-757-644-11 s CABLE, FLEXIBLE FLAT (30 CORE) (SILVER)
507 2-254-842-02 s COVER,SWITCH INSULATING
508 3-165-162-01 s SCREW(+P2.6X5)(TYPE 1) (ST)
509 3-186-500-02 s LID (N), OUTLET
510 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
511 3-694-825-11 s SCREW M3 STEP,SPECIAL HEAD ST
512 3-719-159-01 s SCREW (M3), (+ BW) (STEEL)
513 3-748-142-01 s COVER,CONNECTOR
514 3-796-985-02 s CUSHION,DROP PROTECTION
515 3-796-986-01 s KNOB,SLIDE SW
516 4-654-273-02 s ACE (M2), LOCK
517 1-819-791-11 s OUTLET, AC (3P) (HDC1000(UCJ,J)/1100(J))
1-251-221-11 s OUTLET, AC (HDC1000(CE))
7-621-772-40 s SCREW +B 2X8(EP-FE/ZNBK/CM2)
7-623-923-01 s WASHER,POLYETHYLENE 2.6
7-682-549-04 s SCREW +B3X10(EP-FE/CU,NI,CR)
7-682-553-04 s SCREW +B3X20(EP-FE/CU,NI,CR)
7-682-947-01 s SCREW +PSW 3X6
* :
* : Refer to Section 1-6. “Notes for Replacing Parts” of the Maintenance Manual volume 1.
W-2.6,
NYLON
W-2.6,
NYLON
B2 x 8
CN-2602
BOARD
PSW3 x 6
to MB-1060
(CN2)
To MB-1060
(CN11)
to TOP FAN
PSW3 x 6
GREEN
2
1
RED
BROWN
PSW3 x 6
PSW3 x 6
To LENS
To CN-2609
(CN2)
To CN-2602
(CN2)
To LE-291
(CN1)
To AT-166
(CN6)
To CN-2608
(CN2)
To SW REG.
To CN-2603
(CN1)
To CN-2606
(CN1)
To CN-2609
(CN3)
510
510
510
510
504
506
512
517
511
509
508
508
507
512
514
503
515
513
505
501
502
510
516
513
B3 x 10 or
B3 x 20
