Sony HDC1700 - Viewfinder Bracket and Cable Management; Attaching BKW-401 Viewfinder Bracket; Securing Camera Cable with Clamp Belt

14

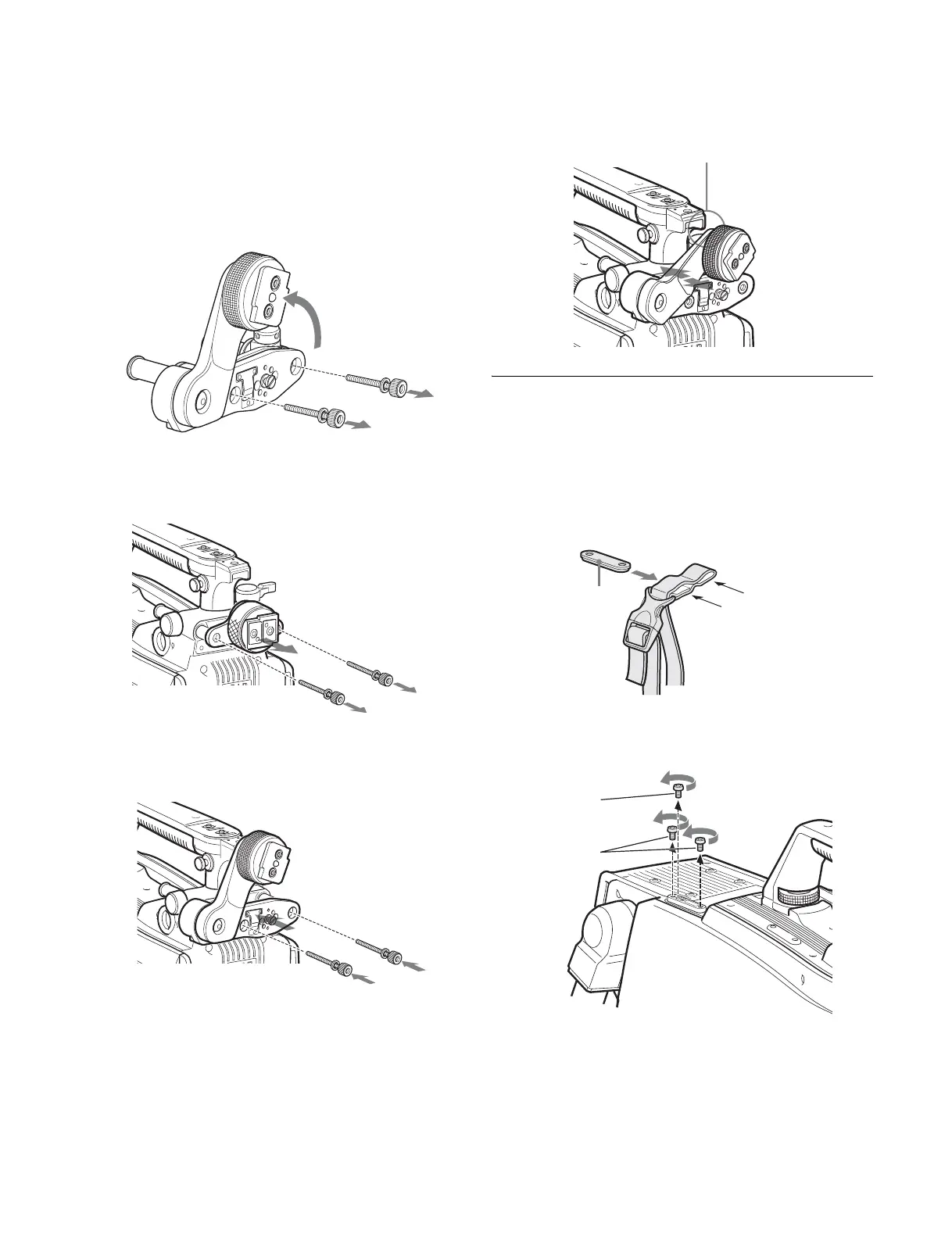

Attaching procedure of the BKW-401
1 Turn the arm of the rotation mechanism assembly of
the BKW-401 in the direction of the arrow in the
following illustration.
Next, using a hexagonal wrench 3 mm across flats,
remove the bolts (M4 × 8) together with the washers,
to separate the rotation mechanism assembly from
the viewfinder front-back positioning mechanism
assembly.
2 In the same manner as step 1, remove the viewfinder
shoe of the camera from the front-rear positioning
mechanism.
3 Using the two bolts (M4 × 8) and the washers removed
from the camera in step 2, attach the rotation
mechanism assembly of the BKW-401 to the camera.
4 Adjust the front-rear position so that the camera
handle does not interfere when you rotate the BKW-
401 arm upwards.
Attaching the Cable Clamp Belt
(Supplied)
You can secure the camera cable to the camera by attaching
the supplied cable clamp belt.
1 Insert the belt bracket into hole A or B of the cable
clamp belt.
2 Remove two +B3×5 screws and a blind screw shown
in the figure below from the camera.
D
D
Hexagon
socket bolts
(M4 × 8)
D
Not to interfere
A
B
Belt bracket
Blind screw
+B3
×5 screws
