5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 2-178-793-01 BRACKET (TRIPOD)
52 2-891-980-01 PLATE, BOTTOM
53 1-870-118-11 FP-496 FLEXIBLE BOARD
54 1-870-115-11 FP-493 FLEXIBLE BOARD
55 2-892-031-01 COVER (F), HINGE
56 1-870-113-11 FP-491 FLEXIBLE BOARD
57 A-1217-220-A NN-003 BOARD, COMPLETE
* 58 X-2149-998-1 FRAME ASSY, MD
#15 3-062-214-01 SCREW (M1.4X1.5) (Silver)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)

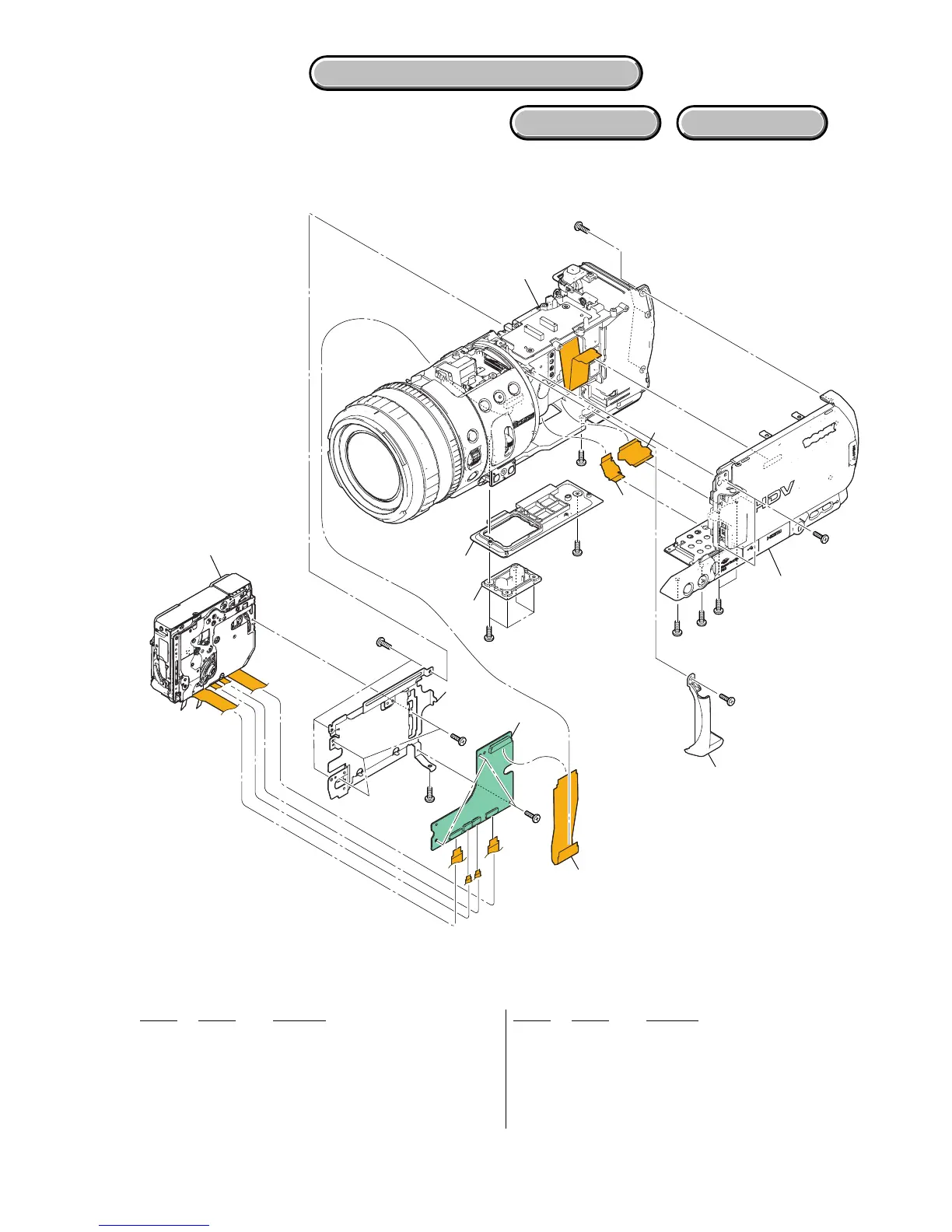

5-1-2. OVERALL SECTION-2
Mechanism Deck Section
(See Page 5-14)
54
57
58
52
51
53
56
55
#49
#49
#50
#50
#49
#49
#49
#49
#49
#50
#15
#50
#50
Cabinet (R) Sectio
n
(See Page 5-7)
Overall Section-3
(See Page 5-4)
NN-003
