5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2

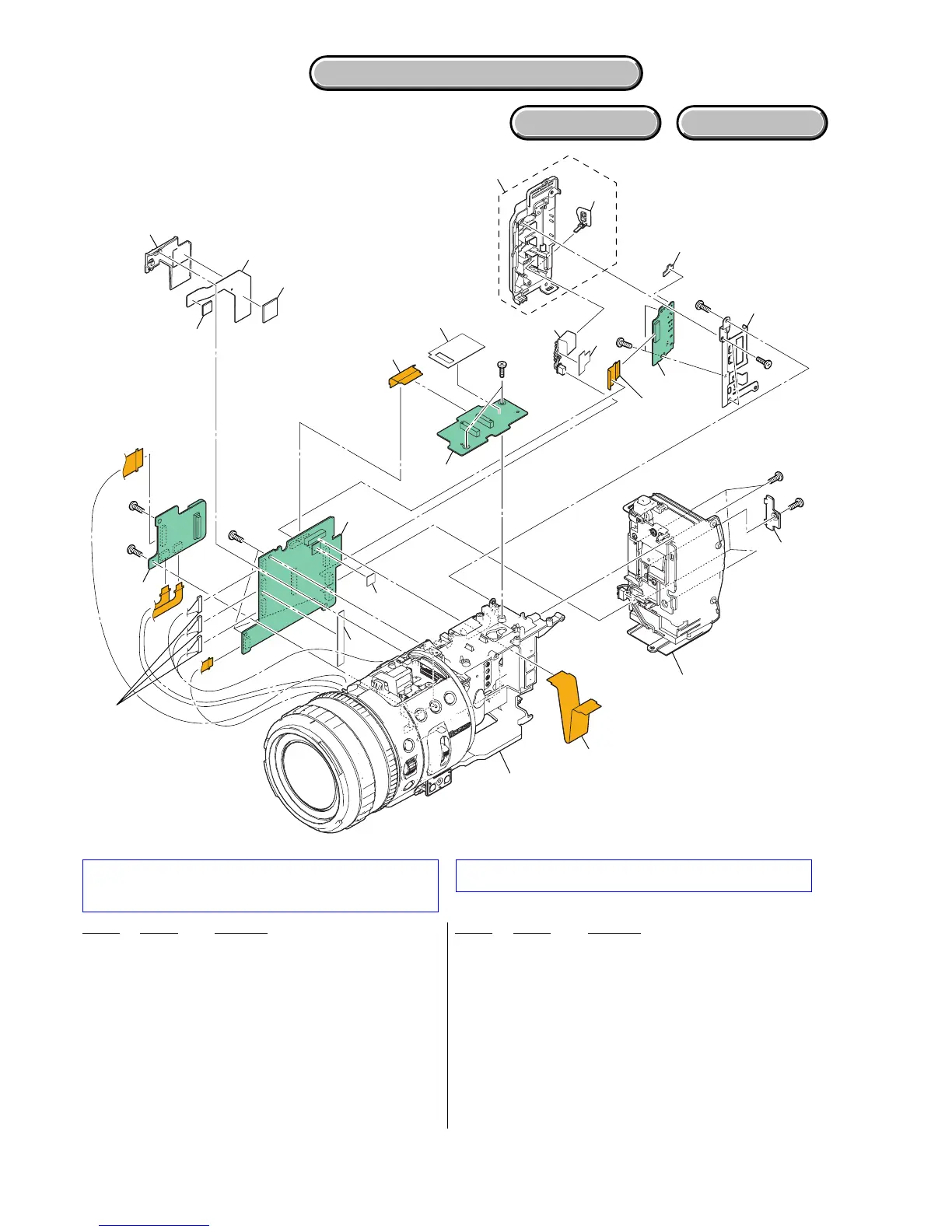

5-1-3. OVERALL SECTION-3
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1217-225-A YY-003 BOARD, COMPLETE
102 A-1217-675-A TT-003 BOARD, COMPLETE (SERVICE)
(NTSC: FX7)
102 A-1217-676-A TT-003 BOARD, COMPLETE (SERVICE)
(PAL: FX7E)
103 1-870-114-11 FP-492 FLEXIBLE BOARD
104 A-1217-222-A OO-003 BOARD, COMPLETE
* 105 2-896-054-01 SHEET (TP)
106 1-870-117-11 FP-495 FLEXIBLE BOARD
107 X-2149-994-1 CABINET (L) ASSY, JACK
108 2-891-959-01 DC, JACK LID
109 A-1217-208-A II-003 BOARD, COMPLETE
* 110 2-891-977-01 HOLDER, JACK PC BOARD (L)
111 2-891-982-01 LID, CPC
112 1-870-116-11 FP-494 FLEXIBLE BOARD
* 113 2-891-983-01 CUSHION, LIGHT INTERCEPTION
* 114 2-891-990-01 SPACER (DZ)
* 115 2-891-985-01 SHEET (GF)
* 117 2-899-567-01 SHEET (TT)
0 J901 1-815-005-11 CONNECTOR, DC-IN
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
Lens Section
(See Page 5-5)
BT Block
(See Page 5-6)
J901
103
107
ns
115
ns
110
109
106
111
101
#49
#49
#53
#50
#50
#50
#50
#50
112
104
102
108
YY-
003
(Note)
#53
114
117
105
ns
113
ns
• Refer to page 5-1 for mark 0.
Note: ハーネス（coaxialcable）を抜く時は2-1ページのNote
fordisconnectingtheharness（coaxialcable）を参照し
てください。
Note: Refer to page 2-1 “Note for disconnecting the harness (co-
axial cable)” when changing the harness (coaxial cable).
