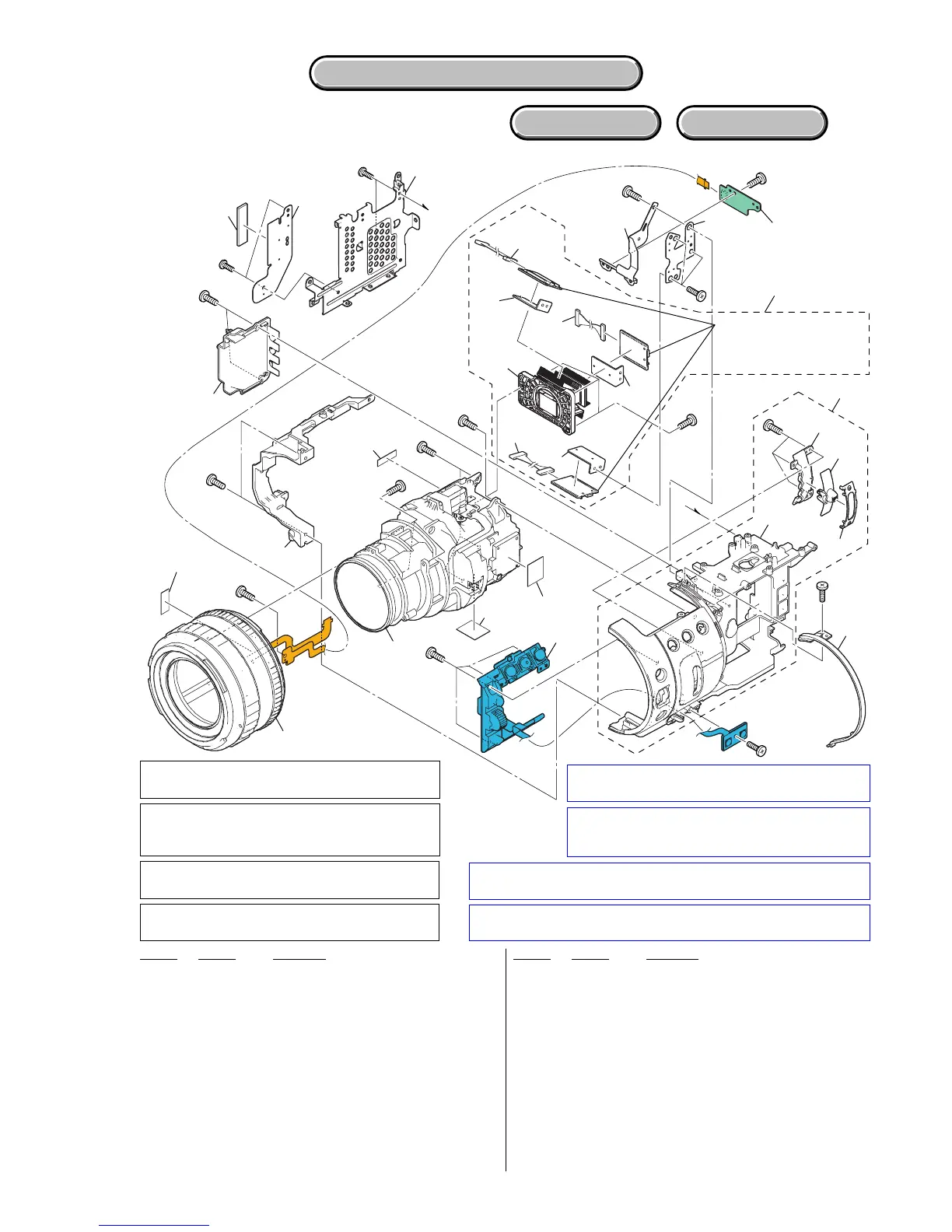

Sony HDR-FX7 - Lens Section Exploded View

5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
Note 1: マウント済EE-006基板とIC5601は交換対象で
はありませんが，プリズム組立に含まれます。
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 151 X-2159-300-1 BRACKET (VC) ASSY
152 A-1227-577-A JJ-004 BOARD, COMPLETE (SERVICE)
153 2-898-190-01 RING UNIT (B187A (SERVICE))
154 X-2149-991-1 CHASSIS ASSY, CENTER (J)
154 X-2149-992-1 CHASSIS ASSY (E), CENTER (EXCEPT J)
* 155 2-891-955-01 RETAINER, ND KNOB
* 156 2-891-954-01 KNOB, ND
* 157 2-891-956-01 PLATE, ND CLICK
158 2-891-975-01 RING, ORNAMENTAL
159 1-479-812-11 SWITCH BLOCK, CONTROL (CK18500)
160 A-1223-596-A PRISM ASSY (SERVICE) (Note 1, 2)
* 161 2-891-979-01 PLATE (CMOS), INTERCEPTION
* 162 X-2149-999-1 BRACKET (CL) ASSY
163 A-1224-327-A UNIT ASSY (B187A (SERVICE))
164 1-963-577-41 HARNESS (COAXIAL CABLE) (Note 3)
165 CAUTION WOVEN (T0.25), FABRIC NON
#14 2-599-475-11 SCREW (M1.7) (Silver)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#51 3-073-686-01 SCREW (M2X2.5) (Silver)
#54 3-318-203-11 SCREW, TAPPING, P3 (Black)
#57 7-627-852-18 SCREW, PRECISION +P 1.7X4 TYPE3 (Black)
#58 3-719-408-11 SCREW (B2), TAPPING, P3 (Silver)
161
154
ns
ns
158
155
156
ns
157
162
163
153
ns
165
(8mm x 18mm)
159
ns
#49
#49
#57
#49
#58
#49
#49
#54
#51
#14
#50
#49
#50
ns
ns
151
#50
#50
152
#54
ns
ns
ns
ns
ns
ns
(EE-006 Complete Board
and IC5601 (CMOS Imager))
(Note 1, 2)
164
(Note 3)
160
164
(Note 3)
164
(Note 3)
Note 2: イメージャの交換時は4 - 4 ページのイメー
ジャ交換時の注意を必ずお読みください。
Note 2: Be sure to read “Precautions for Replacement
of Imager” on page 4-3 when changing the im-
ager.
DISASSEMBLY
5-1-4. LENS SECTION
ns: not supplied
Note 1: EE-006 complete board and IC5601 are not
supplied, but they are included in prism assy.
CAUTION:
165番は，T0.25ヒメロン（3-076-631-01）を切って使用。
CAUTION:
For the part of 165, cut WOVEN (T0.25), FABRIC NON
(3-076-631-01) into the desired length and use it.
Note 3: ハーネス（coaxialcable）を抜く時は2-1ページのNotefordis-
connectingtheharness（coaxialcable）を参照してください。
Note 3: Refer to page 2-1 “Note for disconnecting the harness (coaxial cable)”
when changing the harness (coaxial cable).
