Sony HDR-FX7 - Page 91

5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2

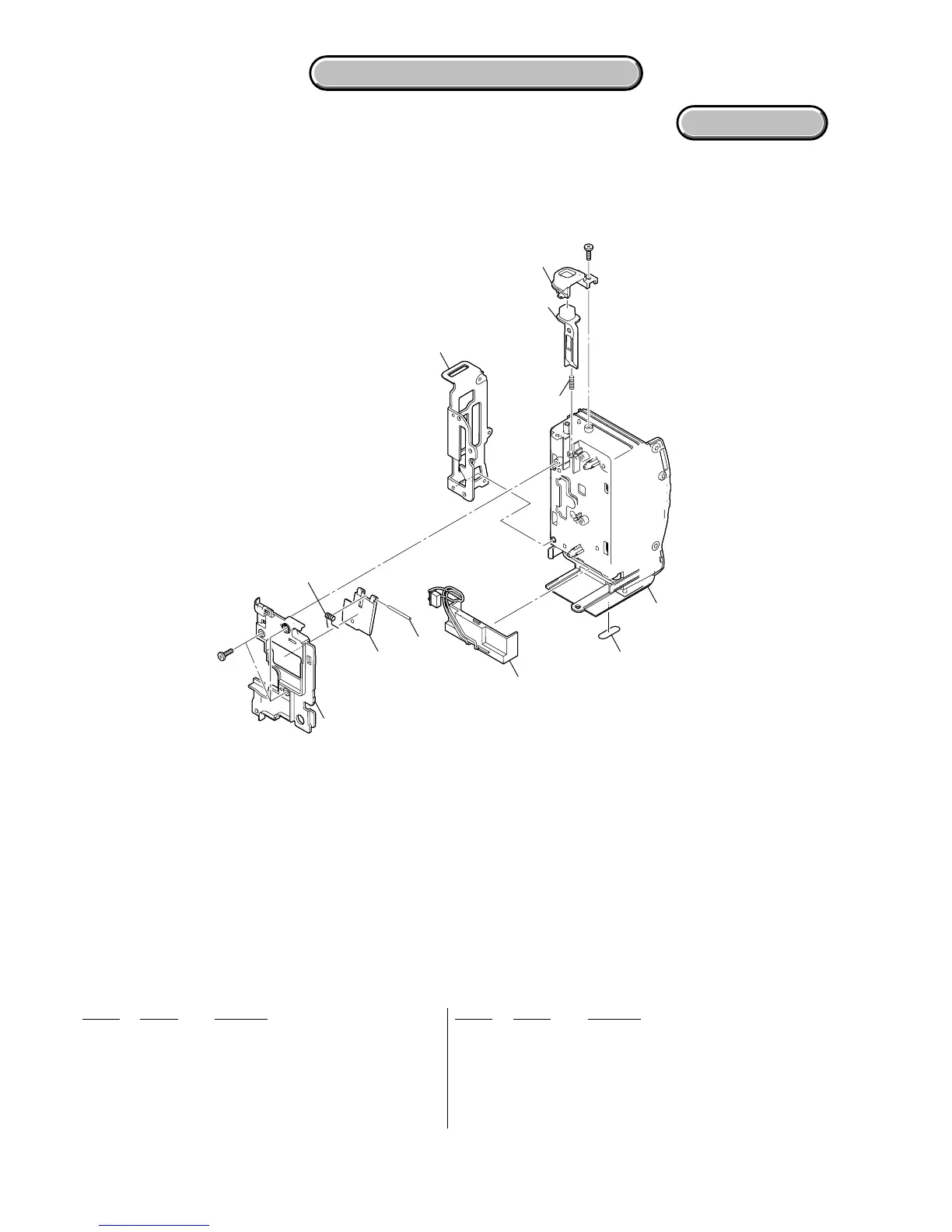

5-1-5. BT BLOCK
ns: not supplied
HARDWARE LIST
• Refer to page 5-1 for mark 0.
Ref. No. Part No. Description Ref. No. Part No. Description
201 2-891-969-01 COVER, BT LOCK
202 3-060-595-01 CLAW, BT LOCK
203 3-968-770-01 SHAFT, BT
204 2-891-968-01 SHEET METAL (L), STRAP
205 2-891-970-01 COVER, BT RELEASE
206 2-891-967-01 RELEASE (SW)
207 3-968-771-01 SPRING, COMPRESSION
208 2-891-966-01 PANEL, BATTERY
209 2-178-805-01 FOOT, RUBBER
0 BT901 1-694-411-31 TERMINAL BOARD, BATTERY
#52 3-080-206-11 SCREW, TAPPING, P2 (Black)
#52
#52
209
BT901
203
202
ns
201
208
204
205
206
207
