5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
HARDWARE LIST

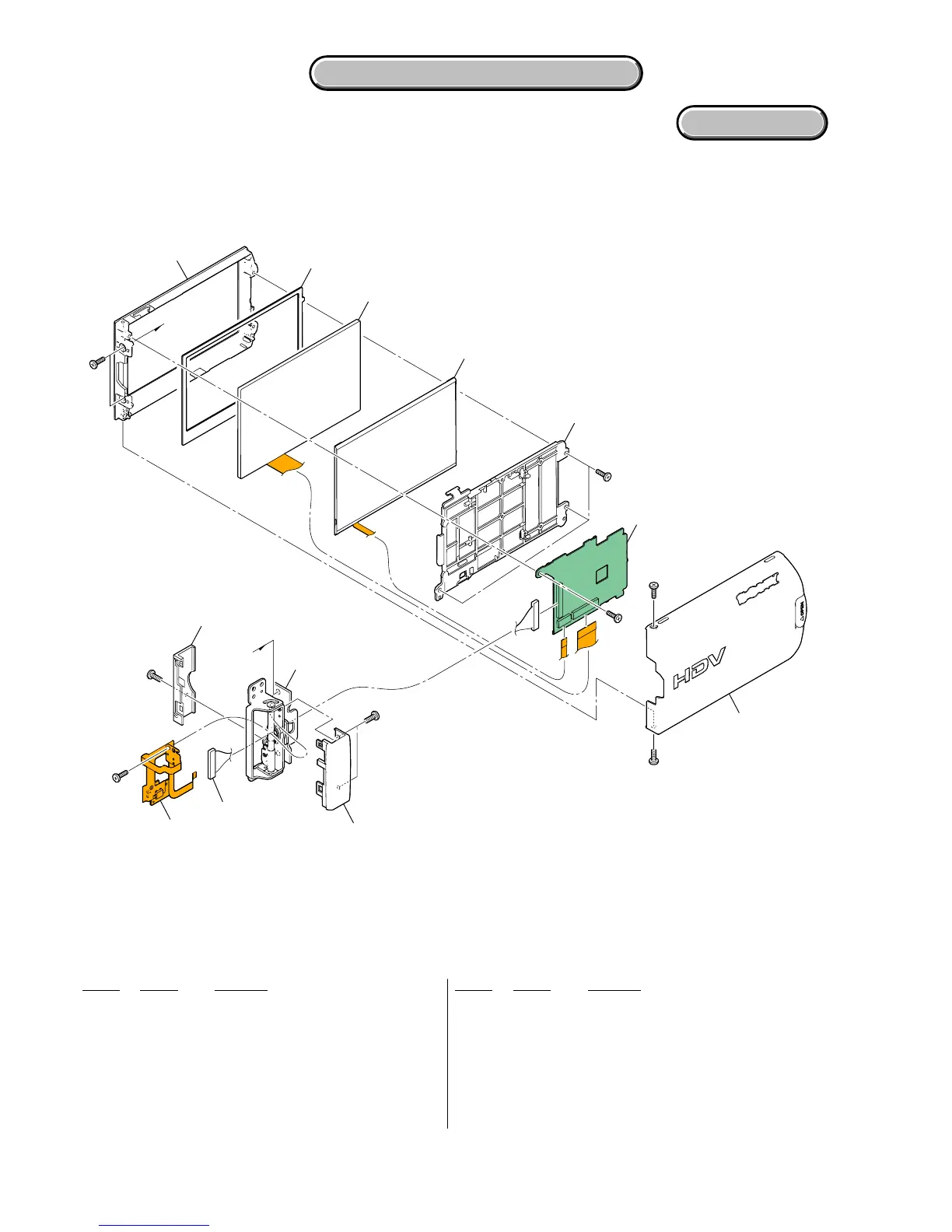

5-1-7. LCD PANEL BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
301 2-892-044-01 CABINET (L), PANEL
* 302 2-892-045-01 CUSHION, LCD
303 X-2159-313-1 FRAME ASSY, PANEL
304 A-1217-211-A PP-003 BOARD, COMPLETE
305 X-2159-311-1 CABINET (R) ASSY, PANEL
306 2-892-046-01 COVER (R), HINGE
307 X-2159-310-1 HINGE ASSY
308 3-090-382-21 COVER (REAR), HINGE
309 1-964-790-11 HARNESS (PR-074)
310 A-1217-232-A FP-487 FLEXIBLE BOARD, COMPLETE
D901 1-479-622-11 BLOCK, LIGHT GUIDE PLATE (3.5)
LCD901 8-753-270-54 ACX545AKA-1
#1 2-635-562-11 SCREW (M1.7) (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
301
304
303
D901
LCD901
302
306
310
305
#49
#49
#50
#50
#50
#1
#1
#1
308
307
309
PP-003
