5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
HARDWARE LIST

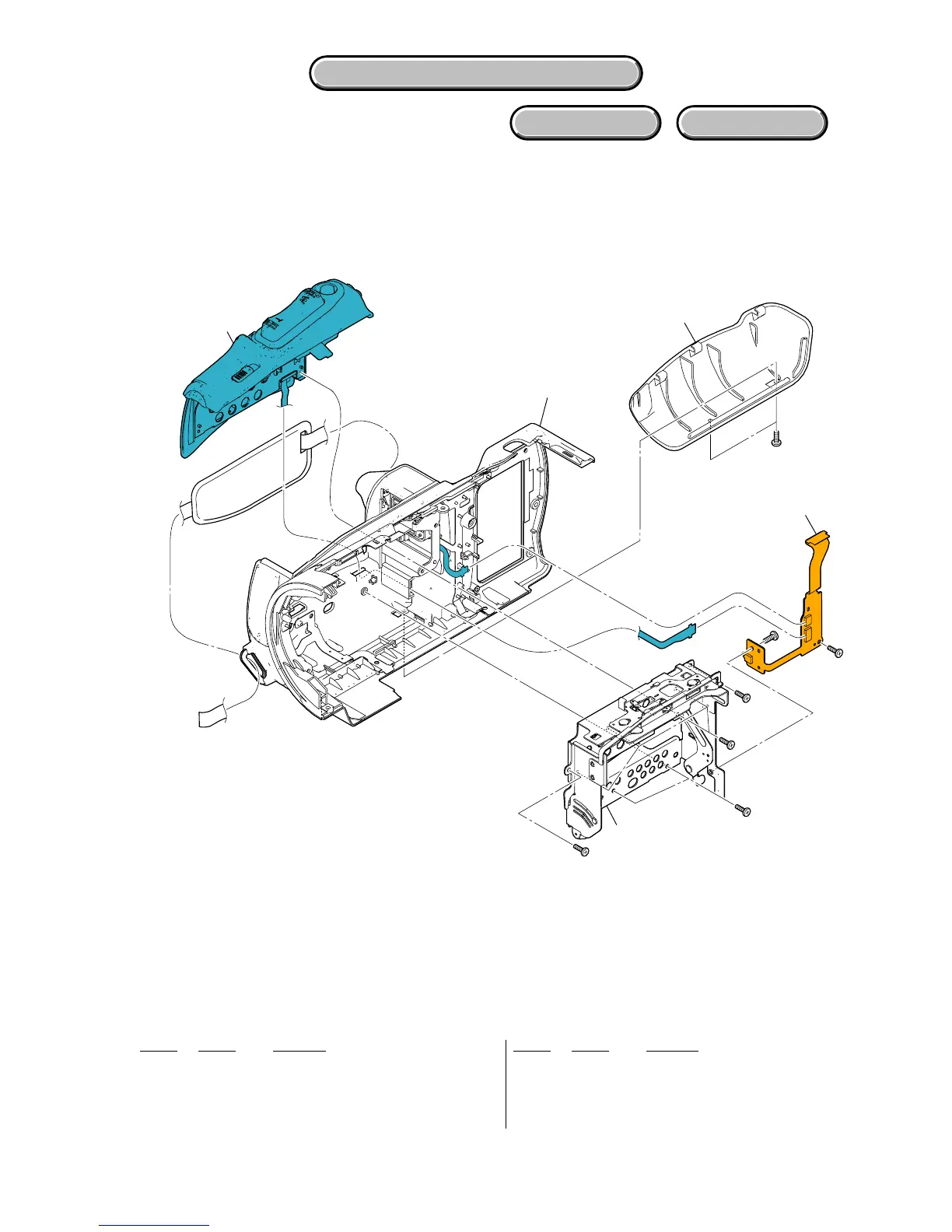

5-1-8. CABINET (L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
351 1-479-814-11 SWITCH BLOCK, CONTROL (PL18500) (J)
351 1-479-814-21 SWITCH BLOCK, CONTROL (PL18500)
(EXCEPT J)
354 2-891-976-01 COVER, GRIP
355 A-1217-230-A FP-485 FLEXIBLE BOARD, COMPLETE
* 356 X-2159-301-1 FRAME ASSY, CS
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
355
354
356
#53
#53
#50
#53
#50
#53
#53
351
Cabinet (L) Block
(See Page 5-10)
DISASSEMBLY
