Sony HDR-FX7 - Page 95

5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
409
405
406
405
402
403
ns
404
407
408
#5
3
#53
#53
#53
401
#49
Ref. No. Part No. Description Ref. No. Part No. Description
401 2-892-004-01 BELT, GRIP
* 402 2-892-001-01 HOLDER, GRIP BELT
403 X-2159-302-1 CABINET (L) ASSY (J)
403 X-2159-303-1 CABINET (L) ASSY (E) (EXCEPT J)
* 404 2-892-003-01 BRACKET (R), GRIP BELT
405 2-178-805-01 FOOT, RUBBER
* 406 2-892-005-01 RETAINER, PS
407 1-479-811-11 SWITCH BLOCK, CONTROL (PS18500)
* 408 2-891-981-01 PLATE, PS FIXED
* 409 2-892-002-01 BRACKET (F), GRIP BELT
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
HARDWARE LIST

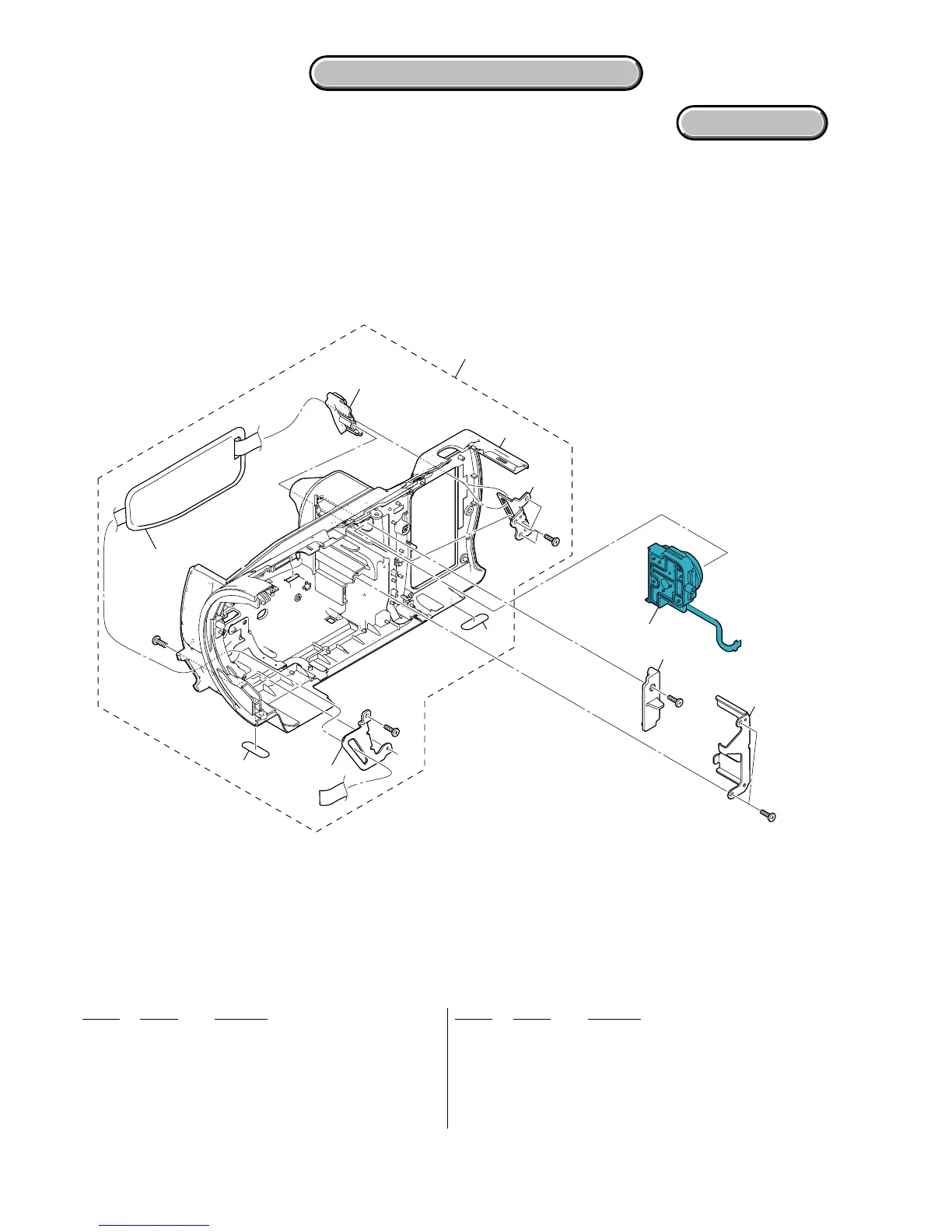

5-1-9. CABINET (L) BLOCK
ns: not supplied
