5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
564
557
556
555
554
ns
551
MIC902
MIC901
552
560
(Note)
561
562 (Note)
558
559
563
#49
#1
#1
#54
#49
#1
ns
553
565
(11mm x 11mm)
565
(11mm x 11mm)
Ref. No. Part No. Description Ref. No. Part No. Description
551 X-2159-314-1 CABINET (FRONT) ASSY, MIC
552 A-1217-226-A FP-481 FLEXIBLE BOARD, COMPLETE
553 X-2159-315-1 CABINET (CENTER) ASSY, MIC
554 2-892-088-01 COVER, PLUG
555 3-061-234-01 NUT (M6X0.5)
* 556 2-892-087-01 SHEET METAL, PLUG RETAINER
557 A-1217-227-A FP-482 FLEXIBLE BOARD, COMPLETE
* 558 2-892-089-01 SHEET METAL, SHOE
559 2-892-085-01 HANDLE CABINET (FRONT (T))
560 1-870-120-11 FP-498 FLEXIBLE BOARD
561 2-892-086-01 HANDLE CABINET (FRONT (B))
562 X-2159-316-1 CABINET (REAR) ASSY, MIC
* 563 2-892-060-01 SHEET METAL, RETAINER
564 A-1217-210-A MM-061 BOARD, COMPLETE
565 CAUTION TAPE (11X11)
MIC901 1-542-513-21 MICROPHONE R
MIC902 1-542-513-21 MICROPHONE L
#1 2-635-562-11 SCREW (M1.7) (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#54 3-318-203-11 SCREW, TAPPING, P2 (Black)
HARDWARE LIST

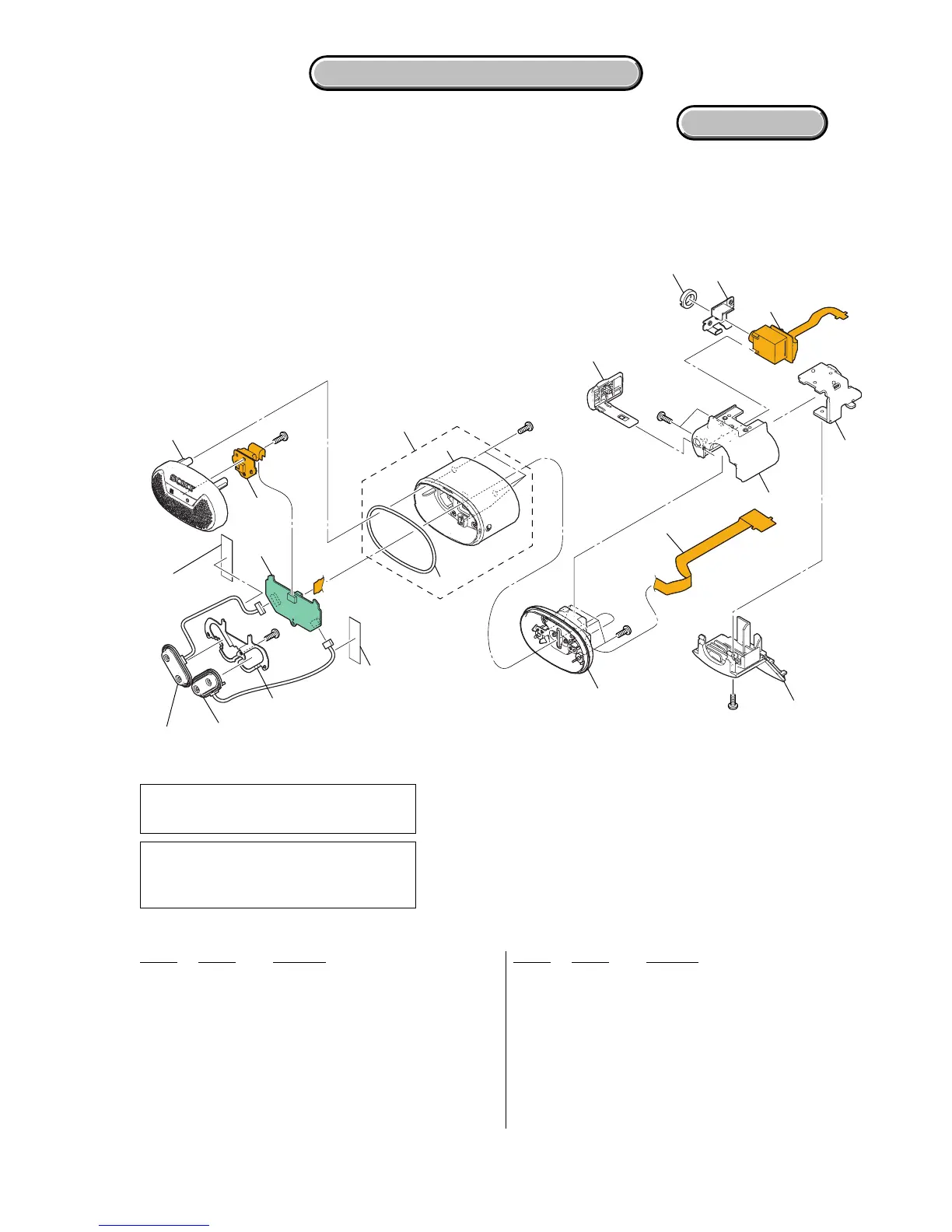

5-1-12. MIC BLOCK
ns: not supplied
CAUTION:
565番のテープ（11X11）（2-891-422-01）は，T0.25ヒ
メロン（3-076-631-01）を切って使用。
CAUTION:
For the part of 565: TAPE (11X11) (2-891-422-01),
cut WOVEN (T0.25), FABRIC NON (3-076-631-01)
into the desired length and use it.
