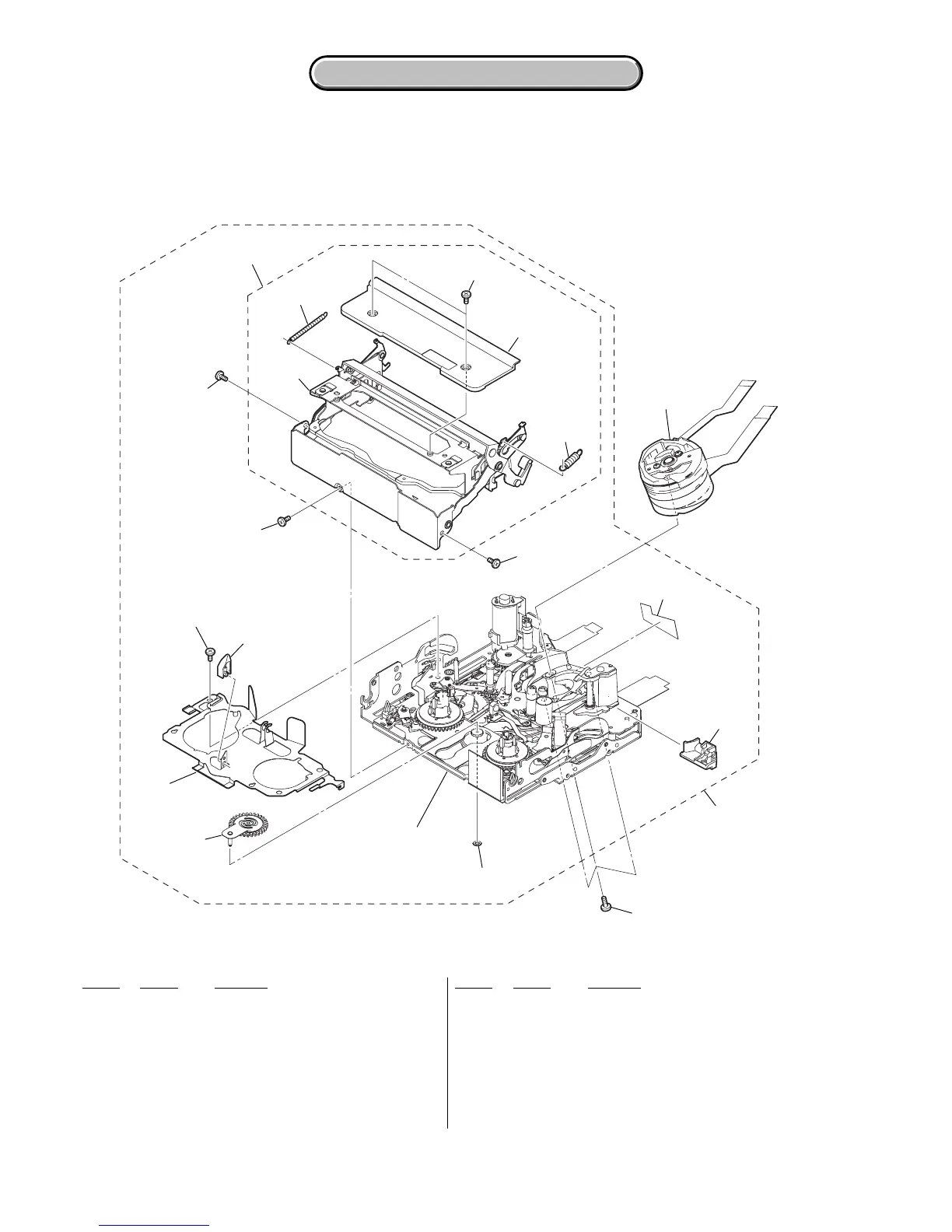

Sony HDR-FX7 - Mechanism Deck Section Exploded View

5-14
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-FX7/FX7E_L2
M901
LS chassis block assembly
(See page 5-15)
708
703
704
701
ns
714
715
712
713
711
705
705
705
709
710
707
702
706
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-2024-478-1 PENDULUM ASSY
702 2-342-917-02 LED BASE
703 7-627-850-77 SCREW, PRECISION +P 1.4X1.8
704 3-079-366-11 RELEASE, REEL LOCK
705 3-703-816-08 SCREW (M1.4X1.4), SPECIAL HEAD
706 X-2024-450-3 COMPARTMENT ASSY, CASSETTE
707 2-342-926-01 SPRING (ARM S), TENSION COIL
708 2-546-417-01 SCREW (M1.4)
709 2-342-933-02 PLATE, TOP
710 2-342-927-01 SPRING (ARM T), TENSION COIL
711 2-637-905-01 SHEET, FLEXIBLE ADHESIVE
712 2-342-918-01 TG6 CATCHER
713 A-1080-997-A MD (N100) SUB ASSY A
714 3-703-816-13 SCREW (M1.4X2.0), SPECIAL HEAD
715 3-315-414-31 WASHER
M901 A-1154-545-A DRUM (DEH-33E-R)
5-1-13. MECHANISM DECK SECTION
ns: not supplied
