HDR-SR1/SR1E_L2

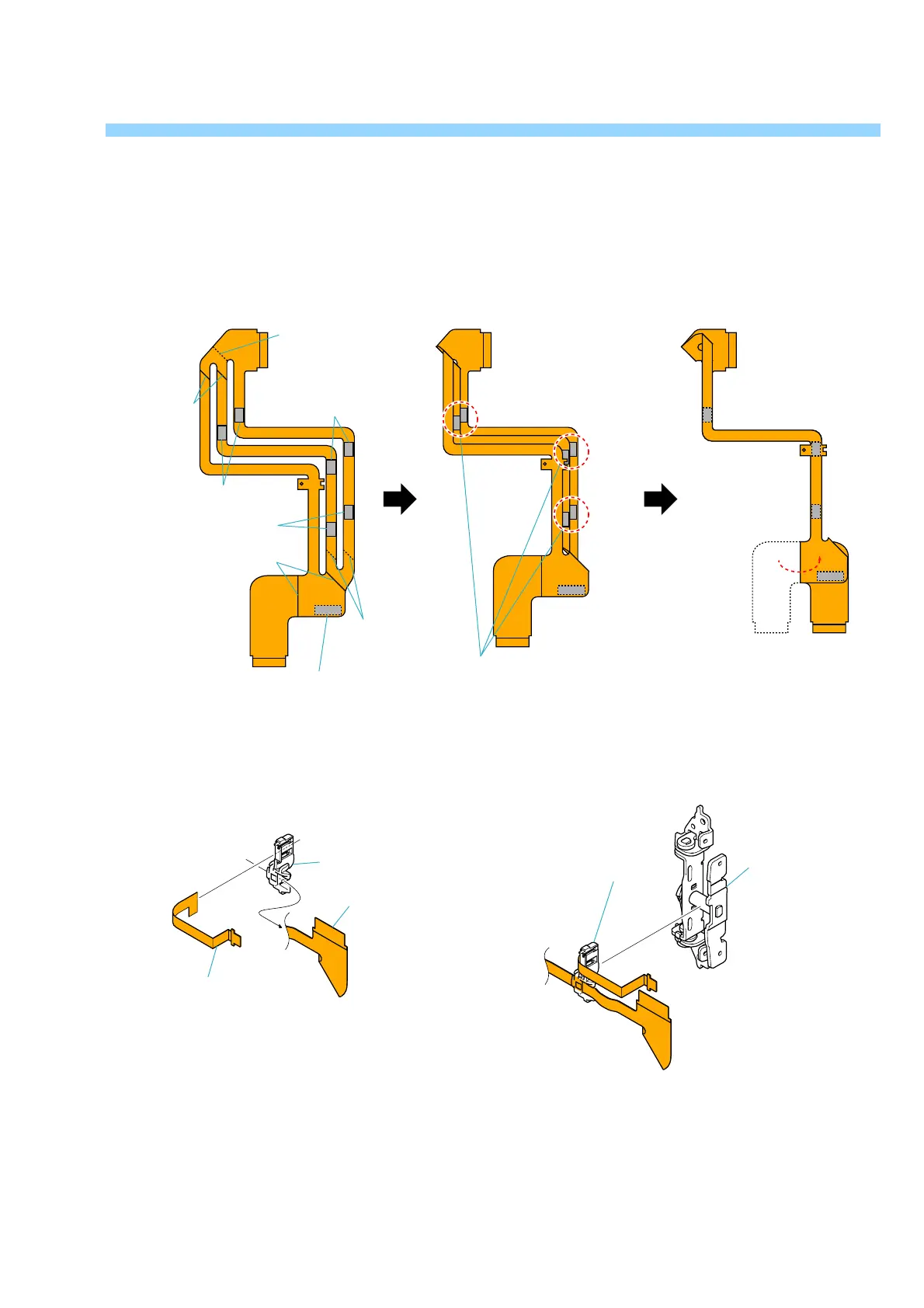

1 Fold dotted line parts of the FP-463 flexible board
as shown in figure.
Valley
fold
Mountain
fold
Hinge assy
2 Pass FP-463 and FP-478 flexible boards
through the FPC clamp.
3 Install the FPC clamp in the hinge assy.
FPC clamp
FPC clamp
FP-463
FP-478
Stick it together in the adhesive tape
while bending the FP-463 flexible board.
Mountain
fold
Valley
fold
Adhesive tape
Adhesive tape
Adhesive tape
Adhesive tape
THE METHOD OF ATTACHMENT OF FP-463 FLEXIBLE BOARD
