5-3
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2

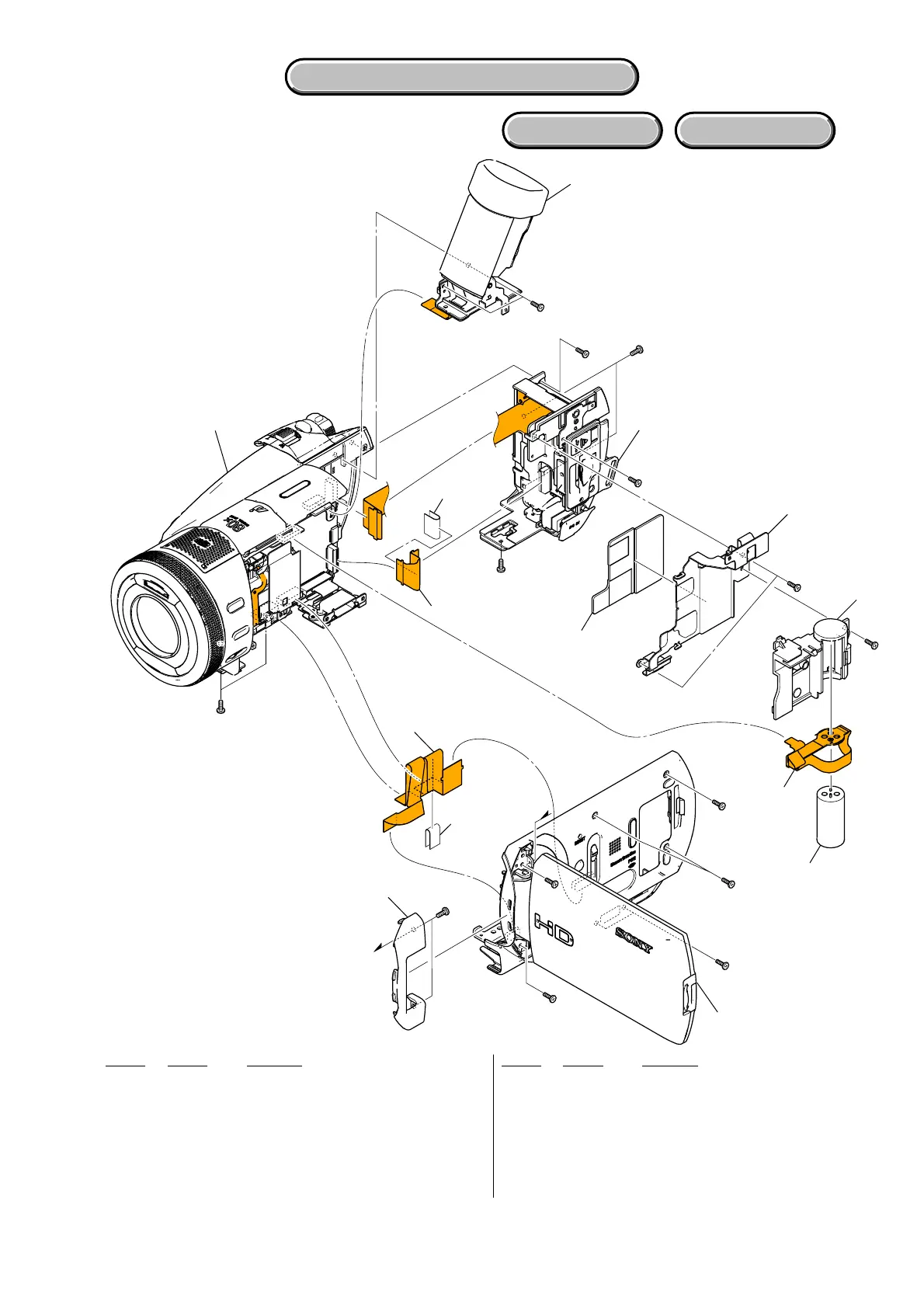

5-1-2. OVERALL SECTION-2
ns: not supplied
HARDWARE LIST
DISASSEMBLY
• Refer to page 5-1 for mark 0.
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 1-870-669-11 FP-522 FLEXIBLE BOARD
* 52 1-870-023-11 FP-480 FLEXIBLE BOARD
53 2-696-392-01 HOLDER, CAPACITOR
* 54 1-869-618-11 FP-477 FLEXIBLE BOARD
55 2-696-389-11 CABINET, PANEL HINGE
* 56 2-890-813-01 SHEET (CK), SHIELD
* 57 2-897-335-01 SHEET (MS), SHIELD
0*C001 1-112-939-11 CAP, ELECT 86uF 330V
#1 2-635-562-11 SCREW (M1.7) (Black)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#25 2-635-562-21 SCREW (M1.7) (Black)
ns
53
55
51
ns
54
C001
Overall Section-3
(See page 5-4.)
Cabinet (R) Section
(See page 5-8.)
BT Block
(See page 5-10.)
EVF Block
(See page 5-13.)
#14
#14
#2
5
#1
#2
#2
#12
#2
#2
#12
#2
#2
#2
#14
52
56
57
