5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
101
107
109
106
105
108
110
Cabinet (T) Block
(See page 5-7.)
Cabinet (L) Section-1
(See page 5-11.)
Lens Block-1
(See page 5-5.
)
#14
#3
#14
#2
#2
#2
#12
#14
103 (Note)
104
#2
102
2-8

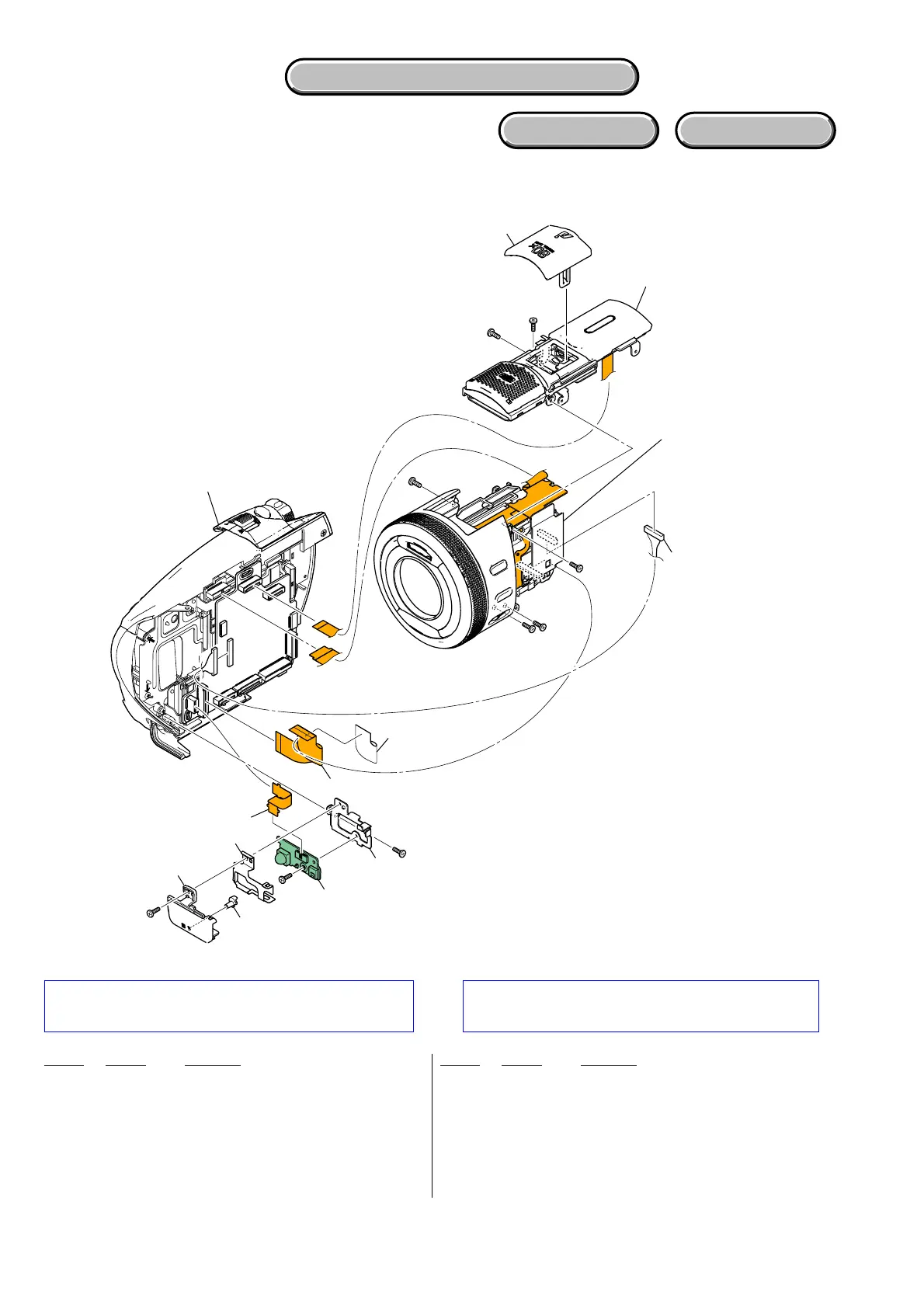

5-1-3. OVERALL SECTION-3
Ref. No. Part No. Description Ref. No. Part No. Description
* 101 X-2149-978-1 COVER ASSY, HS
* 102 2-893-921-01 SHEET (LD), SHIELD
103 1-963-577-31 HARNESS (COAXIAL CABLE) (Note)
104 1-869-605-11 FP-464 FLEXIBLE BOARD
* 105 2-696-380-01 FRAME, IR
106 A-1201-502-A FR-256 BOARD, COMPLETE
* 107 1-869-606-11 FP-465 FLEXIBLE BOARD
* 108 2-696-381-01 FRAME, IR GROUND
109 2-696-379-01 LIGHT, REC TALLY GUIDE
110 2-696-378-01 WINDOW, IR
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
Note : Refer to page 2-1 “Note for disconnecting the harness
(coaxial cable)” when changing the harness (coaxial
cable).
Note : ハーネス（coaxial cable）の交換時は2-1 ページの
“Notefordisconnectingtheharness(coaxialcable)”を
参照してください。
