Sony HDR-SR1 - Page 17

2-4
HDR-SR1/SR1E_L2
2-1-3. OVERALL SECTION-3

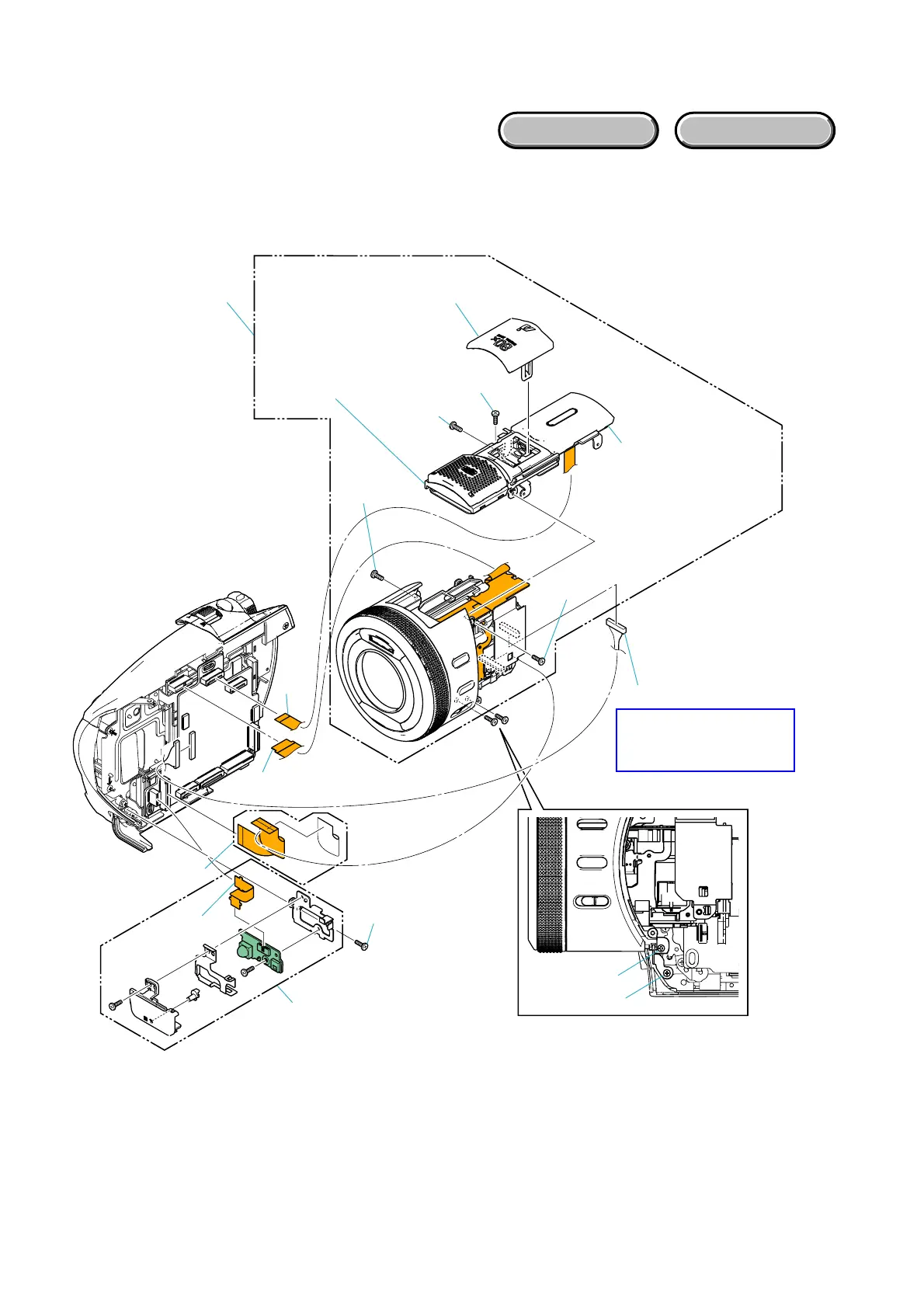

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 IR Block (1-1 to 1-2)
2 Front Cabinet Section (2-1 to 2-8)
3 Cabinet (T) Block (3-1 to 3-4)
3-1
(#2)
1 IR Block
2-4 (#12)
2-6
(Open the Shoe Cover)
2-7 (#2)
2 Front Cabinet
Section
3 Cabinet (T)
Block
1-2 (#14)
1-1
2-1
3-2 (#2)
3-3 (#2)
2-3
2-8
2-2
2-5 (#14)
Refer to page 2-1 “Note
for disconnecting the
harness (coaxial cable)”.
3-4
(Slide the Cabinet (T)
Block)
