Sony HDR-SR1 - Page 18

2-5
HDR-SR1/SR1E_L2
2-1-4. LENS BLOCK

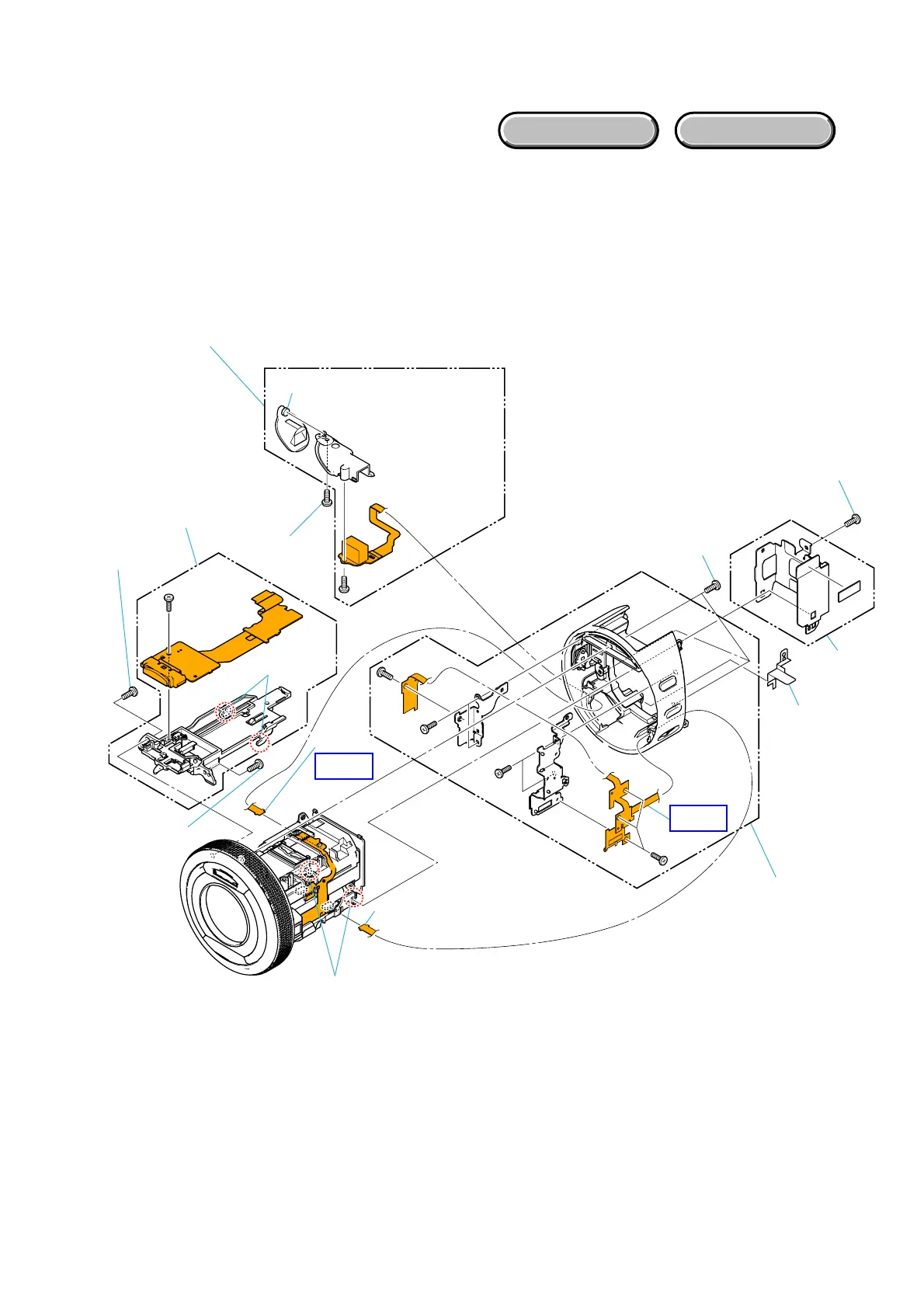

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 MIC Jack Block (1-1 to 1-4)
2 Lens Cabinet Block (2-1 to 2-5)
3 Stroboscope Block (3-1 to 3-3)
3-1 (#8)
1 MIC Jack Block
2-2 (#8)
2-4
2-1
2 Lens Cabinet
Block
3 Stroboscope
Block
1-3 (Open the MIC Jack Cover)
1-4 (#12)
1-2
3-2 (#8)
2-5 (#12)
2-3 (Claw)
HELP
HELP
3-3 (Claw)
1-1
