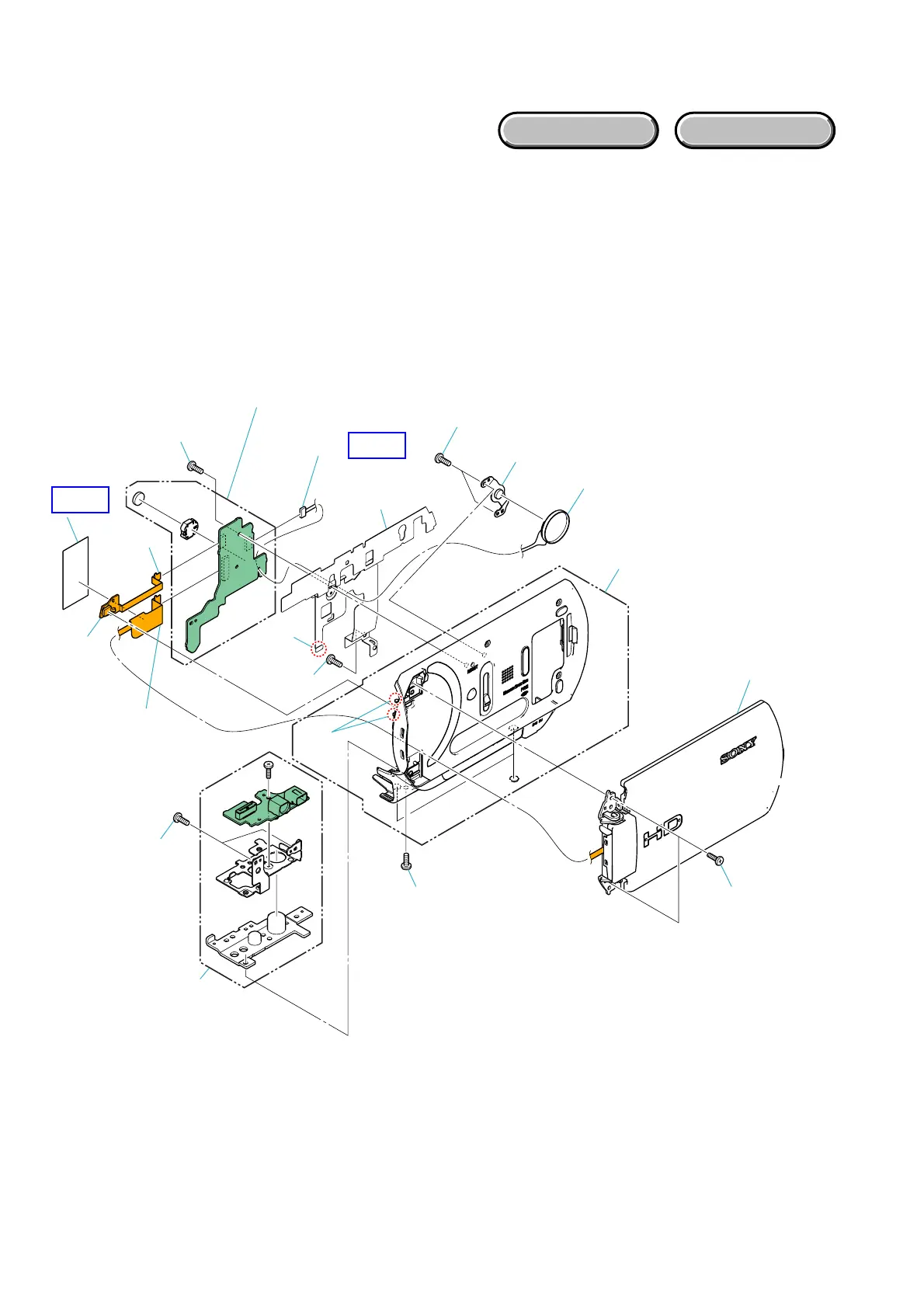

2-1-5. CABINET (R) SECTION
EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 LCD Panel Block (1-1 to 1-3)
2 CK-164 Board (2-1 to 2-8)
3 Loud Speaker (3-1 to 3-6)
3-1 (#12)
1 LCD Panel
Block
2-1 (#2)
2-3
2-4
2 CK-164 Board
3 Loud Speaker
1-1
1-2
1-3 (#12)
3-3
3-4 (#8)
3-5
2-7
2-2 (#12)
2-8 (#12)
HELP
HELP
2-5
(Claw)
2-6
3-2
(Claw)
3-6
