5-8
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
301
308
309
302
304
307
ns
SP9001
305
306
LCD Panel Bloc
(See page 5-9.)
303
BT9001
(Note)
#12
#12
#3
#2
#12
#12
#8
!
!
: BT9001 (BATTERY, LITHIUM SECONDARY)
Board on the mount position.
(See page 4-50.)
BH5501
(Note)

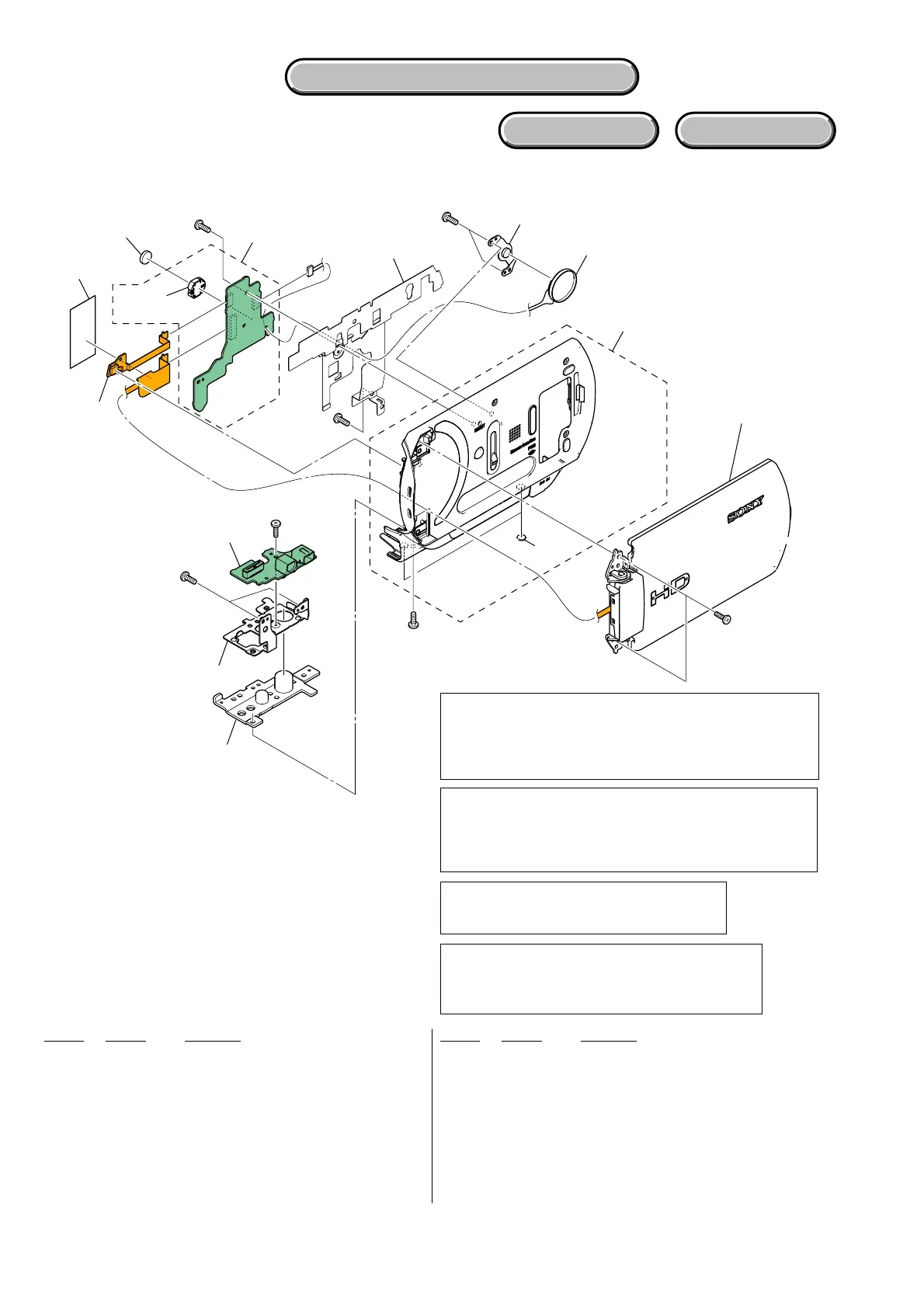

5-1-7. CABINET (R) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
301 A-1201-510-A FP-475 FLEXIBLE BOARD, COMPLETE
* 302 2-696-562-01 TAPE, CABINET (R) FLEXIBLE
303 A-1201-501-A CK-164 BOARD, COMPLETE
* 304 2-696-564-01 FRAME, CABINET (R) RADIATION
305 X-2149-628-1 CABINET R (201) ASSY (J)
305 X-2149-629-1 CABINET R (201) ASSY (E) (EXCEPT J)
306 2-589-376-01 FOOT (395), RUBBER
307 A-1201-490-A JK-313 BOARD, COMPLETE
* 308 2-696-563-01 FRAME, AV TERMINAL
309 2-696-565-01 SCREW, TRIPOD
0 BH5501 1-756-615-11 HOLDER, BATTERY (Note)
0 BT9001 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
SP9001 1-825-262-61 LOUD SPEAKER (1.6CM)
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#8 3-078-890-01 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
ns: not supplied
ノート: CK-164基板のリチウム電池（BT5501）を交換する場合
はバッテリホルダ（BH9001）も同時に新品に交換して
下さい。（一度使用したバッテリホルダは再使用できま
せん。）
部品取り付けの際は，先にバッテリホルダを取り付けて
からリチウム電池を装着して下さい。
Note: Replace the battery holder (BH5501) together when re-
placing the lithium battery (BT9001) on the CK-164 board.
(The battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder
first and attach new lithium battery next.
• Refer to page 5-1 for mark 0.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
HARDWARE LIST
