5-9
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
HARDWARE LIST

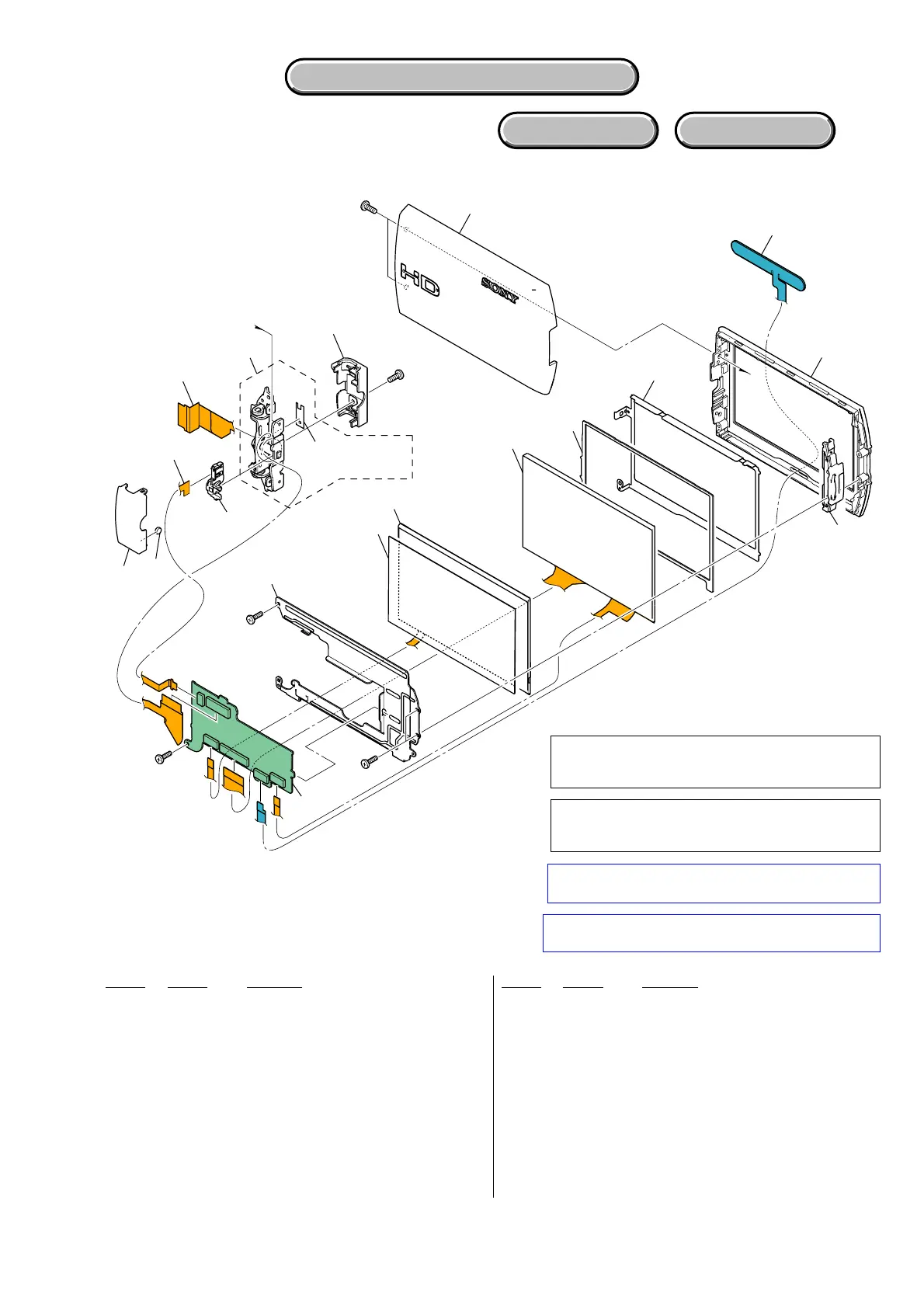

5-1-8. LCD PANEL BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
351 2-696-449-11 COVER (C), PANEL HINGE
352 1-471-278-11 MAGNET
353 A-1201-511-A FP-478 FLEXIBLE BOARD, COMPLETE
* 354 1-869-604-11 FP-463 FLEXIBLE BOARD (Note)
* 355 2-696-451-01 CLAMP, PANEL FLEXIBLE
356 X-2148-780-1 HINGE ASSY, PANEL
357 CAUTION SHEET, HINGE ADHESIVE
358 2-696-450-11 COVER (M), PANEL HINGE
359 X-2149-626-1 P CABINET C (201) ASSY
360 1-479-831-11 SWITCH BLOCK, CONTROL (SB20100)
361 2-888-923-01 P CABINET M (201) (J)
361 2-888-923-11 CABINET (M (201)), P (EXCEPT J)
* 362 2-696-448-01 RETAINER, PANEL LOCK
* 363 2-696-452-01 FRAME, LCD GROUND
* 364 2-696-454-01 CUSHION, LCD
* 365 2-696-460-01 SHEET, LCD INSULATING
* 366 2-696-453-01 FRAME, LCD
367 A-1214-520-A PD-291 BOARD, COMPLETE
D9001 1-479-622-11 BLOCK, LIGHT GUIDE PLATE (3.5)
LCD9001 A-1149-658-A TP BLOCK ASSY (35STGU06)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
364
LCD9001
D9001
365
366
358
357
(6.3mm x 3.7mm)
356
354
(Note)
353
355
367
362
351
352
359
360
363
361
#2
#2
#12
#12
#12
PD
-291
CAUTION:
For the part of 357: SHEET, HINGE ADHESIVE (2-670-
658-01), cut SHEET, ADHESIVE (2-649-300-01).
注意：
ヒンジ接着紙（2-670-658-01）は，接着紙（2-649-
300-01）を切って使用。
Note: Be sure to read “HELP” when you install the FP-463
flexible board.
Note: FP-463フレキシブル基板取付時はヘルプを必ず
お読みください。
To Next Page
