Sony HDR-SR1 - Page 74

5-10
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2

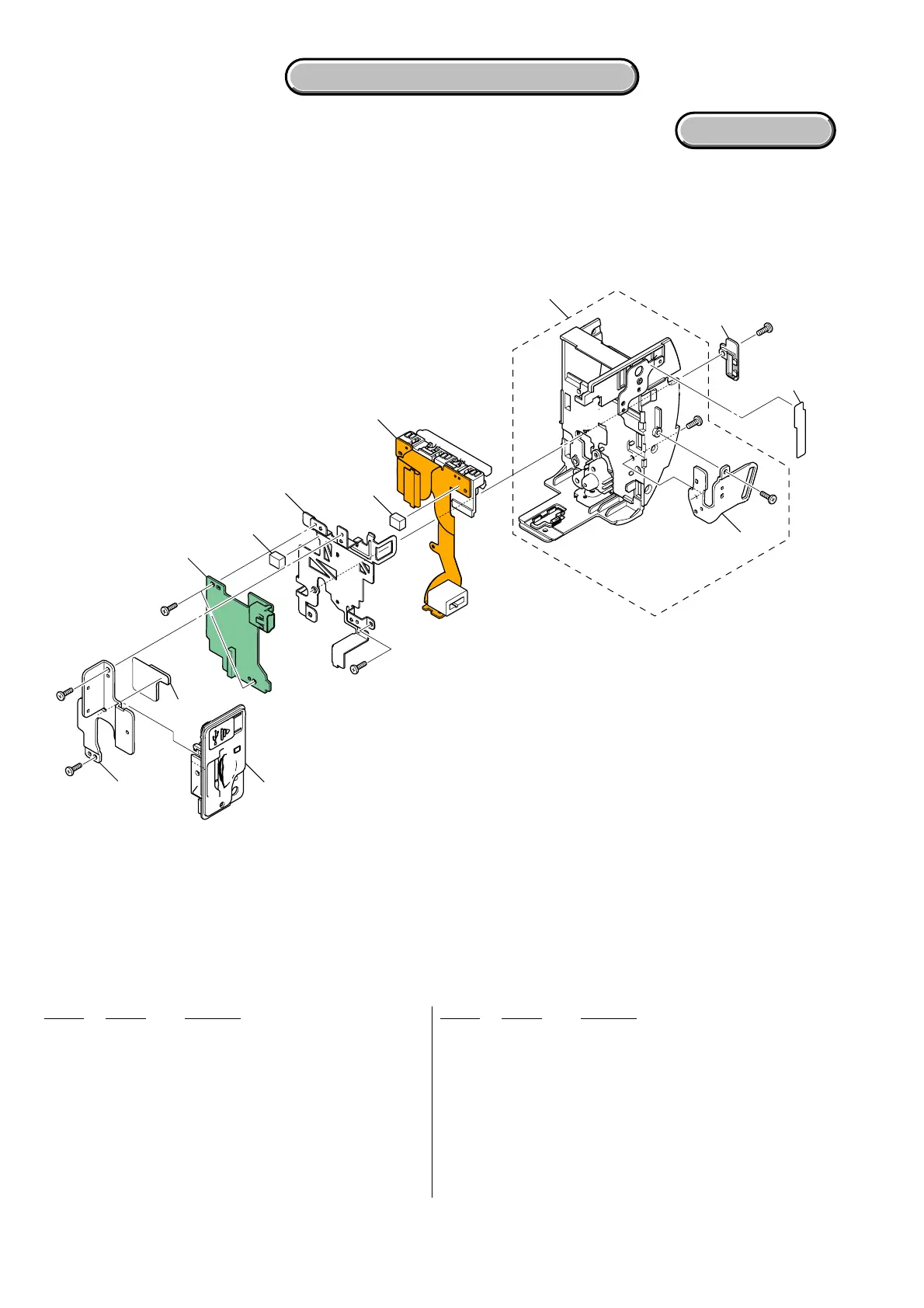

5-1-9. BT BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
* 401 X-2176-327-1 FRAME ASSY, BT RADIATION
* 402 2-888-953-01 SHEET, MS SPACER
403 A-1201-504-A MS-328 BOARD, COMPLETE
* 404 2-890-815-01 GASKET (MS)
* 405 2-696-579-01 FRAME, BT TERMINAL
* 406 2-890-814-01 GASKET (BT FLEXIBLE)
407 A-1201-513-A FP-471 FLEXIBLE BOARD, COMPLETE
408 X-2148-825-1 PANEL ASSY, BT
409 2-696-569-01 LID, REAR CPC
410 2-696-574-01 FRAME (R), STRAP
411 X-2148-826-1 CABINET ASSY, MS
* 412 2-897-338-01 SHEET (BT), ELECTROSTATIC
#1 2-635-562-11 SCREW (M1.7)
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#44 3-078-890-61 SCREW, TAPPING (Silver)
#3
#14
#12
#14
#44
#2
408
407
405
404
403
402
401
411
410
409
406
M
S-328
#1
412
HARDWARE LIST
