Sony HDR-SR1 - Page 75

5-11
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
HARDWARE LIST
DISASSEMBLY

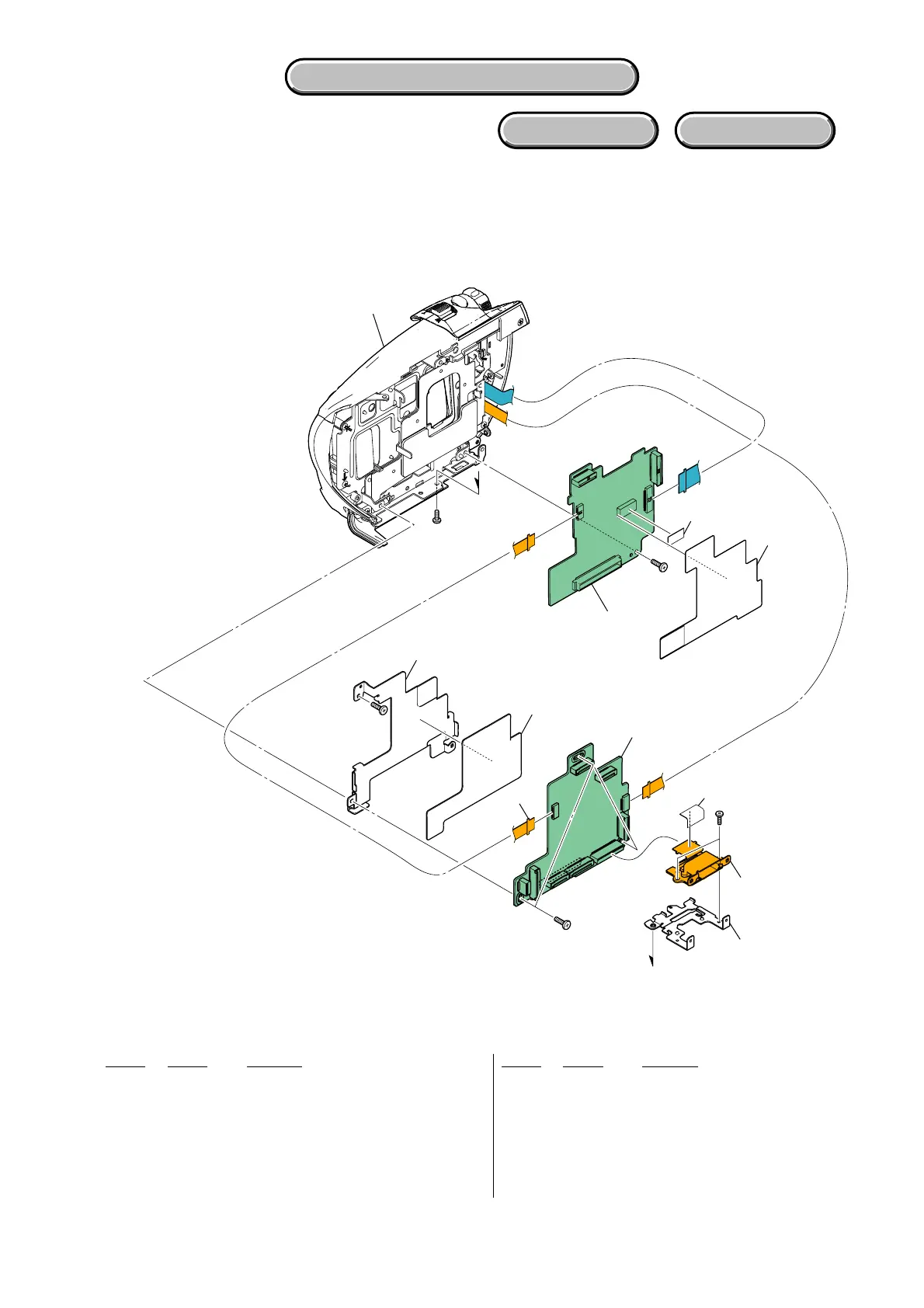

5-1-10. CABINET (L) SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
451 A-1214-504-A MD-133 BOARD, COMPLETE
* 452 2-696-387-01 SHEET, VM INSULATING
* 453 2-890-811-01 SHEET (HDMI), SHIELD
454 A-1201-514-A FP-473 FLEXIBLE BOARD, COMPLETE
* 455 2-696-390-01 FRAME (MI), JACK
456 A-1214-558-A VC-456 BOARD, COMPLETE (SERVICE) (SR1)
456 A-1214-559-A VC-456 BOARD, COMPLETE (SERVICE) (SR1E)
* 457 1-869-617-11 FP-476 FLEXIBLE BOARD
458 2-888-935-01 MD SPACER
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#43 2-660-401-31 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
Cabinet (L) Section-2
(See page 5-12.)
452
451
456
ns
ns
#43
#14
#43
454
455
#3
#2
VC-456
MD-133
453
457
458
ns: not supplied
