Sony HDR-SR1 - Page 76

5-12
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2

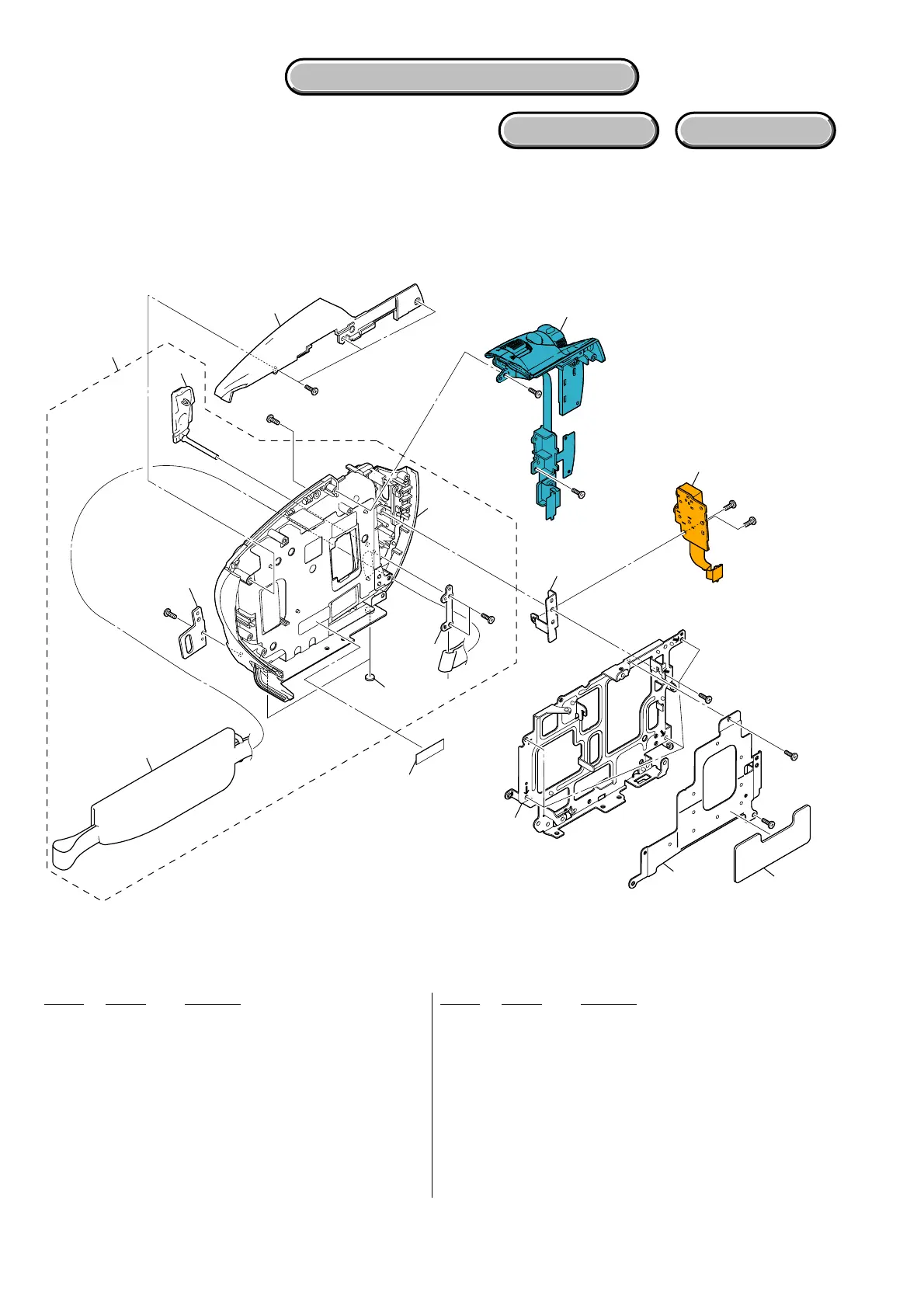

5-1-11. CABINET (L) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
501 2-672-207-11 BELT, GRIP
* 502 2-888-915-01 SHEET METAL (F), GRIP BELT
503 2-888-914-01 COVER (HR), JACK
504 X-2149-631-1 CABINET (L) ASSY (J)
504 X-2149-632-1 CABINET (L) ASSY (E) (EXCEPT J)
505 2-888-929-01 CABINET, CENTER
506 1-479-830-11 SWITCH BLOCK, CONTROL (PS20100) (J)
506 1-479-830-21 SWITCH BLOCK, CONTROL (PS20100)
(EXCEPT J)
507 A-1214-519-A FP-523 FLEXIBLE BOARD, COMPLETE
* 508 2-888-924-01 PLATE, JACK
ns: not supplied
#12
#3
#3
#8
#14
#12
#14
#12
501
505
503
506
511
509
507
ns
512
510
508
#12
502
504
ns
513
#12
#12
* 509 2-888-916-01 SHEET METAL (R), GRIP BELT
510 2-589-376-01 FOOT (395), RUBBER
* 511 2-888-928-01 FRAME, MD
512 2-888-931-01 SHEET (201), MD RADIATION
* 513 2-696-329-01 SHEET (R), CM RADIATION
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#8 3-078-890-01 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
DISASSEMBLY
HARDWARE LIST
