Sony HDR-SR1 - Page 77

5-13
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
552
551
562
563
566
567
560
559
558
LCD9002
556
554
555
553
561
568
564
565
557
#14
#12
#12
Ref. No. Part No. Description Ref. No. Part No. Description
551 2-696-677-01 PLATE, (UPPER) ORNAMENTAL
552 X-2148-836-1 CABINET (UPPER) ASSY, VF
553 2-696-680-01 FRAME, VF LIGHT INTERCEPTION
554 2-696-682-01 PANEL (CF), POLARIZATION
* 555 2-696-683-01 CUSHION (CF)
556 2-696-679-01 CABINET, VF INNER
* 557 2-638-815-01 SPACER, LCD
* 558 2-638-816-01 PLATE (TFT), DEFLECTION
* 559 2-638-817-01 SHEET, PRISM
* 560 2-638-819-01 CUSHION, LCD
* 561 2-638-820-01 GUIDE, LAMP
562 A-1201-495-A BL-003 BOARD, COMPLETE
* 563 1-869-603-11 FP-462 FLEXIBLE BOARD
564 2-696-678-01 CABINET (LOWER), VF
565 2-696-681-01 COVER, VF BASE
566 X-2148-861-1 HINGE ASSY, VF TILT
* 567 2-890-811-01 SHEET (HDMI), SHIELD
* 568 2-638-818-01 ILLUMINATOR
LCD9002 8-753-241-14 LCX076AKE-1
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)

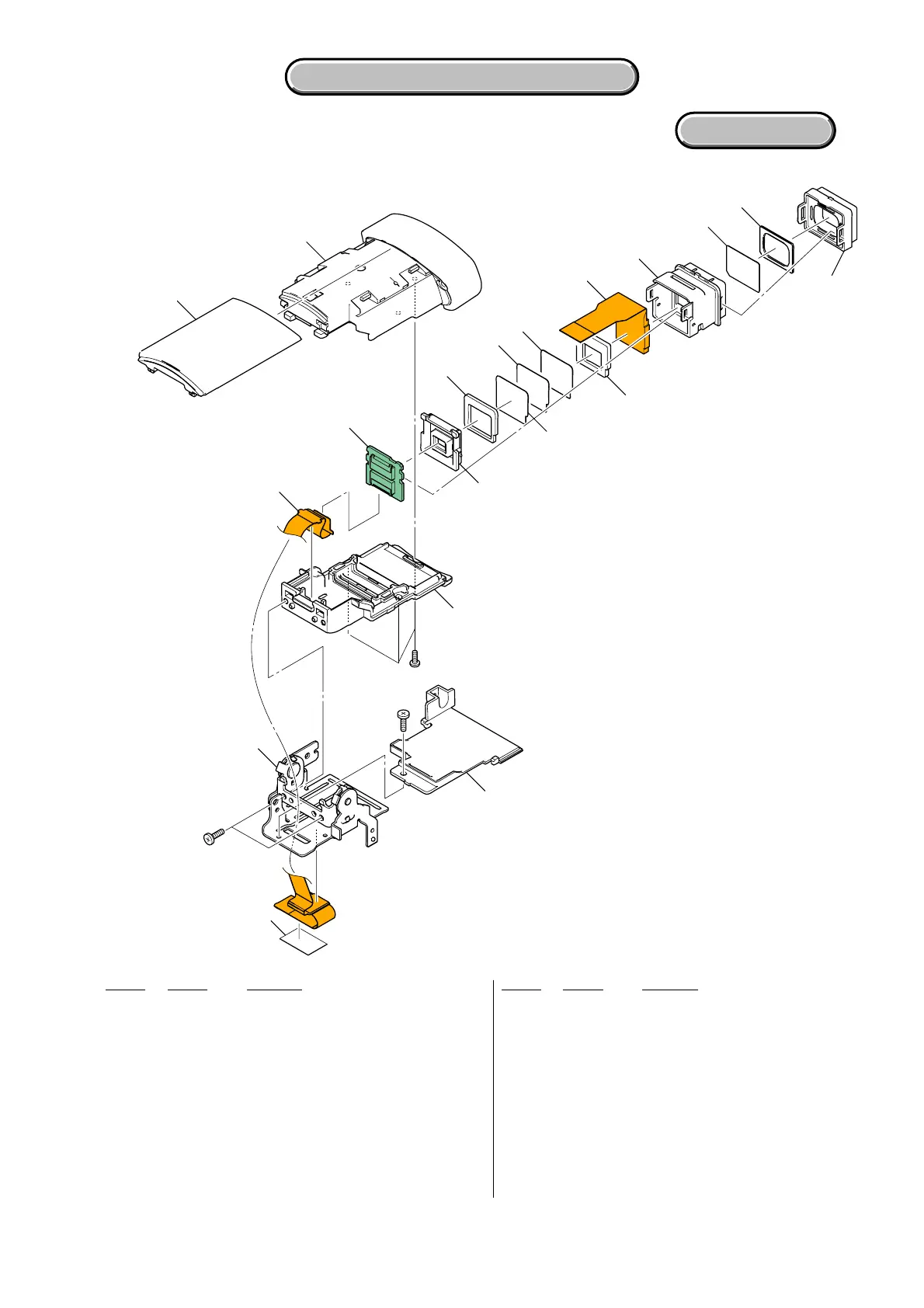

5-1-12. EVF BLOCK
HARDWARE LIST
