2-7
HDR-SR1/SR1E_L2
2-1-6. LCD PANEL BLOCK

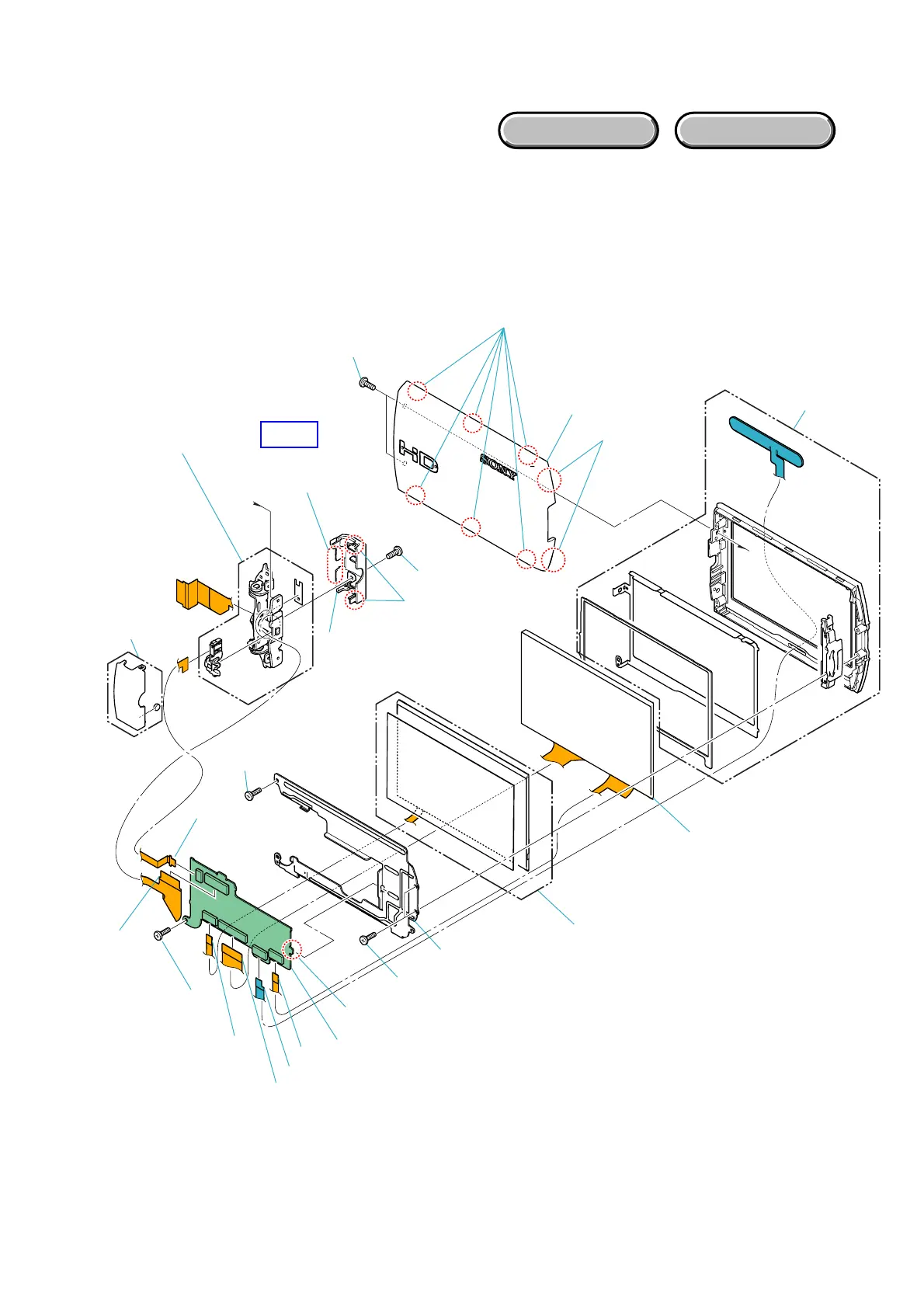

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 Hinge Block (1-1 to 1-11)
2 PD-291 Board (2-1 to 2-6)
3 LCD (3-1 to 3-5)
3-1 (#12)
1 Hinge Block
2-4
2-3
2-2
2-1
2 PD-291 Board
3-4
3 LCD
1-9
1-7 (Claw)
1-8 (Claw)
1-2 (Claw)
1-3 (Claw)
1-4
1-10 (#2)
1-1 (#2)
1-11
3-2 (#12)
3-3
2-6 (Claw)
2-5 (#12)
1-5
1-6
HELP
3-5
PD-291
