Sony HDR-SR1 - Page 71

5-7
5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2
HARDWARE LIST

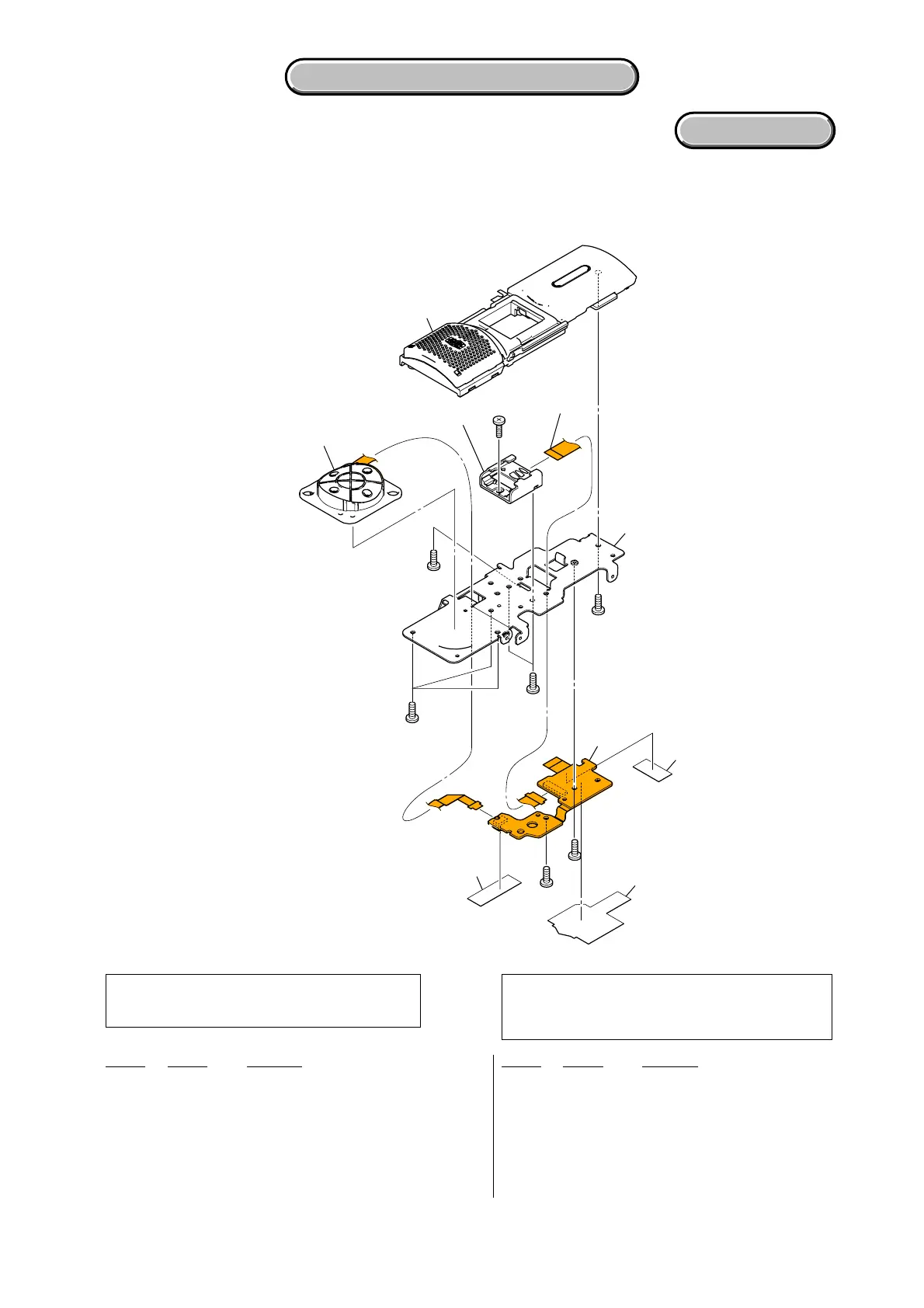

5-1-6. CABINET (T) BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-2149-630-1 CABINET T (201) ASSY
* 252 1-869-601-11 FP-460 FLEXIBLE BOARD
* 253 2-696-637-01 FRAME, CABINET (T)
254 A-1201-506-A FP-461 FLEXIBLE BOARD, COMPLETE
* 255 2-897-336-01 SHEET (HS201), SHIELD
* 256 2-887-131-01 GUARD, HS FLEXIBLE
257 CAUTION TAPE AS
CN9001 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
MIC9001 1-542-680-11 MICROPHONE UNIT
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#8 3-078-890-01 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
MIC9001
257
(9mm x 28mm)
251
CN9001
253
252
256
254
#3
#12
#14
#8
#8
#8
#14
255
CAUTION :
For the part of 257: TAPE AS (3-079-115-01), cut SHEET,
LENS FLEXIBLE (3-052-196-01) into the desired length and
use it.
注意：
TAPEAS（3-079-115-01）は，レンズフレキシート
（3-052-196-01）を切って使用。
