5. REPAIR PARTS LIST
HDR-SR1/SR1E_L2

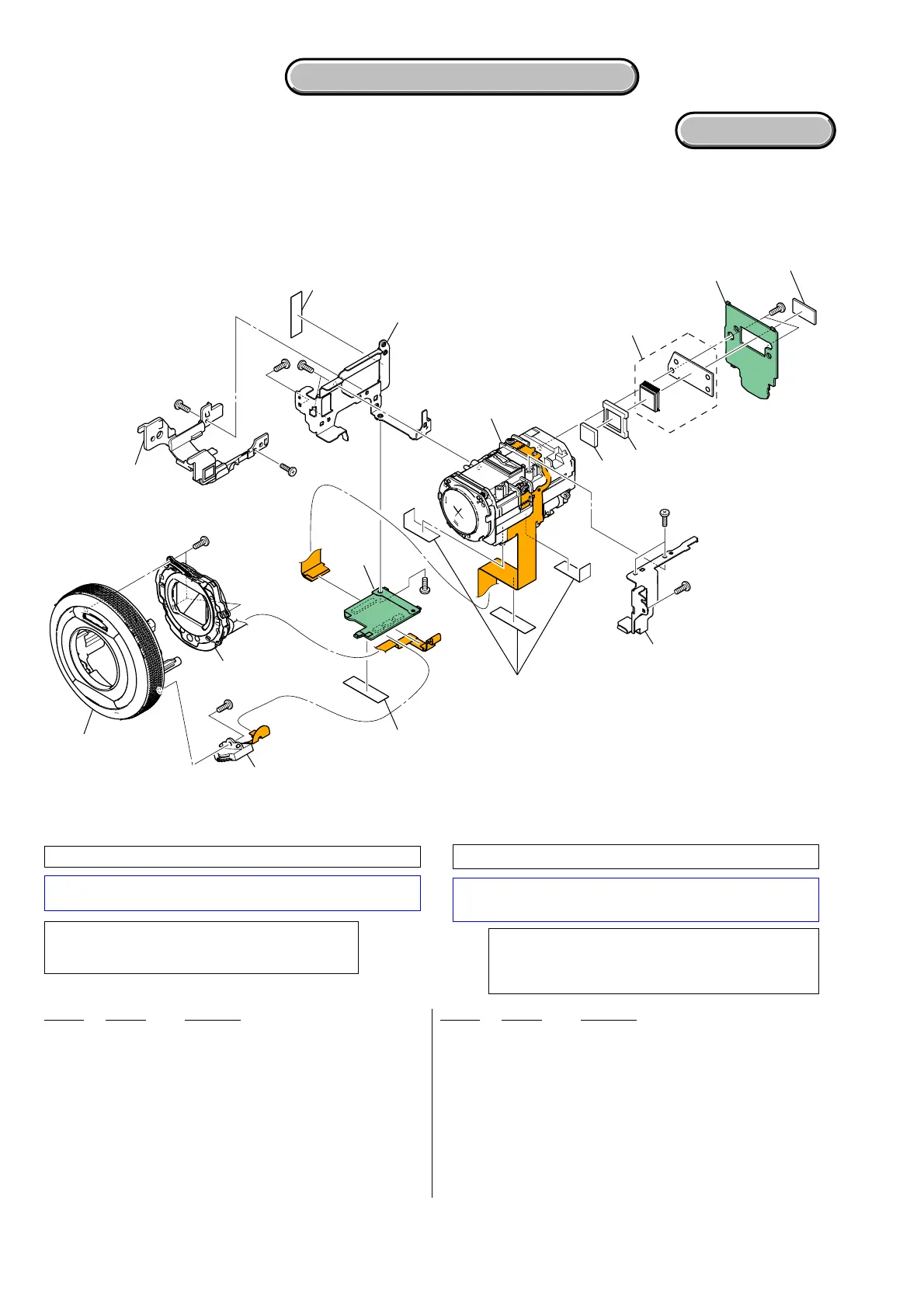

5-1-5. LENS BLOCK-2
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2148-754-1 RING ASSY, MF
202 1-787-398-11 MOTOR UNIT (LENS BARRIER)
203 2-696-319-01 COVER, LD FLEXIBLE
* 204 2-696-328-01 SHEET, CM INSULATING
* 205 2-696-323-01 FRAME (L), LENS
206 8-848-803-01 LSV-942B
207 A-1201-494-A CM-074 BOARD, COMPLETE
* 208 2-696-327-01 SHEET, CM RADIATION
209 2-629-086-01 RUBBER (871), SEAL
210 1-788-382-11 OPTICAL FILTERBLOCK (OFB-03-26)
* 211 2-696-322-01 FRAME (R), LENS
212 CAUTION TAPE AS
213 A-1214-667-A LD-226 BOARD, COMPLETE
214 1-479-747-11 SWITCH BLOCK, CONTROL (MF20000)
IC6001 A-1172-742-A CMOS BLOCK ASSY (Note1, 2)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#8 3-078-890-01 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
203
201
206
213
212
(9mm x 28mm)
212
(9mm x 28mm)
IC6001
(Note1, 2)
207
204
211
210
202
214
209
205
#12
#8
#12
#14
#14
#3
#8
#8
#12
#12
CM-074
208
CAUTION :
For the part of 212: TAPE AS (3-079-115-01), cut SHEET,
LENS FLEXIBLE (3-052-196-01) into the desired length and
use it.
注意：
TAPEAS（3-079-115-01）は，レンズフレキシート
（3-052-196-01）を切って使用。
Note 1: IC6001はマウント済CM-074基板には含まれません。
Note 2: イメージャの交換時は4-4ページの“イメージャ交換時
の注意”を必ずお読みください。
Note 2: Be sure to read “Precuations for Replacement of Imager”
on page 4-3 when changing the imager.
Note 1: IC6001 is not included in CM-074 complete board.
HARDWARE LIST
