47
Appendix
Design and specifications are subject to change without
notice.
Electrical characteristics
Sensitivity f10.0 with 59.94 Hz/f11.0 with 50.00 Hz
(at 2000 lx with 89.9% reflectivity)
Image S/N Typical 60 dB
Horizontal resolution HD: 1000 TV lines (at center of screen),
5% or higher modulation
Geometric distortion Negligible (not including lens distortion)
Optical system specifications
Spectral system F1.4 prism
Built-in filters Color temperature conversion filters
(HSC300RF/HSC300R)
A: Cross filter
B: 3200K (clear)
C: 4300K
D: 6300K
ND filters
1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
Input/output connectors
CCU Optical fiber/triax connector (1)
LENS 12-pin (1)
VF 20-pin (1)
MIC 1 IN XLR 3-pin, female (1)
AUDIO IN CH1, CH2 XLR 3-pin, female (1 each)
For MIC: –60 dBu
(variable up to –20 dBu by menu or
HSCU300RF/HSCU300R operation),
balanced
For LINE: 0 dBu, balanced
INTERCOM XLR 5-pin, female (1)
EARPHONE Stereo minijack (1)
DC IN XLR 4-pin (1), 10.5 V to 17 V DC
DC OUT 4-pin (1), 10.5 V to 17 V DC, Max. 0.5 A
(It may be limited depending on the load
and input conditions.)
2-pin (1), 10.5 V to 17 V DC, Max. 2.5 A
(It may be limited depending on the load
and input conditions.)
SDI BNC type (1)
TEST OUT BNC type (1)
PROMPTER/
GENLOCK/RET IN
BNC type (1), 1 Vp-p, 75 Ω
RET CTRL 6-pin (1)
REMOTE 8-pin (1)
TRACKER 10-pin (1)
USB USB 2.0 Type A 4-pin (1)
(for connecting USB drive)
Supplied accessories
Operation guide (1)
Operation manual (CD-ROM) (1)
Warranty (1) (HSC100RF/HSC100R)
Cable clamp belt (1 set)
Switch label (1)
Optional accessories
HD Electronic Viewfinder
HDVF-200 (2-type, monochrome)
HDVF-550 (5-type, monochrome)
HDVF-C35W (3.5-type, color)
HDVF-C550W (5-type, color)
HDVF-C730W (6.5-type, color)
Large Lens Adapter
HDLA1500 (large lens + large viewfinder)
HDLA1505 (large lens + small viewfinder)
Large Viewfinder Adapter
HDLA1507 (small lens + large viewfinder)
A-1128-405-A Camera Hanger
CAC-12 Microphone Holder
CAC-6 Return Video Selector
VCT-14 Tripod Adapter
USB drive
A-8286-346-A Low-repulsion Shoulder Pad
A-6772-374-C Shoulder Strap
HZC-PSF3 Camera Operating Software
Related equipment
Camera Control Unit
HSCU300RF, HSCU300R, HSCU-300, HXCU-100
MSU-1000/1500 Master Setup Unit
RCP-1000 series Remote Control Panel
RM-B170/B750 Remote Control Unit

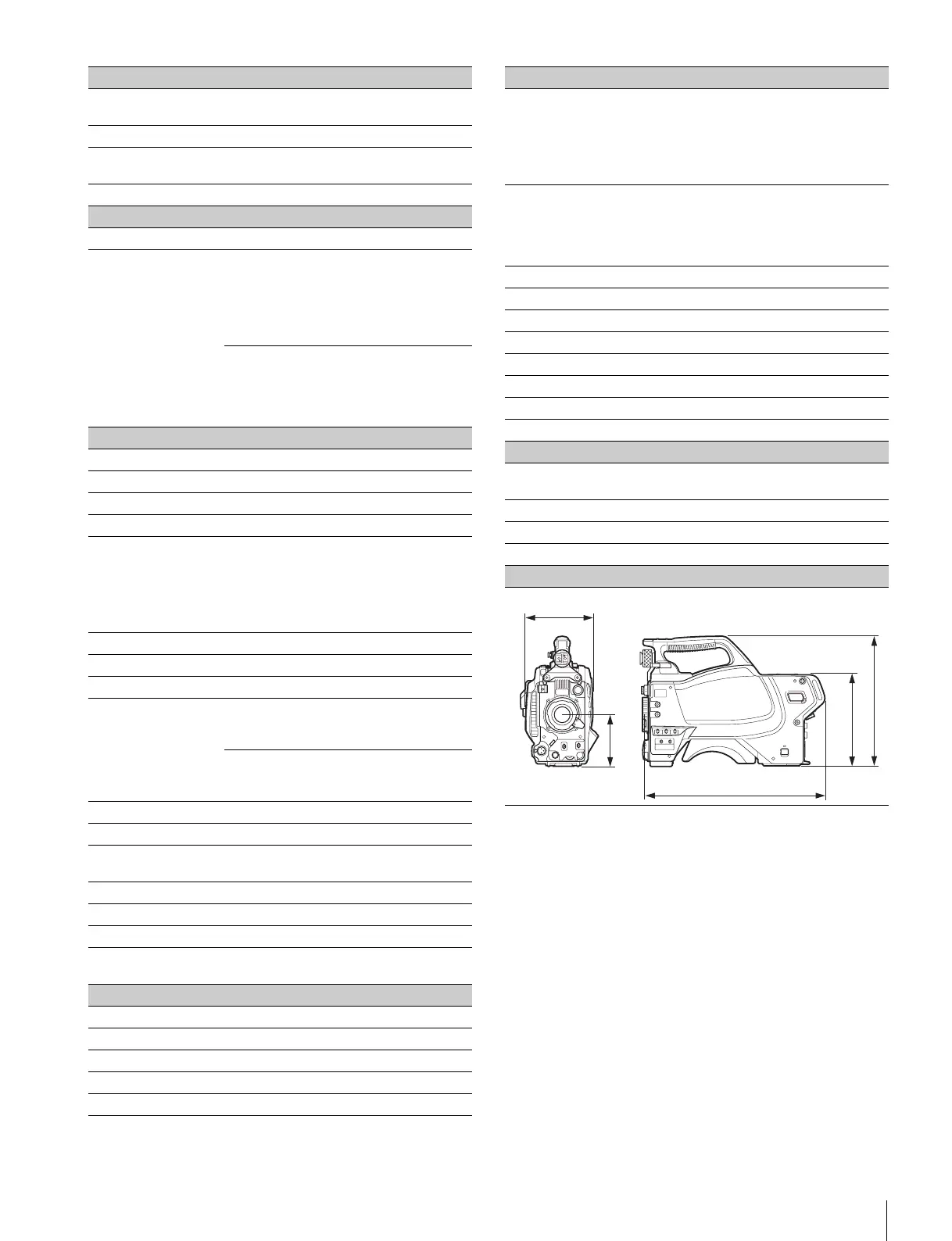

Dimensions
Unit: mm (inches)
136 (5
3
/
8
)
363 (14
3
/
8
)
105 (4
1
/
4
)
184 (7
1
/
4
)
263 (10
3
/
8
)
