Sony HT-M22 - Rear Panel Connections; Connection Jack Identification

9
GB
A DIGITAL INPUT/OUTPUT section
B SPEAKERS section (page 17)
C AUDIO INPUT section
D TUNER section

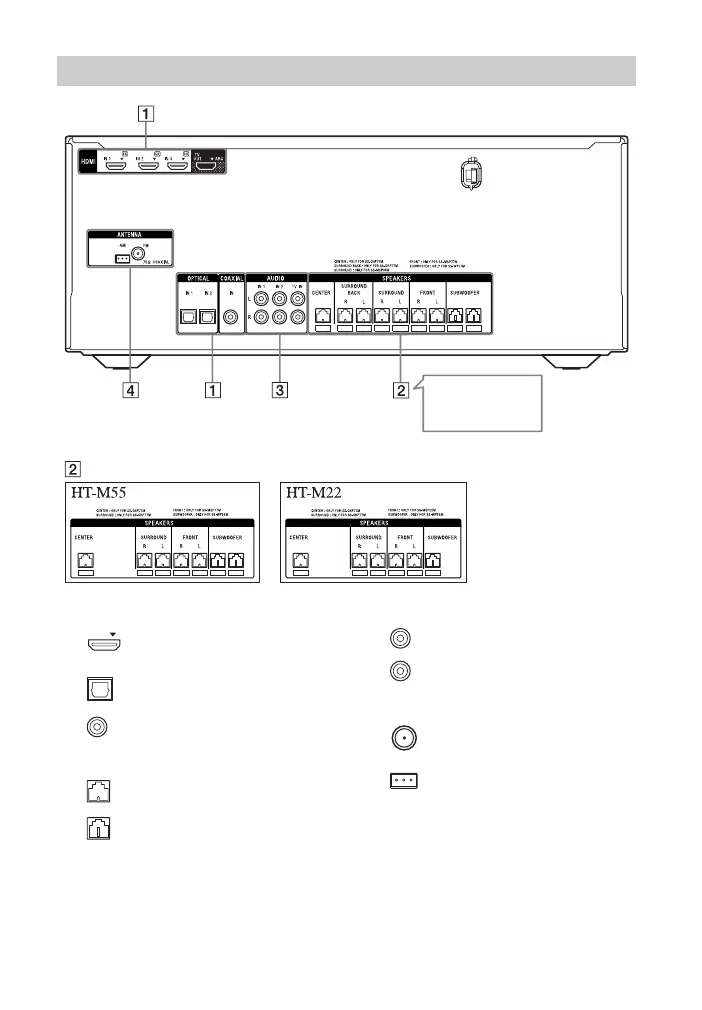

Rear panel
2 is different
depending on the
model. See below.
HDMI IN/OUT jacks
(page 18, 21)
OPTICAL IN jacks
(page 18, 22)
COAXIAL IN jack (page 22)
Speaker jacks
Subwoofer jack(s)
AUDIO IN jacks
(page 22)
FM ANTENNA jack
(page 23)
AM ANTENNA terminal
(page 23)
Red (R)
White (L)
