ICD-MS525

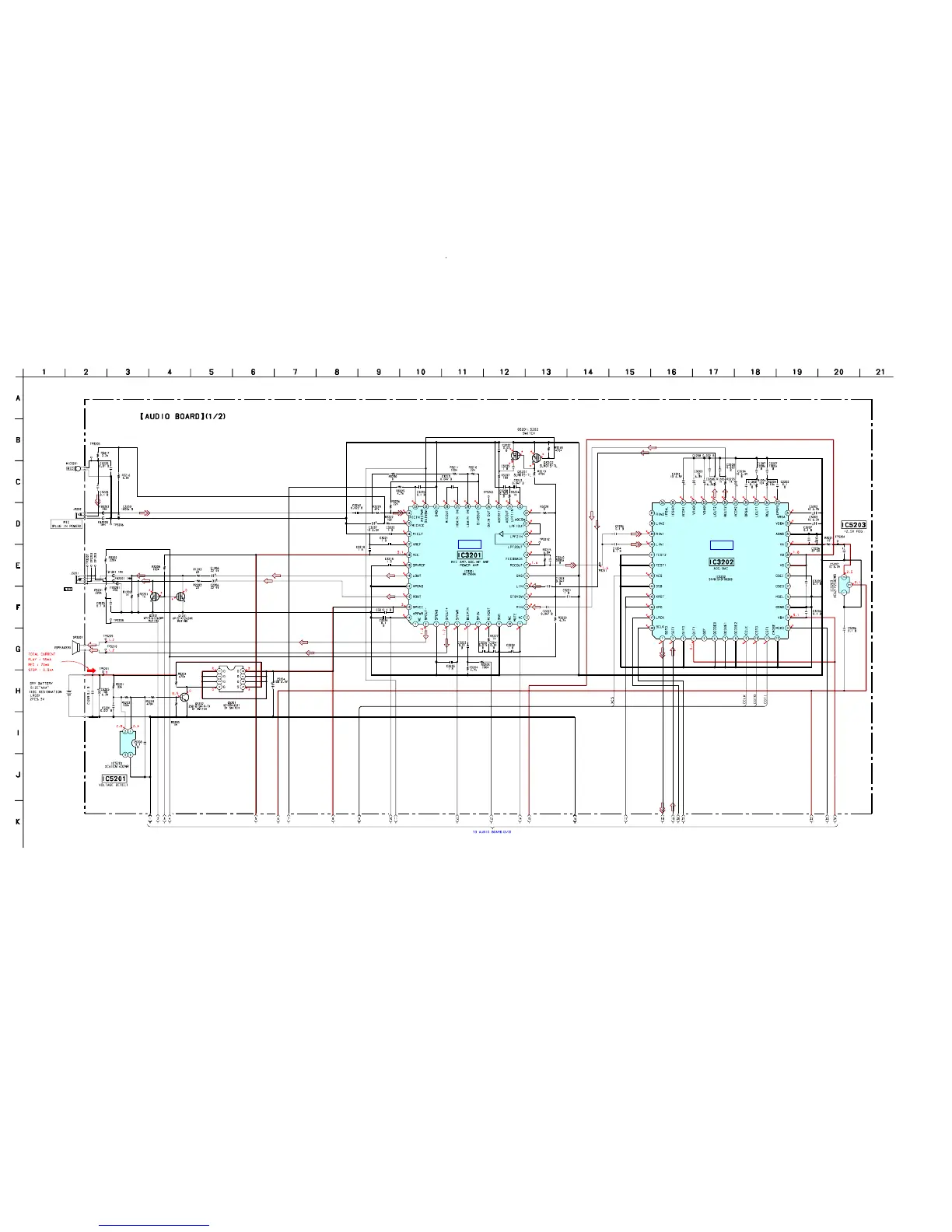

4-3. Schematic Diagram – AUDIO Board (1/2) –
• Refer to page 23, 24 for IC Block Diagrams.
