Sony ICD-MS525 - Exploded Views; 5-1. Front Cabinet Section

SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
30
ICD-MS525
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

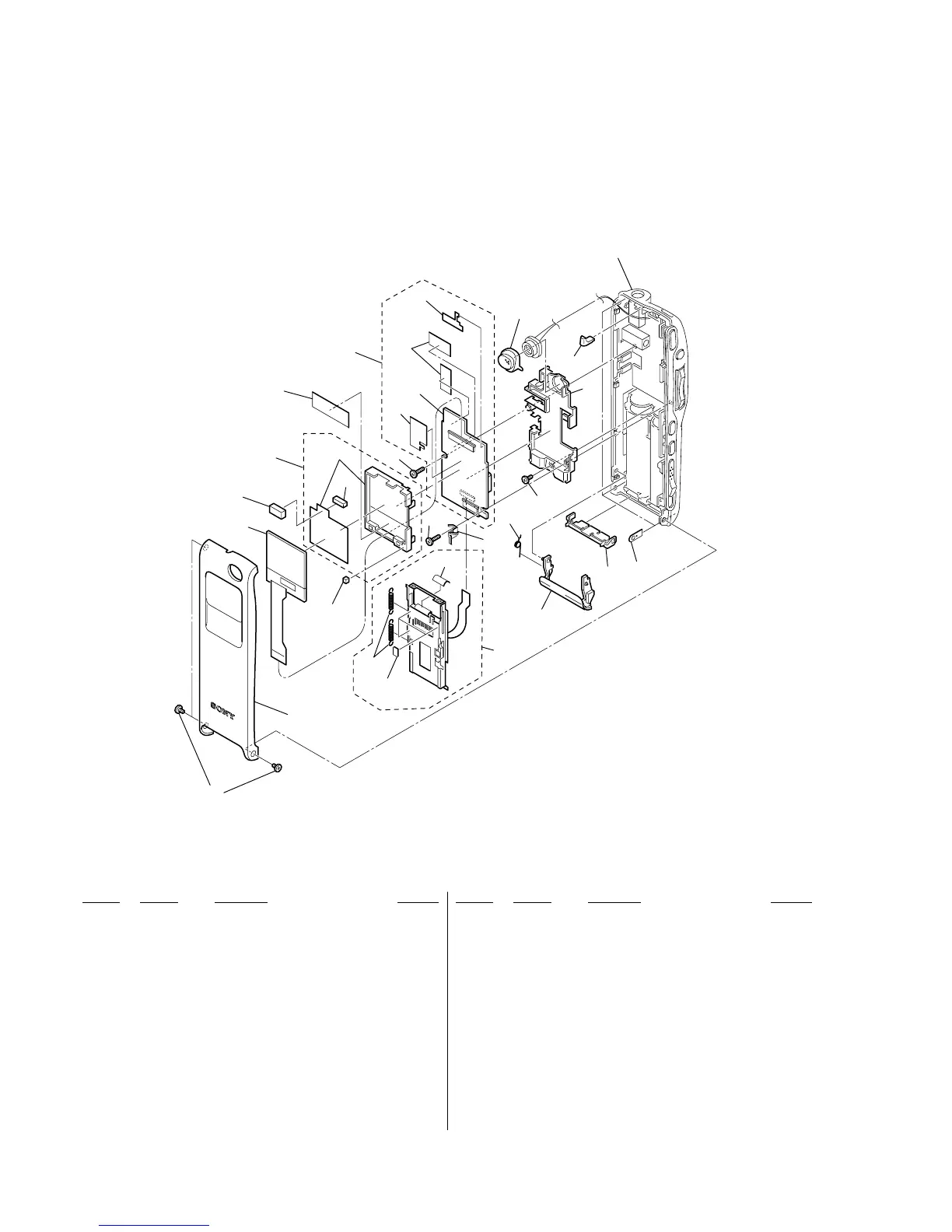

5-1. FRONT CABINET SECTION
1
2
3
4
21
25
26
5
9
6
7
10
18
24
23
22
19
17
16
14
15
5
13
11
12
not
supplied
not
supplied
LCD1
20
Rear Cabinet section
1 3-234-449-15 SCREW (M1.4)
2 A-1060-842-A FRONT BLOCK ASSY
3 3-240-261-01 SHEET (BLIND)
4 3-236-038-01 SHEET (LCD), ADHESIVE
5 3-318-203-21 SCREW (B1.7X8), TAPPING
* 6 A-3021-827-A MAIN BOARD, COMPLETE
7 3-239-165-01 SHEET (JACK), INSULATING
9 3-238-736-01 PAPER (E), SHIELD
10 3-236-043-01 ORNAMENT (MIC)
11 3-236-021-01 WINDOW (LED)
12 3-236-033-01 CHASSIS (PWB)
13 3-318-382-02 SCREW (1.7), TAPPING
14 3-236-456-01 BRACKET
15 3-236-475-01 COVER (BATTERY TERMINAL)
16 3-236-030-01 LID (M)
17 3-236-459-01 SPRING (LID)
18 A-3174-172-A MECH BLOCK ASSY, EJECT
19 3-236-480-01 SPRING (SLIDER EJ), TENSION
20 3-239-897-01 CUSHION (SD)
21 3-240-324-01 CUSHION (EL)
22 3-241-209-01 PLATE, GROUND
23 3-239-067-01 SHEET (EJECT)
24 3-239-070-01 SPACER (EJECT)
25 X-3381-982-1 EL SUB ASSY
26 3-239-894-01 SHEET (SD-A)
LCD1 1-477-070-11 INDICATOR UNIT, LIQUID CRYSTAL
