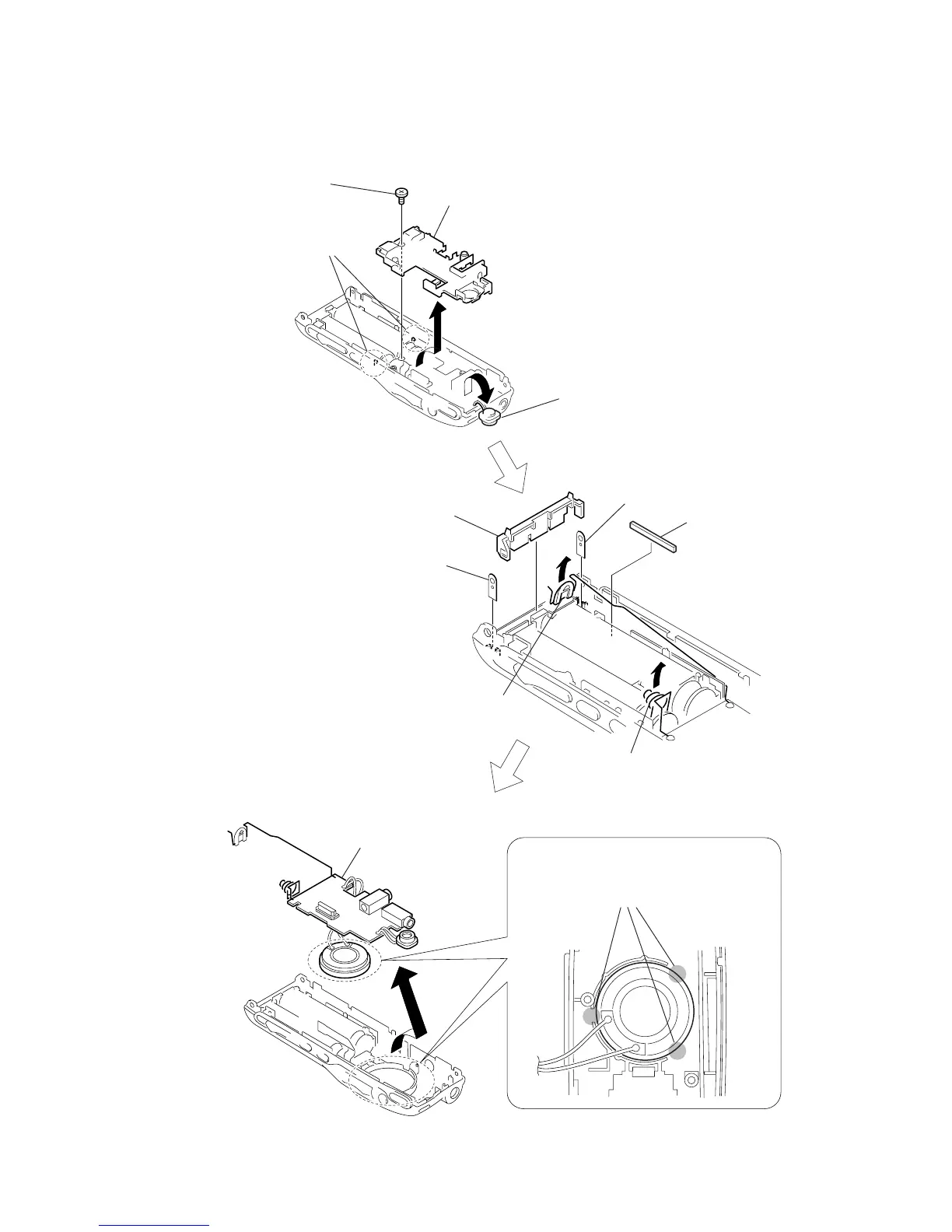

2-4. SPEAKER ASSY (SP3201), MICROPHONE UNIT (MIC3201), AUDIO BOARD-1
3 two claws
9 Pull up the Battery terminal (-).
8 Pull up the Cap (terminal).
7 insulating sheet
5 bracket
5 bracket
6 cover (battery terminal)
4 chassis (PWB)
1 screw (B 1.7 × 4)
2 Turn over the Microphone unit (MIC3201
)
in the direction of the arrow.
q; AUDIO board , speaker assy (SP3201),
microphone unit (MIC3201)
Remove soldering from the three points of
speaker assy (SP3201).
