Sony ICD-MS525 - AUDIO Board-2; SWITCH Board

8
ICD-MS525

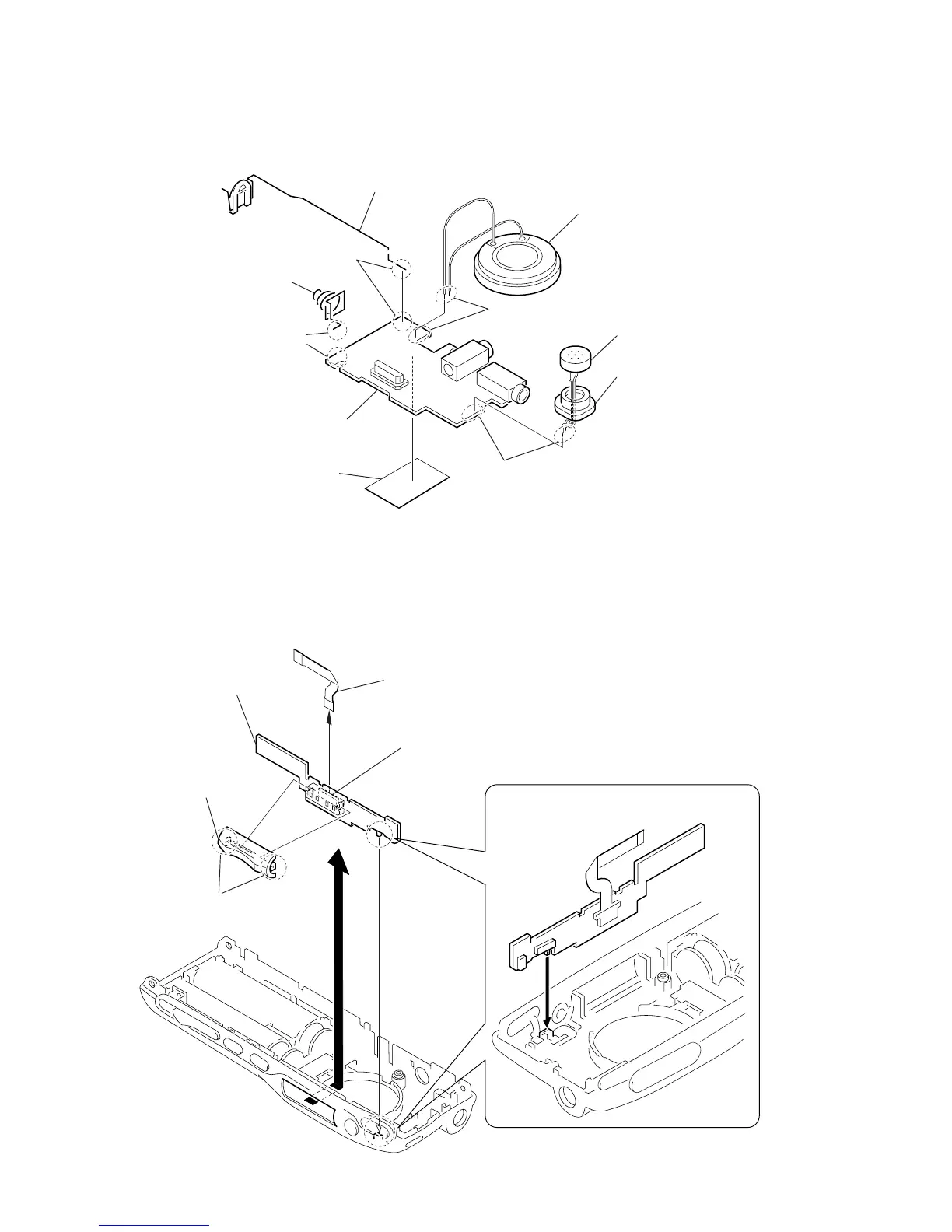

2-5. SPEAKER ASSY (SP3201), MICROPHONE UNIT (MIC3201), AUDIO BOARD-2
2-6. SWITCH BOARD
q; i nsulating sheet (SPK)
qa AUDIO board
1 Remove the soldering.
3 Remove the soldering.
4 battery Terminal (-)
2 terminal (+) block assy
9 speaker assy (SP3201)
7 microphone unit (MIC3201
)
6 microphone cushion
5 Remove soldering from the two points.
8 Remove soldering from the two points.
5 button (5D)
6 SWITCH board
3 connection flexible board
4 two claws
2 connector
(CN901) (8 core)
To attach, align the switch position as shown.
