Sony ICD-MS525 - Disassembly Procedures

4
ICD-MS525
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

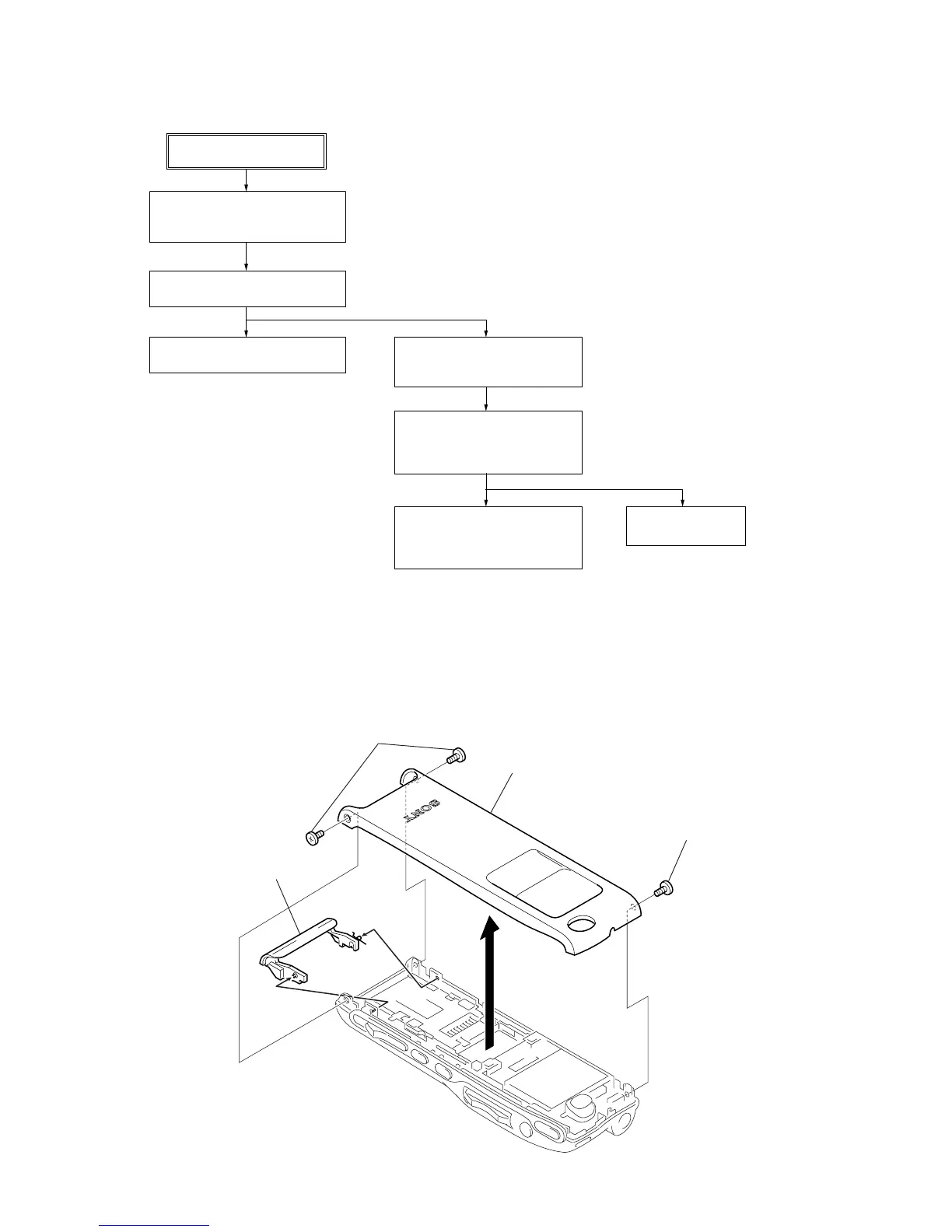

2-1. FRONT CABINET SECTION, LID (M) SECTION
Note : Disassemble the unit in the order as shown below.
3 front cabinet section
4 lid (M), spring (Lid)
2 two screws (M 1.4)
1 screw (M 1.4
)
FRONT CABINET SECTION,
LID (M) SECTION
(Page 4)
SET
LCD BLOCK ASSY
(Page 5)
LIQUID CRYSTAL INDICATOR UNIT
(Page 9)
EJECT MECHA BLOCK ASSY,
MAIN BOARD
(Page 6)
SPEAKER ASSY (SP3201),
MICROPHONE UNIT (MIC3201),
AUDIO BOARD-1
(Page 7)
SWITCH BOARD
(Page 8)
SPEAKER ASSY (SP3201),
MICROPHONE UNIT (MIC3201),
AUDIO BOARD-2
(Page 8)
