Sony ICF-1000L - Section 2 Disassembly; 2-2. Power Board

– 4 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

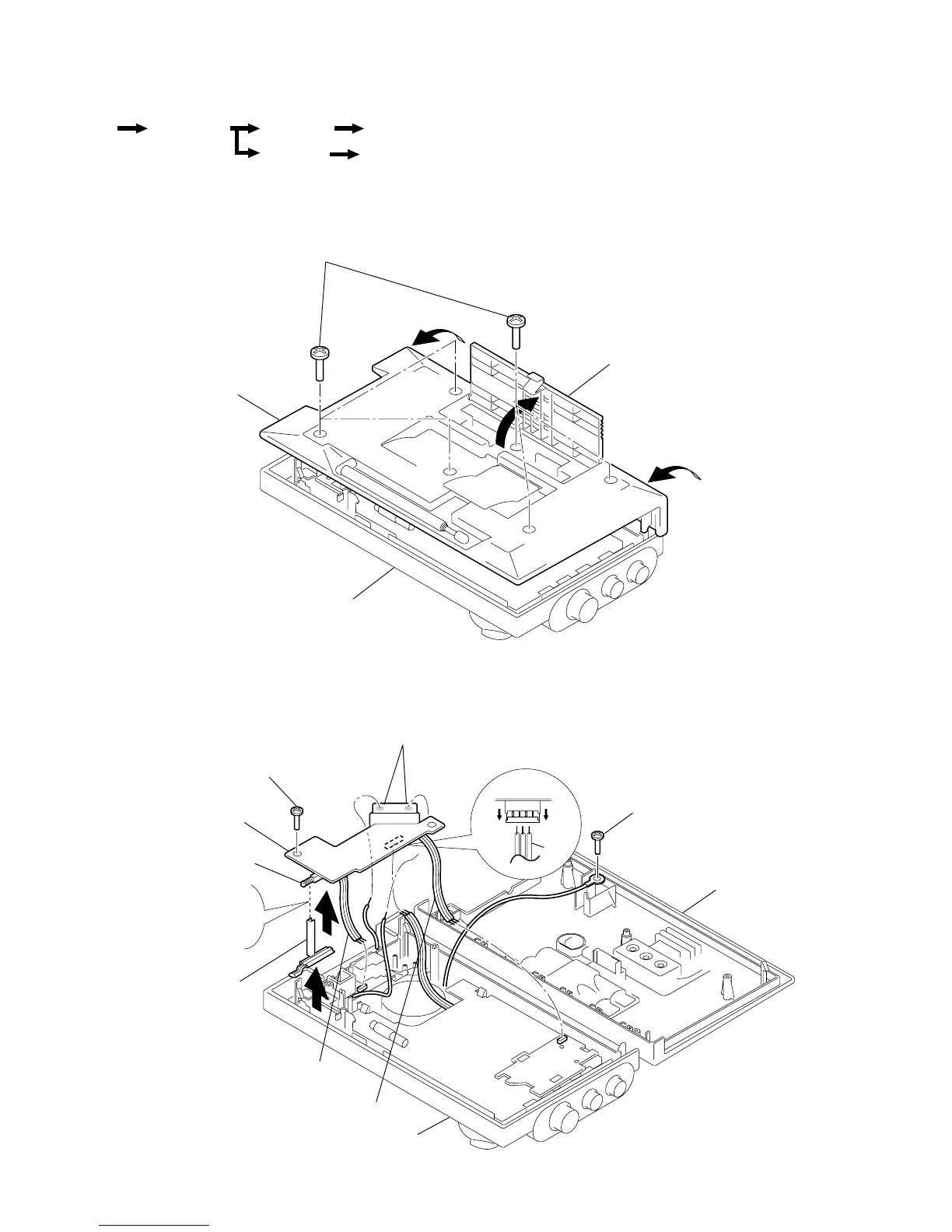

2-1. CABINET (REAR)
2-2. POWER BOARD
r
The equipment can be remo ved using the f ollo wing pr ocedure .
2 Screws (+BTP 3x20)
1
3
3
Cabinet (front)
Cabinet (rear)
Lid, Battery cas
e
3 Screws (+BTP 2.6x10)
1 Screw (+BTP 2.6x8)
2 Remove solder
4 AC IN board (CN405)
5 AMP board (CN601)
7
6
Cabinet (front)
Blue
Power board
8 Button (power)
CN401
Operation switch (S401)
Cabinet (rear)
z
Cautions during assembly
Align the operation
switch (S401) with the
groove of button (power).
AMP board
Cabinet (rear)
Power board AC IN board
Main board, Key board
Set
